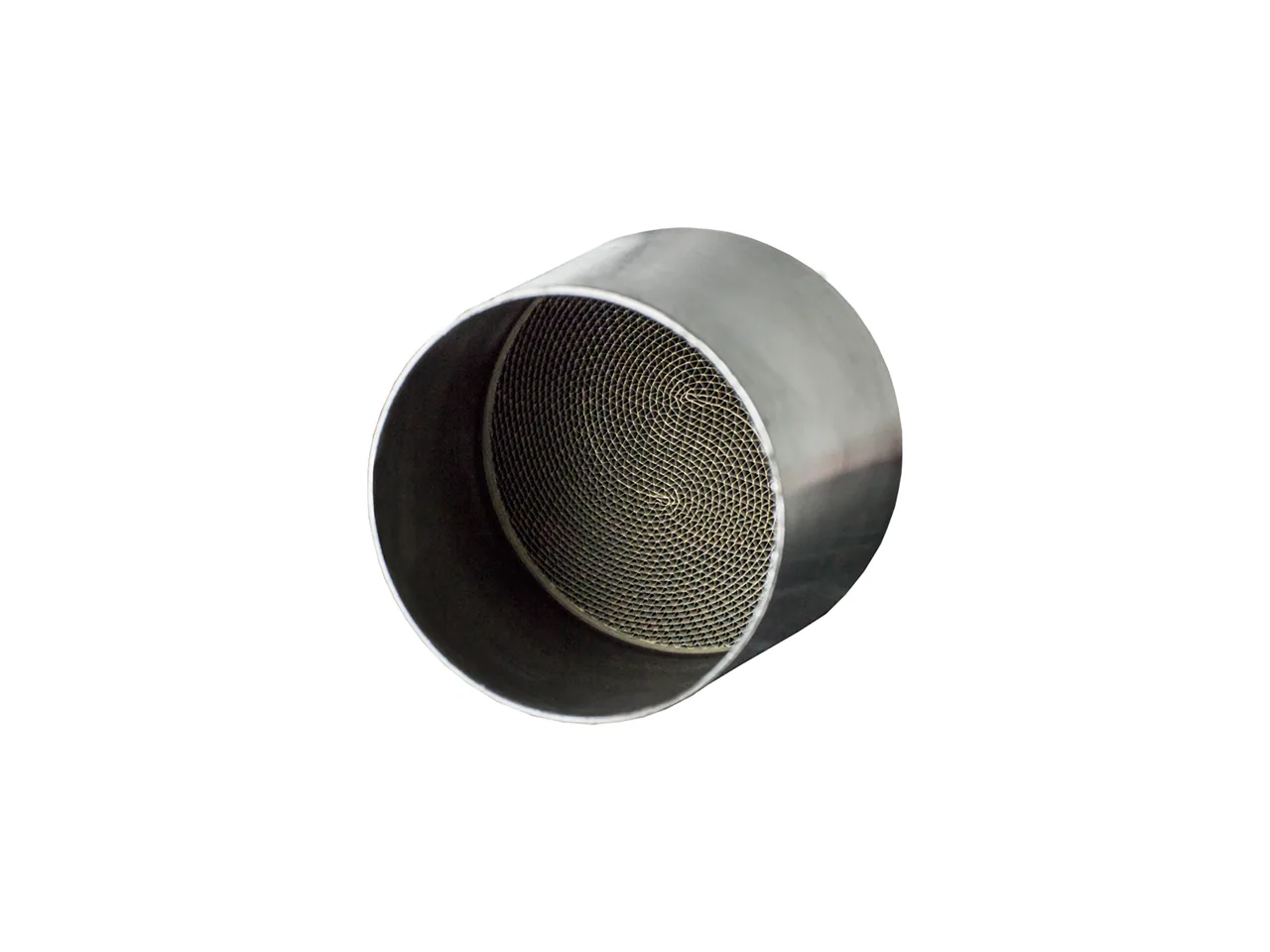

Do you need an individual sports catalyst for your vehicle? This product allows you to select the connection diameters of your sports catalyst. The substrates we use are manufactured exclusively for Bull-X Exhausts by HJS. As a result, they are a top-quality product both in terms of quality and power delivery, and should not be missing from any vehicle.

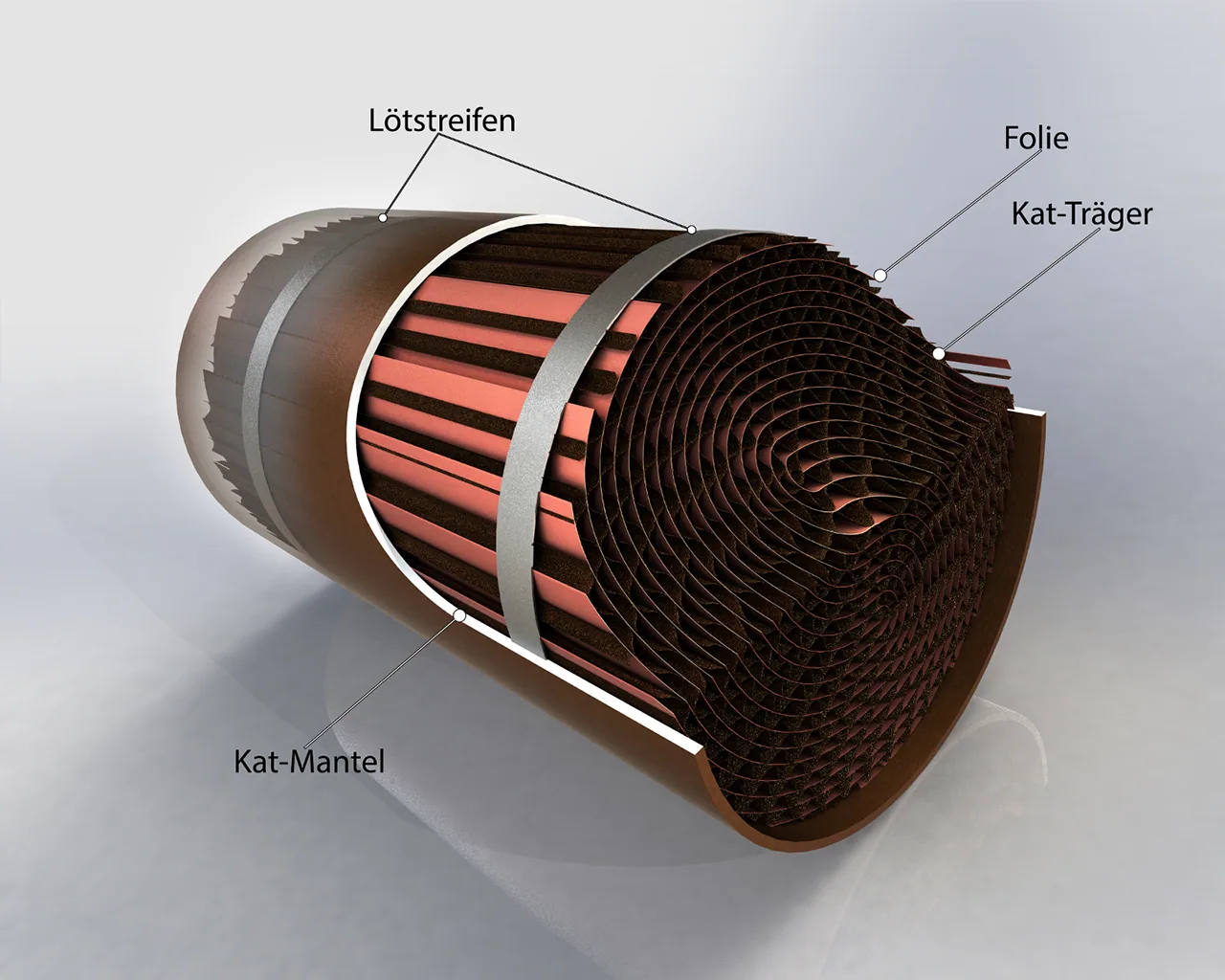

The washcoat used is EOBD-compatible and loaded with palladium and rhodium. The substrate material of the Bull-X catalysts is always soldered to the housing at two points to ensure optimum stability. In the “HF” design used, which features two winding centres, 10% of the cells are connected to one another. The advantage is that telescoping can no longer occur.
To meet our standards, Bull-X catalysts also feature another, previously unique characteristic: instead of being secured to the housing with one soldering strip, as with conventional HJS catalysts, the substrate material is secured with two soldering strips. This ensures greater stability and durability.
The construction of our Bull-X catalysts is as follows:
- Structure: metal substrate in “HF” design
- Cell count: 200cpsi
- Open area: 75–85%
- Wall thickness: 0.05–0.08 mm
- Durability: very high
- Temperature resistance: max. 1050°C
- Nominal volume: 1110 ml
- Flow rate: 120 / 110
- Mass: 91.73%
- Weight: 1191g
- Overall length: max. 225mm
- Foil thickness: 0,65my
- Pressure loss: 48,9mbar

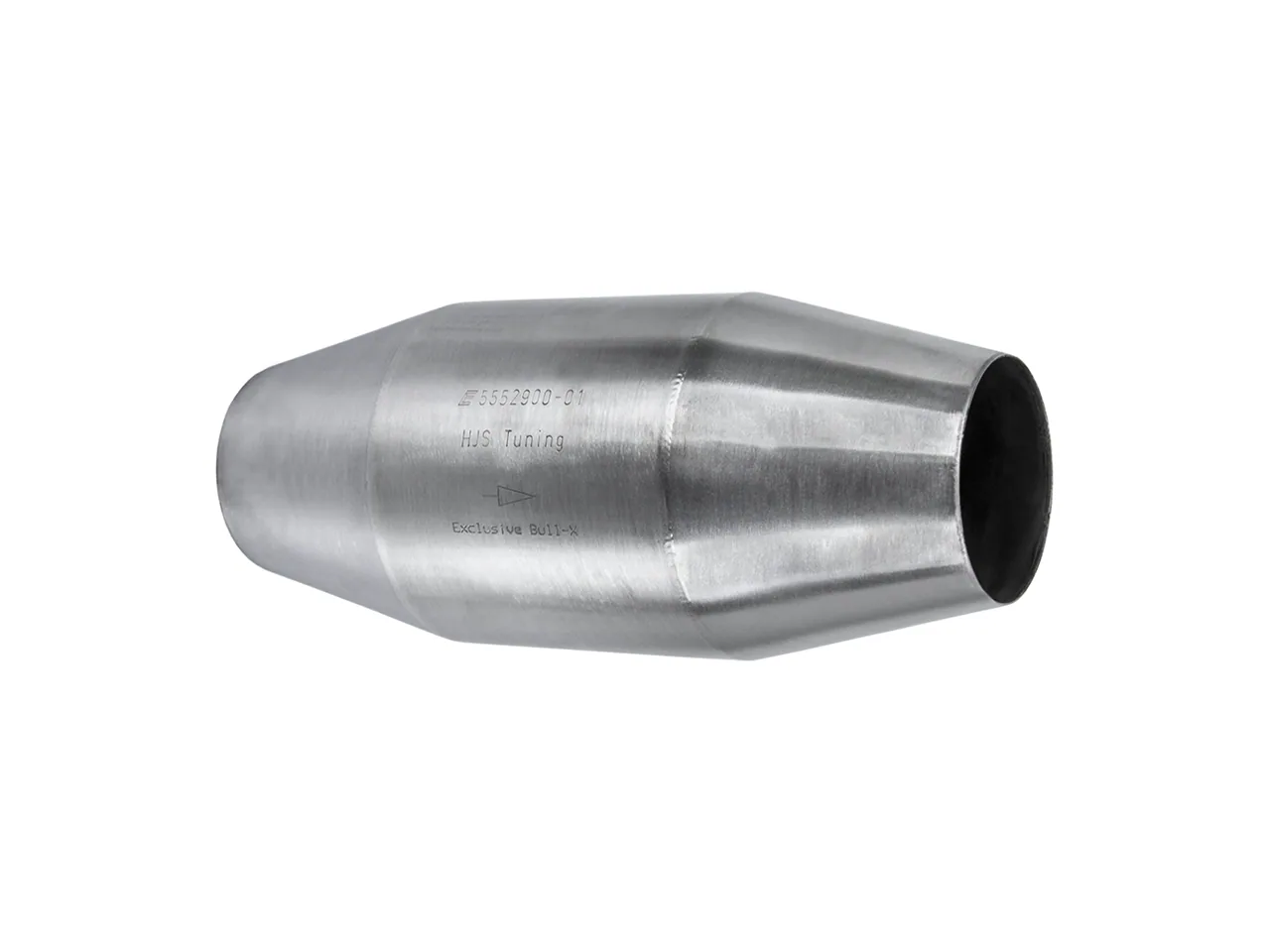

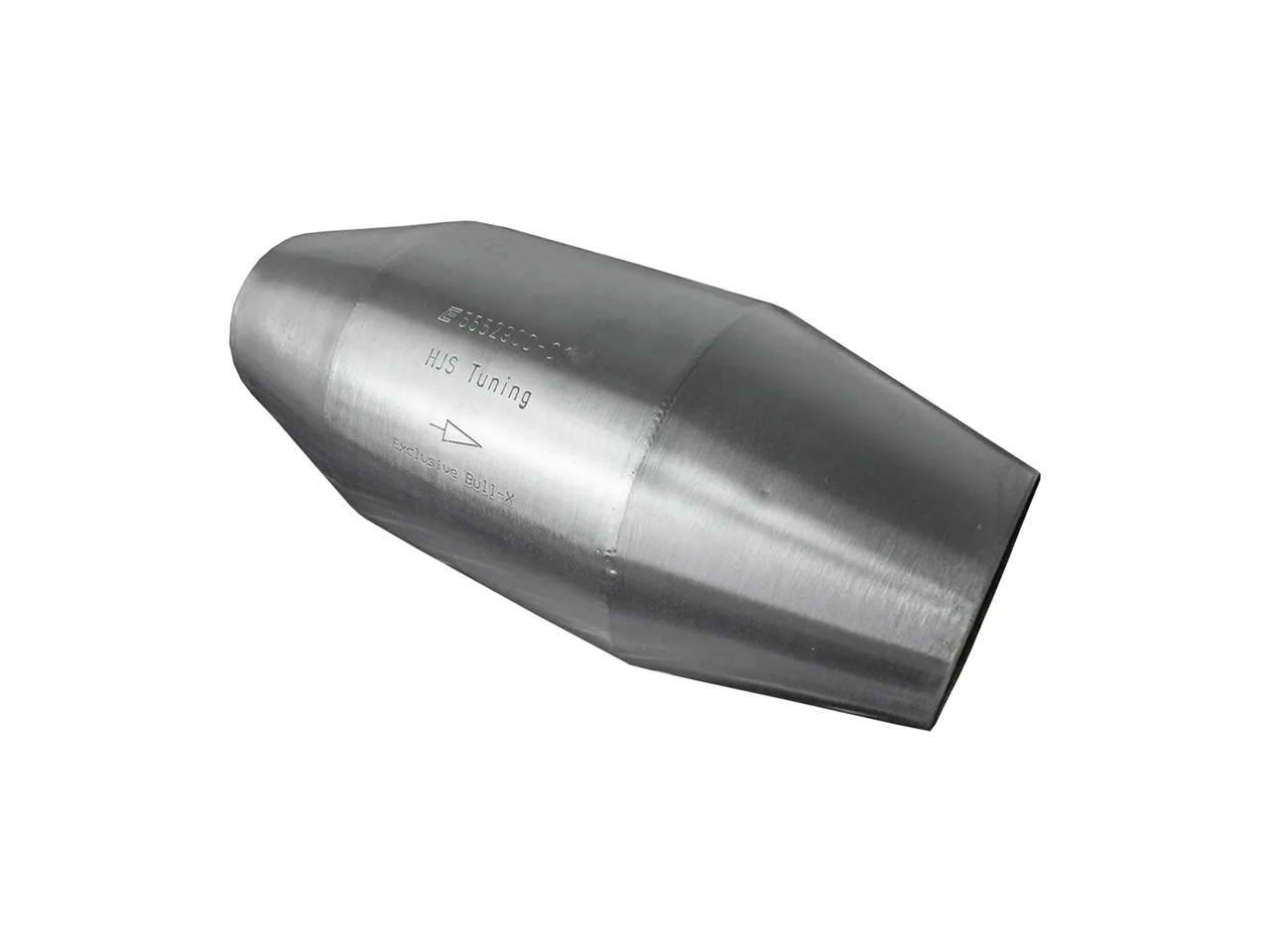

These catalysts are available with connection diameters of 63mm and 76mm, a length of 282mm and an outside diameter of 121mm.
Suitable for: universal use (not vehicle-specific).
Approval
The manufacturer does not state an ECE, ABE or Teilegutachten approval for this part.
