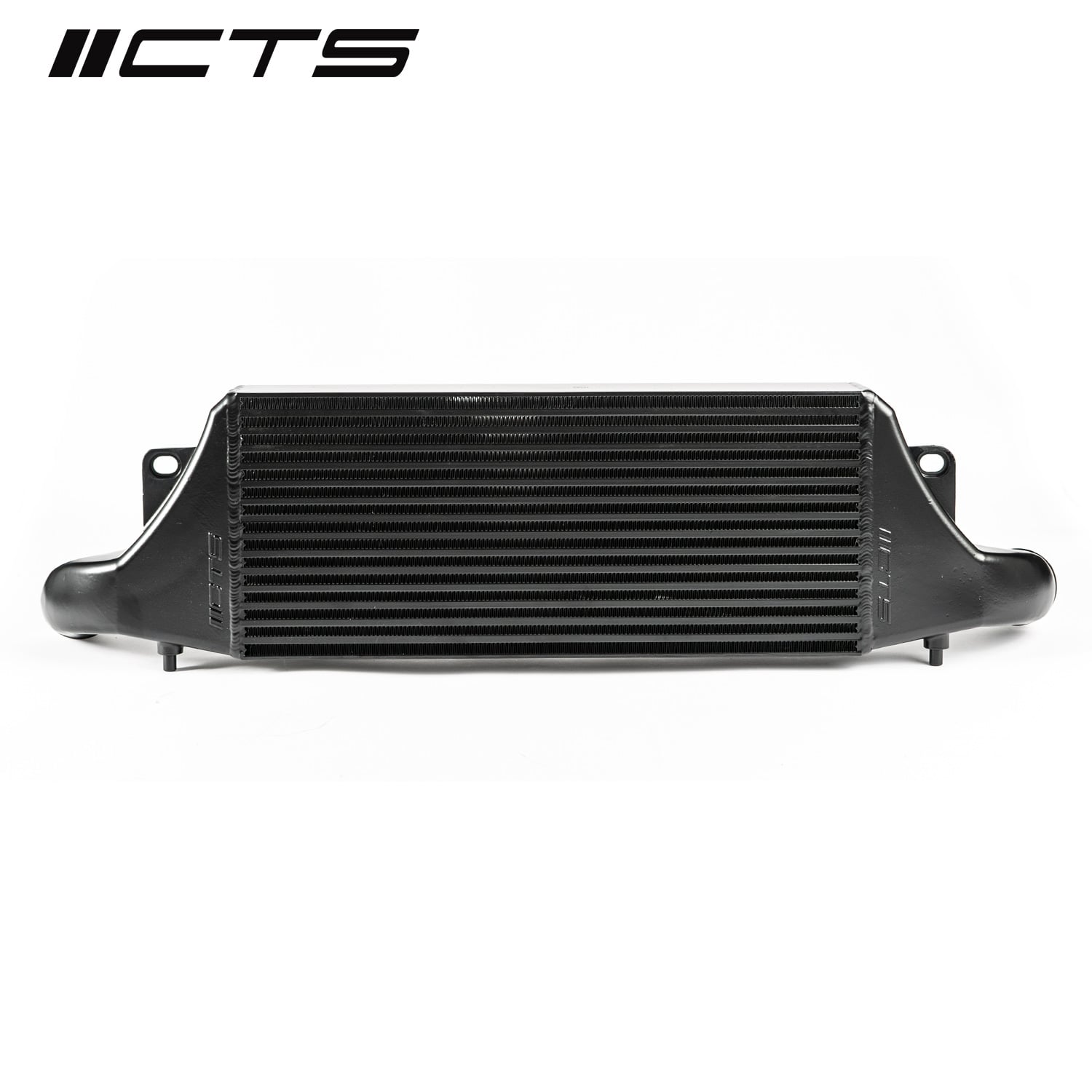

CTS Turbo intercooler for Audi RS3 8V/8Y and TTRS 8S

CTS Turbo intercooler for Audi RS3 8V/8Y and TTRS 8S 2.5T EVO is a direct replacement for the factory intercooler, now available with a new black finish.

The original intercooler offers modest performance, so this platform benefits considerably from its upgrade. The improvement is noticeable both in vehicles running standard boost pressure and especially in vehicles with software tuning.

The core of this direct-fit intercooler is 42% larger than the standard unit and undergoes strict quality control and pressure testing up to 50 psi. The cast aluminium end tanks connect seamlessly to the factory hoses, providing a tight, leak-free fit while allowing greater power and torque.

Standard FMIC size: 6.3″ height × 25.3″ width × 3.2″ thickness = 510.05 in³

CTS FMIC size: 10.4″ height × 24″ width × 3.5″ thickness = 873.60 in³

Features:

• Efficient bar-and-plate construction
• Internal air-guiding fins ensure even flow and reduce pressure drop
• Low pressure drop and high airflow
• Developed using the latest 3D scanning technology
• Complete replacement for the restrictive factory unit
• Designed for power levels above 700 hp
• Cast aluminium end tanks provide improved flow
• Fully compatible with Audi’s adaptive cruise control; no additional spacers or adapters are required
• Available exclusively with a new, attractive and durable black finish

ROW (rest of world) vehicles require the use of a North American-specification crash bar or removal of the crash bar (8V5-807-109-D).

Weight: 18.14 kg

Suitable for: Audi RS3 III (8V) / IV (8Y), Audi Ttrs II (8S).

Compatible vehicles (manufacturer data)

Before ordering, check that the product matches your vehicle (model, year and engine). If in doubt, write to us — we will check for you.
