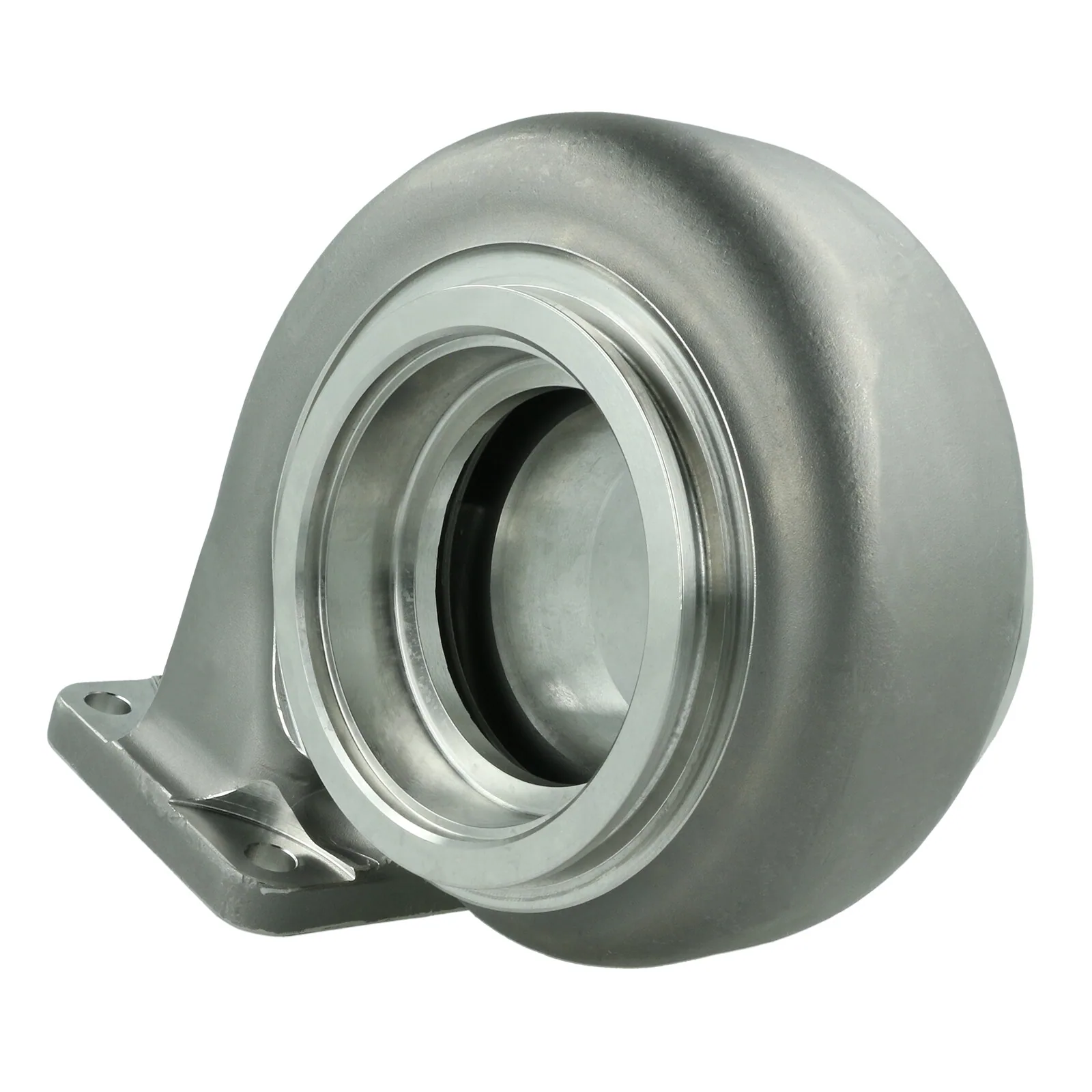

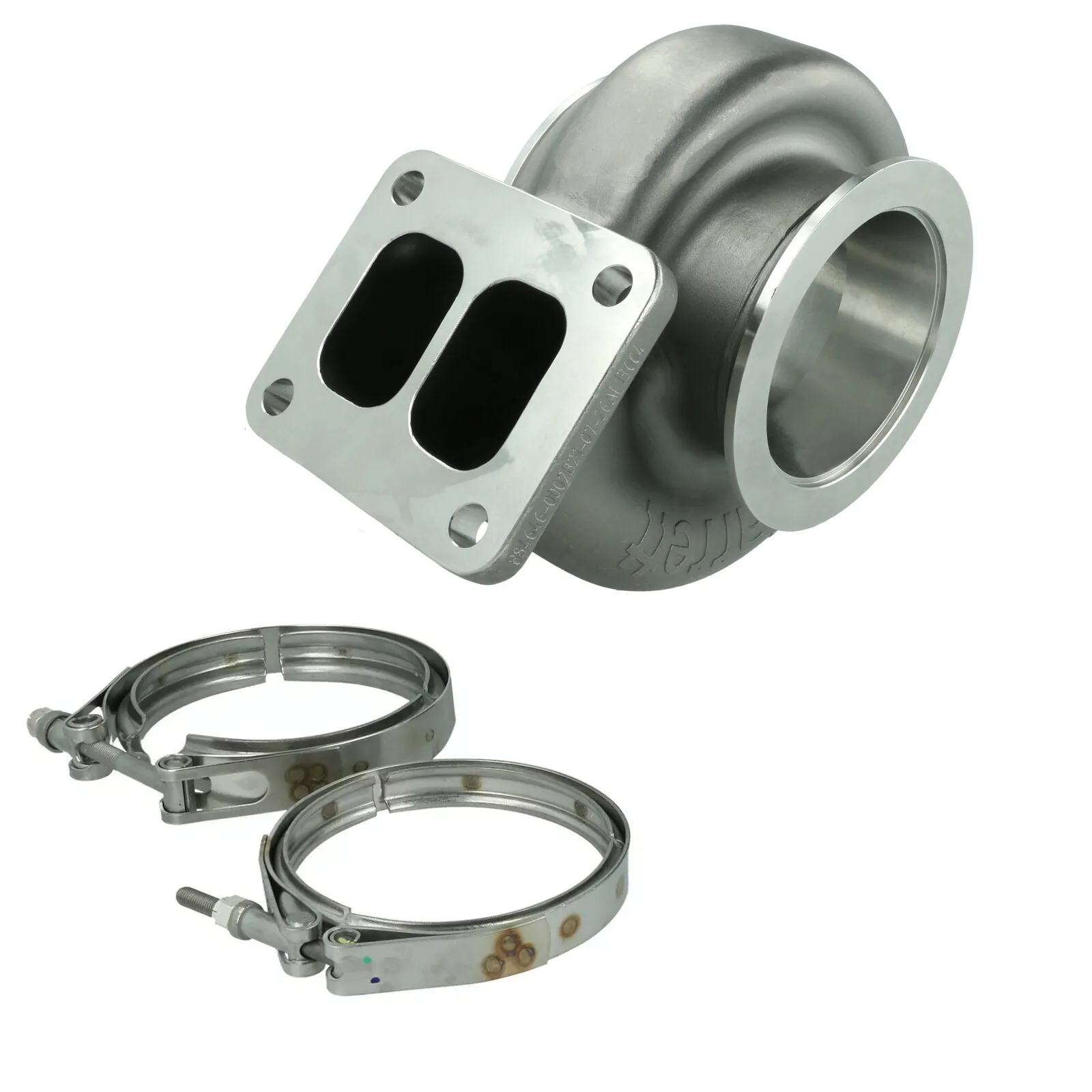

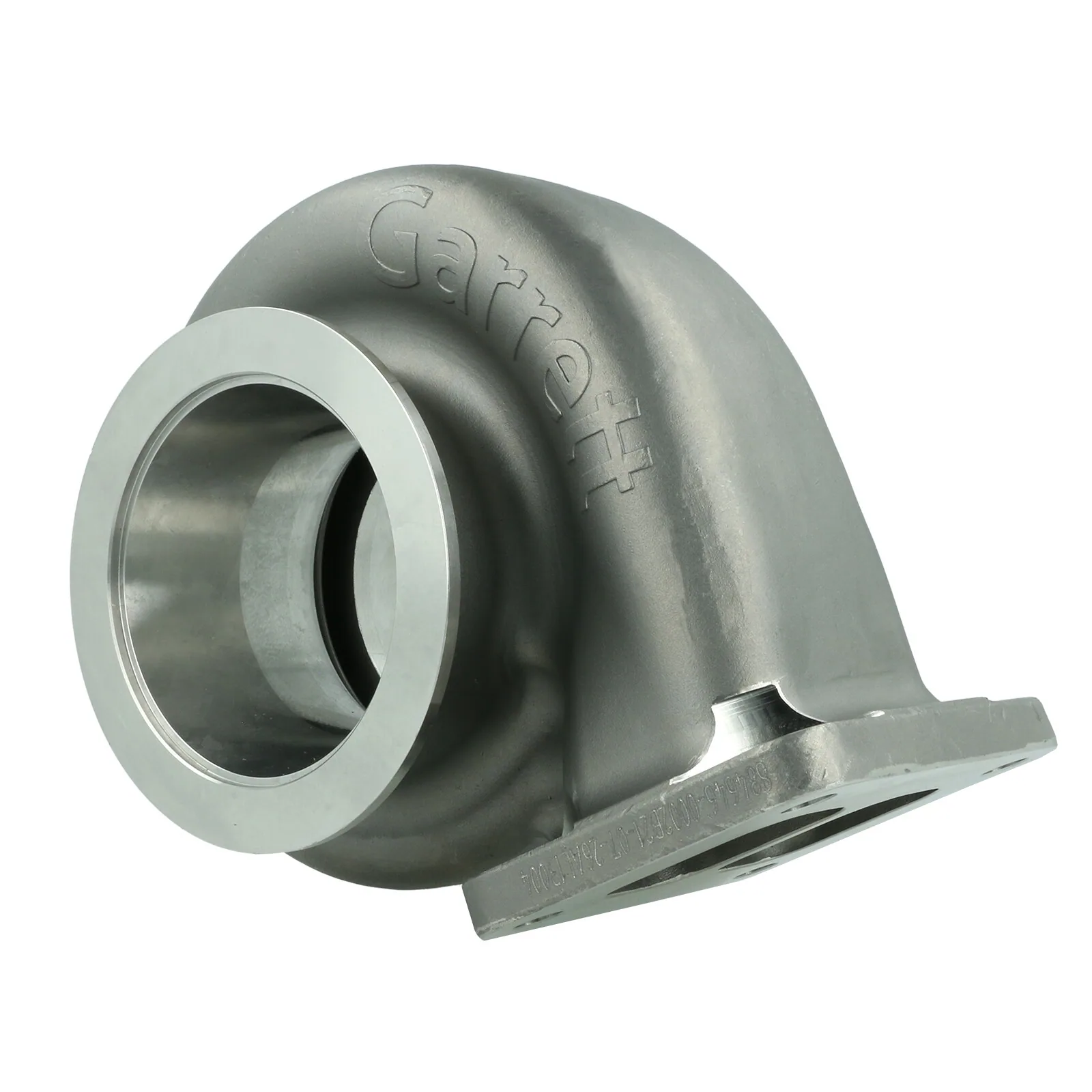

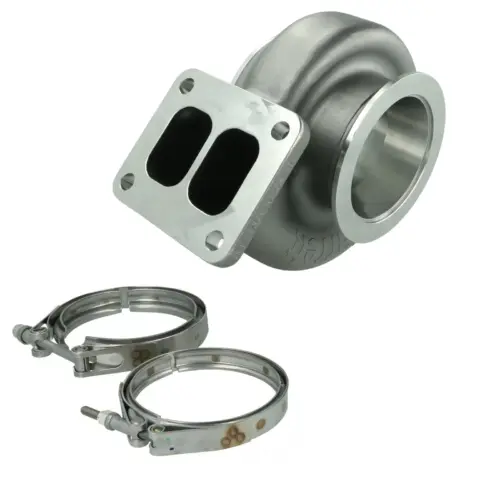

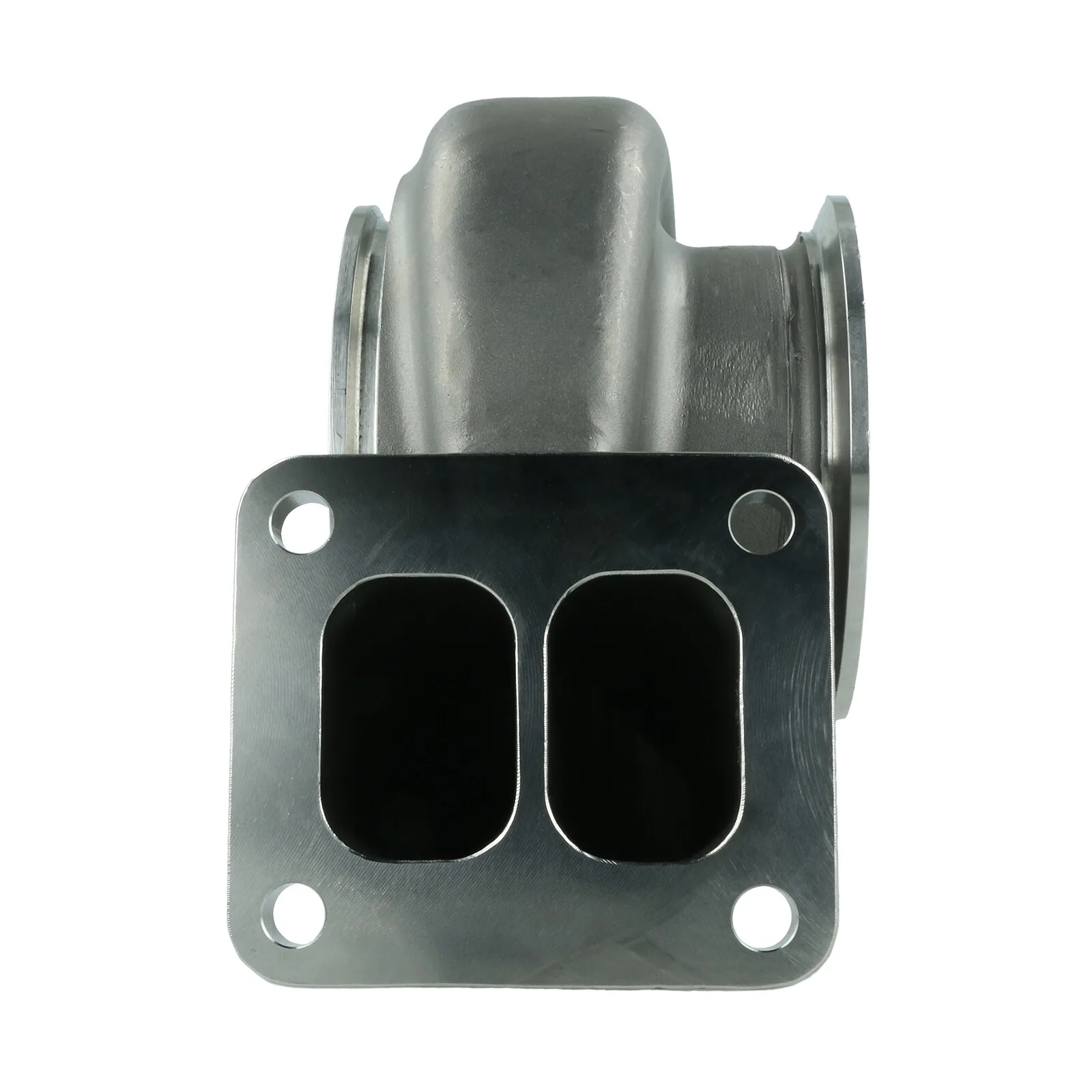

Garrett G40 turbine housing

Garrett G40 turbine housing for performance turbochargers. Available in several versions (A/R, flange, wastegate) — choose the one that matches your turbo and manifold.

Technical data

• Manufacturer: Garrett
• Series: Garrett G40
• Manufacturer part number: 757707-0027, 757707-0028, 757707-0029, 757707-0030, 757707-0032, 757707-0033, 757707-0034, 757707-0035, VAR-249124

Versions

• Garrett G40 Turbine Housings
• 0.85 A/R | T4 twinscroll
• 0.95 A/R | T4 twinscroll
• 1.06 A/R | T4 twinscroll
• 1.19 A/R | T4 twinscroll
• 0.85 A/R | V-band
• 0.95 A/R | V-band
• 1.06 A/R | V-band
• 1.19 A/R | V-band

Use

Universal part, not vehicle-specific. Installation requires a suitable exhaust manifold, oil and coolant lines, piping and engine management tuning — have it installed by a professional. Intended for motorsport use; not approved for road use.

Suitable for: universal use (not vehicle-specific).
