HG Motorsport adapter for 1.8T ignition coils to high-performance TFSI coils

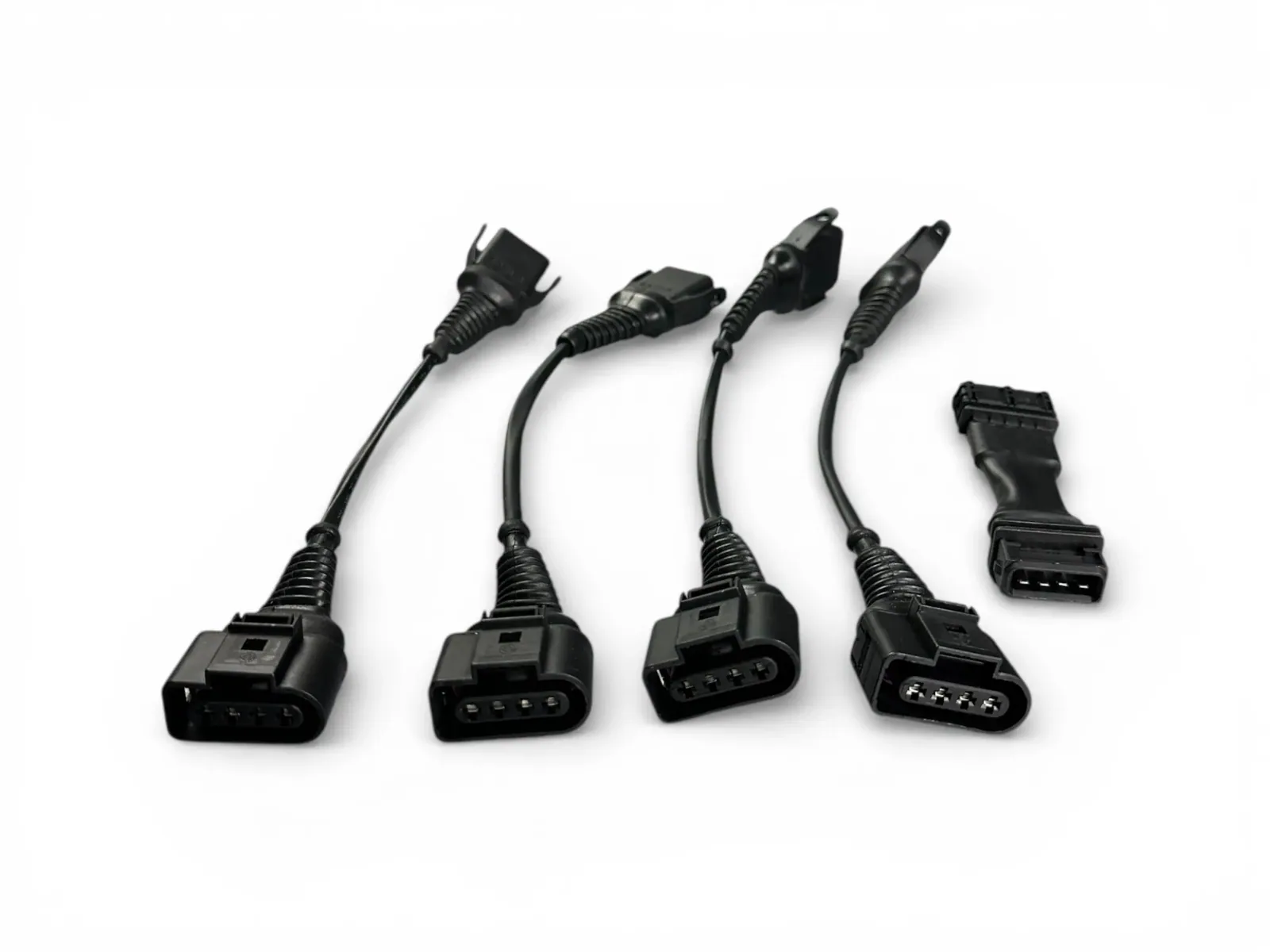

Adapter wiring harness for 1.8T engines – conversion to TFSI ignition coils

For old square ignition coil connectors (ME3.8). This adapter wiring harness enables all 1.8T engines with the old square ignition coil connector design to be converted to modern high-performance TFSI ignition coils. It is suitable for engine codes such as AGU, AEB, ANB and many others.

Compact design – no cable clutter

Our adapters are deliberately kept very short, meaning that:

• no unnecessary cable loops are created,
• the engine bay remains tidy,
• the connectors are not placed under tension,
• a neat, OEM-like appearance is retained.

No more excessively long universal adapters.

How it works

The adapter wiring harness is connected plug and play between the vehicle’s original connectors and the new TFSI ignition coils.

Modern TFSI ignition coils feature an integrated ignition output stage, eliminating the failure-prone external ignition amplifier used on older 1.8T models. A suitable bypass adapter for the external output stage is included.

Benefits of converting to TFSI ignition coils

• higher ignition voltage,
• more stable spark at higher boost pressures,
• cleaner and more even combustion,
• removal of the old, failure-prone external ignition amplifier,
• longer-lasting ignition coil technology,
• modernised appearance in the engine bay.

Particularly on tuned 1.8T engines, the conversion provides significantly more stable ignition performance.

Note: This adapter wiring harness is intended exclusively for 1.8T engines with square connectors and Motronic ME3.8. The harness is not required for ME7.x (eGas) variants.

Typical vehicles with AGU, AEB and ANB engines (examples)

• Audi A3 8L 1.8T
• VW Golf 4 GTI 1.8T
• Audi A4 B5 1.8T
• VW Passat 3B 1.8T – depending on the engine code; please check compatibility

Summary

This adapter wiring harness is the essential interface for a technically sound conversion of older 1.8T engines to modern TFSI ignition coils. Plug and play, compact and reliable, it provides the basis for a stable ignition system in both standard and tuned configurations.

Suitable for: Audi A3 I (8L), Audi A4 I (B5), Škoda Octavia I (1U2) / I (1U5), VW Bora I (1J), VW Golf IV (1J), VW Passat B5 (3B).

Manufacturer’s vehicle data

• Adapterkabelbaum VAG 1,8T Zündspulen Umbau auf Hochleistungsspulen

Original product name by HG Motorsport (»z.B.« = e.g.). Please check model, year and engine of your vehicle before ordering; if in doubt, contact us and we will check for you.
