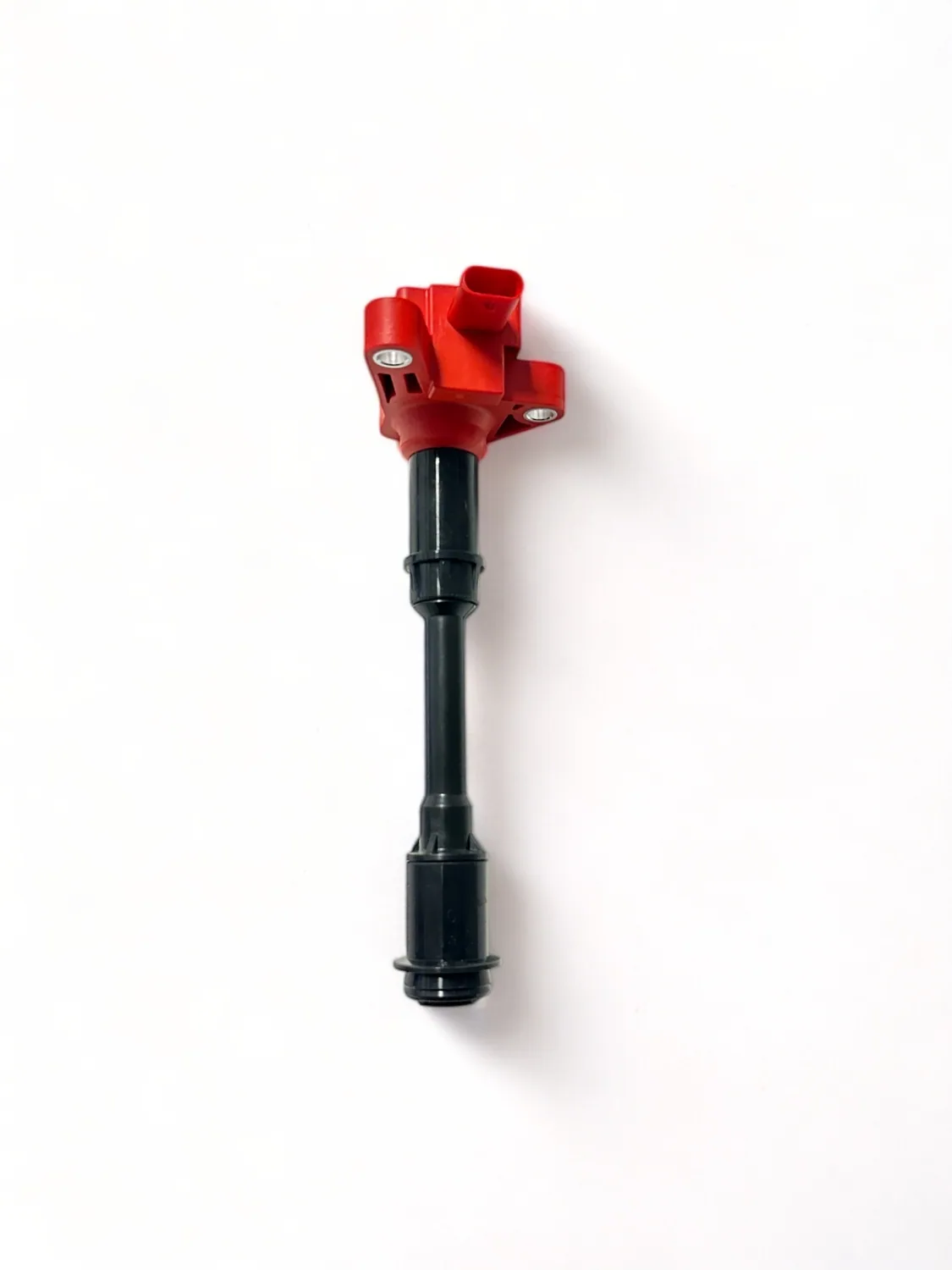

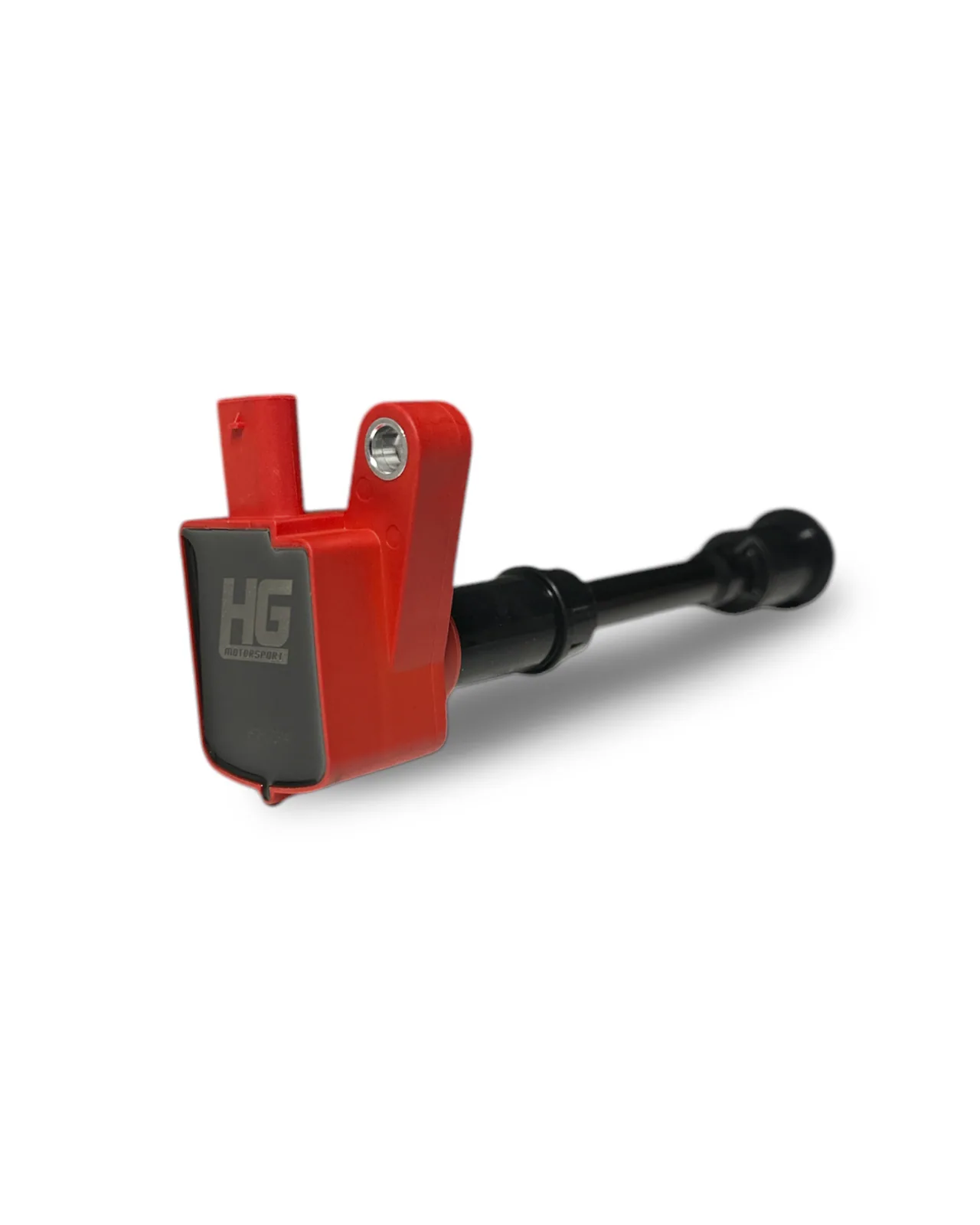

HG Motorsport ignition coils for Ford Fiesta ST 1.6

Technical upgrade for maximum performance

HG Motorsport high-performance ignition coils provide increased ignition energy and improved thermal stability for modern high-performance engines.

In modern vehicles, particularly those with tuned engines, original ignition coils quickly reach their limits. Misfires, uneven combustion and thermal overload can be the result. HG Motorsport high-performance ignition coils have been specifically developed to overcome these challenges. They provide increased ignition energy, improved thermal stability and consistently reliable performance, even under the most demanding conditions.

Technical features of the HG Motorsport ignition coils

• Optimised primary and secondary windings: more windings and high-quality copper wire provide improved energy transfer and consistently high ignition voltage.
• Increased ignition energy (+10% compared with OE): optimum spark plug supply throughout the complete dwell period, ideal for high-performance engines.
• Constant energy output under high load: particularly suitable for turbocharged and supercharged engines that require stable ignition voltage over longer periods.
• Extended service life: high-quality insulating materials and optimised windings minimise thermal loads and protect against internal short circuits.
• Thermal resistance: continuous operation up to 120°C and stable operation up to 140°C without loss of performance.
• Optimised spark formation: stable ignition at high boost pressures and with richer mixtures, significantly improving combustion efficiency.

Ignition energy comparison

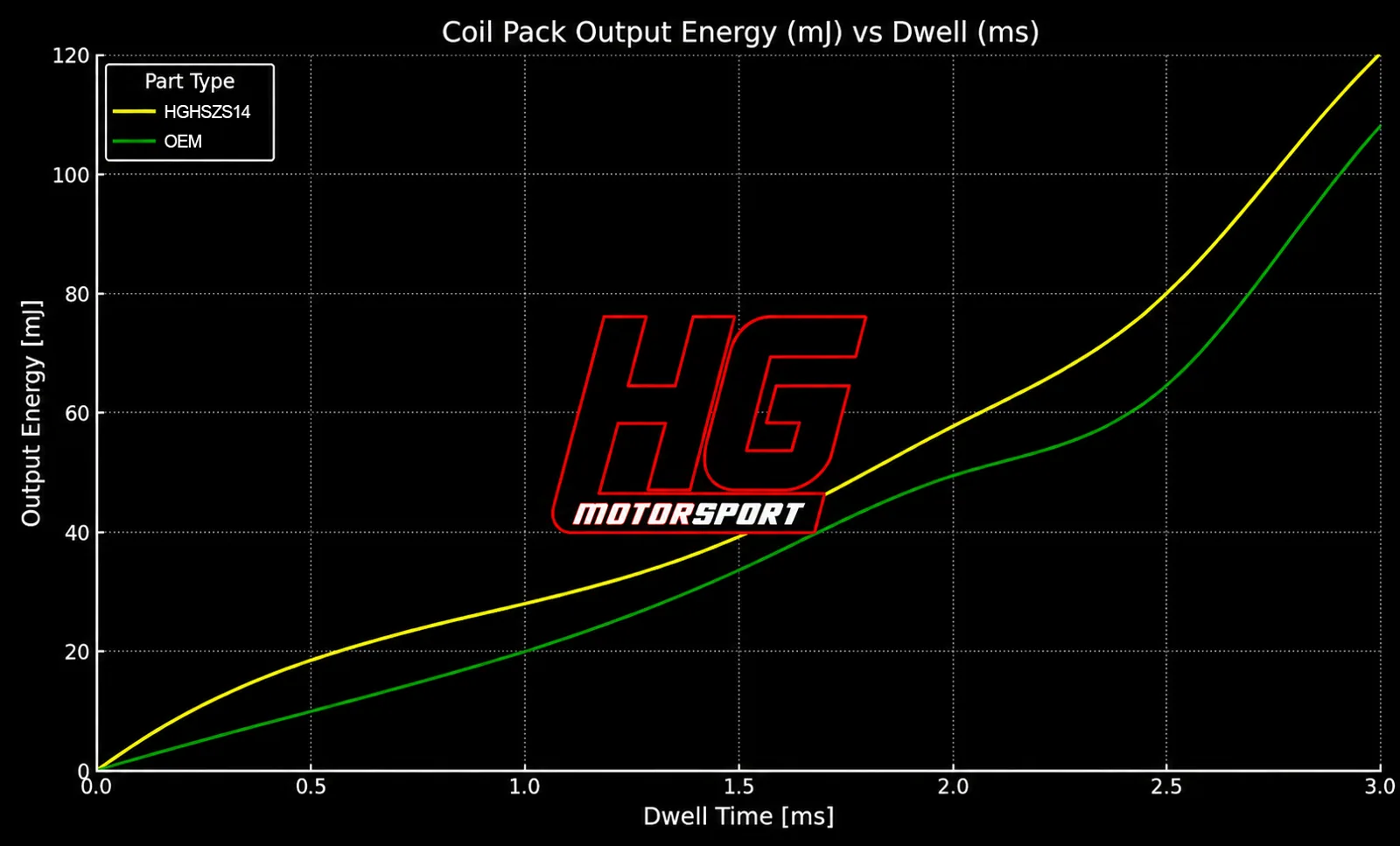

The diagram shows the superior ignition energy of the HG Motorsport ignition coils compared with standard components:

• Up to 1.5 ms: both coil types deliver comparable energy.
• From 2.0 ms: the energy of the standard ignition coils drops significantly, while the HG Motorsport ignition coils continue to deliver consistently high values.
• At 3.0 ms: the HG Motorsport ignition coils deliver almost 25% more energy, which is crucial at high engine speeds and in tuned engines.

Even at a temperature of 140°C, the ignition energy of the HG Motorsport ignition coils remains stable at 70 mJ, while OE coils have already failed or reached critical values.

Ideal for the following applications

• High-performance engines: optimum ignition even under extreme loads.
• Motorsport and trackdays: stability and consistent energy during continuous operation.
• Daily drivers with increased power: improved efficiency and ignition stability in everyday use.
• Replacement for OEM ignition coils: increased reliability and extended service life.

Winding structure and operation

The ignition coils use an optimised primary and secondary coil structure. The primary winding generates a strong magnetic field; as this field collapses, a high voltage is induced in the secondary winding. The higher number of windings and improved insulation ensure consistent ignition energy, even at high engine speeds and during peak loads.

Thermal testing and long-term results

1. Continuous thermal load
   • Test set-up: continuous operation at 120°C with simulated load changes for more than 100 hours.
   • Result: no reduction in performance and no thermal degradation of the HG Motorsport ignition coils.
   • Comparison: OE ignition coils lost approximately 25% of their energy after 50 hours, followed by initial material changes.
2. Additional test at 140°C
   • HG Motorsport: stable operation for 8 hours without failures.
   • OE ignition coils: performance drop of up to 40% after 4 hours, followed by thermal failures.

Summary of laboratory data

• Maximum ignition energy: HG Motorsport 120 mJ; OE ignition coil 90 mJ.
• Continuous load at 120°C: HG Motorsport > 100 hours; OE ignition coil 50 hours.
• Operation at 140°C: HG Motorsport stable for up to 8 hours; OE ignition coil performance drop after 4 hours.
• Insulation resistance (500 V): HG Motorsport > 20 MΩ; OE ignition coil approximately 10 MΩ.

Replaces the following OEM numbers

The ignition coil replaces the following OEM numbers: 1700610, 1762724, 1832313, BM5G-12A366-CA, BM5G-12A366-DA, BM5G-12A366-DB, 1700610, 1762724, 1832313, 31339210, 31375550, 31422117.

Suitable for: Ford Fiesta VI (JA8).

Manufacturer’s vehicle data

• HG Hochleistungs Zündspule Ford Fiesta ST1,6

Original product name by HG Motorsport (»z.B.« = e.g.). Please check model, year and engine of your vehicle before ordering; if in doubt, contact us and we will check for you.
