The Racingline magnetic drain and fill plug kit is designed for Volkswagen Group vehicles with Haldex all-wheel drive. During an oil service, the magnetic drain plug traps harmful metal particles from the differential or final drive.
The gears in the differential and final drive are constantly in contact under load. During more demanding driving and with higher vehicle performance, fine ferrous particles can build up in the oil. If they remain in circulation, they can accelerate wear to the bearings and gear surfaces. The magnetic plug keeps them away from moving components until the next oil change.

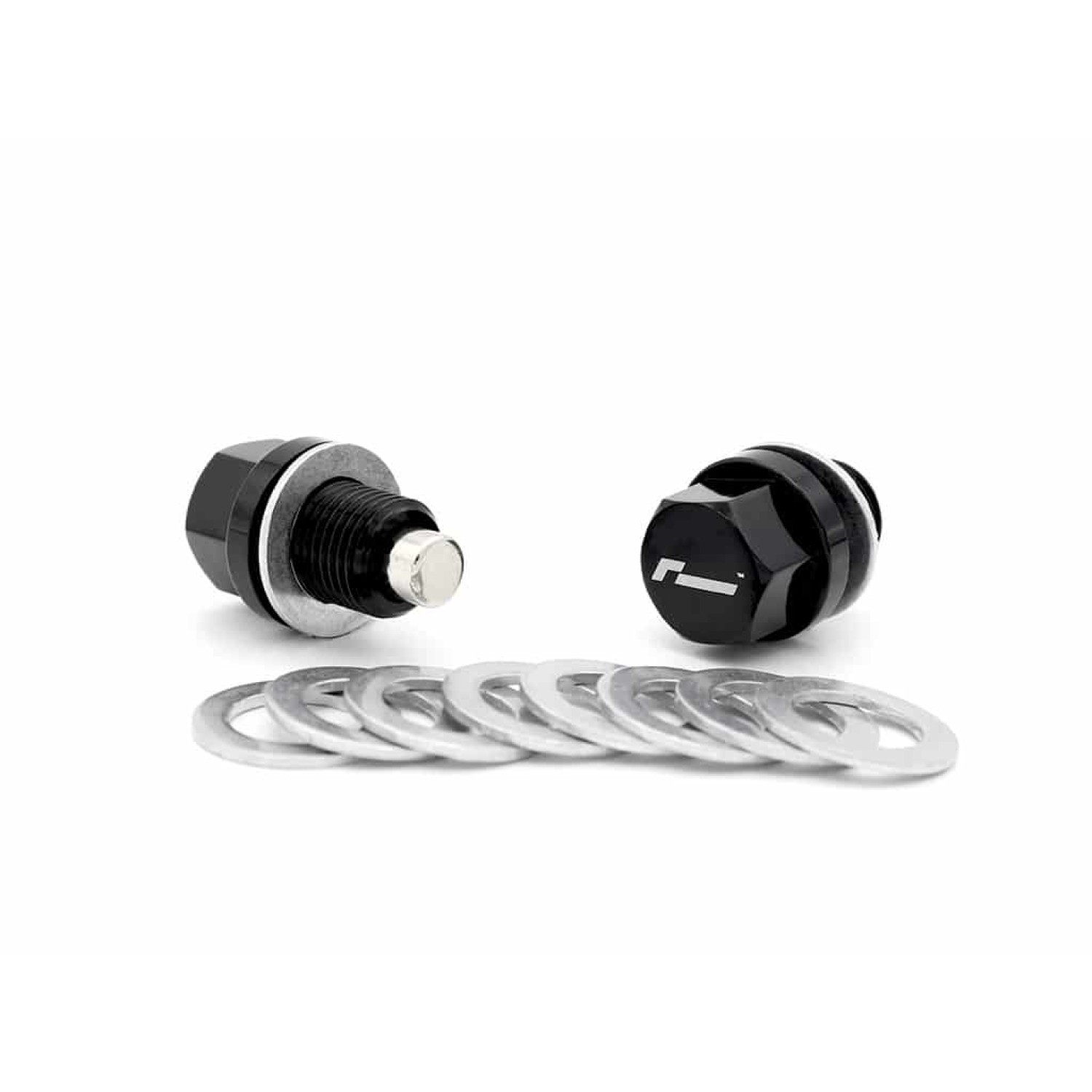

Kit contents
- 1 × magnetic differential oil drain plug
- 1 × non-magnetic oil fill plug
- 10 × sealing washers, enough for 5 services
Required number of kits
The required number of kits depends on the Haldex system generation:
Haldex generation 5 (MQB vehicles with all-wheel drive): 2 kits per vehicle are required – one for the front final drive and one for the rear differential final drive.
Haldex generation 4: 1 kit per vehicle is required for the rear differential final drive.
Haldex generation 2: 1 kit per vehicle is required for the rear differential final drive.
Simple installation
No special preparation is required. At the next differential or final-drive oil service, remove the original plugs and install the Racingline magnetic drain plug and non-magnetic fill plug using the supplied sealing washers. The kit contains enough washers for five services.
Important: use a new sealing washer at every service and tighten the plugs to the manufacturer’s specified torque to prevent leaks.
Key benefits
- traps ferrous particles from the differential and final-drive oil,
- helps reduce wear to the gears and bearings,
- direct replacement for the original plugs with no modifications,
- supplied sealing washers are enough for five oil changes.
Suitable for: Audi A3 III (8V) / IV (GY), Audi RS3 II (8P) / III (8V) / IV (8Y), Audi S1 I (8X), Audi S3 II (8P) / III (8V) / IV (8Y), Audi SQ2 I (GA), Audi TT II (8J) / III (FV), Audi Tts III (FV), Cupra Ateca I (KH7), Cupra Formentor I (KM7), Cupra Leon IV (KL1), Cupra Terramar I, SEAT Leon III (5F) and 7 more (see the table below).
Compatible vehicles (manufacturer data)
| Vehicle | Chassis | Years | Engine |
|---|---|---|---|
| Audi A1 | 8X1, 8XK | 2014–2018 | S1 quattro (CWZA) |
| Audi A1 Sportback | 8XA, 8XF | 2014–2018 | S1 quattro (CWZA) |
| Audi A3 | 8P1 | 2006–2012 | S3 quattro (BHZ/CDLA), S3 quattro (BZC/CDLC) |
| Audi A3 | 8V1, 8VK | 2012–2017 | 1.8 TFSI quattro (CJSB), 2.0 TDI quattro (CRBC/CRLB/DCYA), 2.0 TDI quattro (CUNA/DGCA), 2.0 TFSI quattro (CZPB), S3 quattro (CJXB), S3 quattro (CJXC) … |
| Audi A3 Convertible | 8V7, 8VE | 2014–2020 | 1.8 TFSI quattro (CJSB), 2.0 TDI quattro (CRLB/DCYA), 2.0 TDI quattro (CUNA/DGCA), 2.0 TFSI quattro (CNTC), 2.0 TFSI quattro (CZPB), 40 TFSI quattro (DKZA) … |
| Audi A3 Saloon | 8VS, 8VM | 2013–2020 | 1.6 TDI quattro (CXXB), 1.8 TFSI quattro (CJSB), 2.0 TDI quattro (CRBC/CRLB/DCYA), 2.0 TDI quattro (CUNA/DGCA), 2.0 TFSI quattro (CZPB/DKZA), RS3 quattro (DAZA/DNWA) … |
| Audi A3 Saloon | 8YS, 8YM | 2020–2026 | 40 TDI quattro (DTUA), 40 TFSI quattro (DNNE), 40 TFSI quattro (DNVB), RS3 TFSI quattro (DNWC/DXHB), RS3 TFSI quattro (DNWD/DXHA), S3 TFSI quattro (DNFB/DSFA) … |
| Audi A3 Sportback | 8PA | 2008–2013 | RS3 quattro (CEPA), S3 quattro (BHZ/CDLA), S3 quattro (CDLC) |
| Audi A3 Sportback | 8VA, 8VF | 2012–2020 | 1.6 TDI quattro (CXXB), 1.8 TFSI quattro (CJSB), 2.0 TDI quattro (CRBC/CRLB/DCYA), 2.0 TDI quattro (CUNA/DGCA), 2.0 TFSI quattro (CZPB/DKZA), 40 TDI quattro (DJGA) … |
| Audi A3 Sportback | 8YA, 8YF | 2020–2026 | 40 TDI quattro (DTUA), 40 TFSI quattro (DNNA), 40 TFSI quattro (DNNE), RS3 TFSI quattro (DNWC/DXHB), RS3 TFSI quattro (DNWD), S3 TFSI quattro (DNFB) … |
| Audi Q2 | GAB, GAG | 2018–2026 | SQ2 TFSI quattro (DNFC/DNUE) |
| Audi TT | 8J3 | 2008–2014 | 2.0 TTS quattro (CDLA/CDMA), 2.0 TTS quattro (CDLB), 2.5 RS quattro (CEPA), 2.5 RS quattro (CEPB) |
| Audi TT | FV3, FVP | 2014–2026 | 2.0 TDI quattro (CUNA), 2.0 TFSI quattro (CHHC), 2.0 TTS quattro (CJXG), 2.0 TTS TFSI quattro (CJXF), 2.0 TTS TFSI quattro (CYFB/DLRA), 2.0 TTS TSI quattro (DNUF) … |
| Audi TT Roadster | 8J9 | 2008–2014 | 2.0 TTS quattro (CDLA/CDMA), 2.0 TTS quattro (CDLB), 2.5 RS quattro (CEPA), 2.5 RS quattro (CEPB) |
| Audi TT Roadster | FV9, FVR | 2014–2026 | 2.0 TDI quattro (CUNA), 2.0 TFSI quattro (CHHC), 2.0 TTS TFSI quattro (CJXF), 2.0 TTS TFSI quattro (CJXG), 2.0 TTS TFSI quattro (DNUF), 2.5 RS TFSI quattro (DAZA/DNWA) … |
| CUPRA Ateca | KH7, KHP, KBP | 2018–2026 | 2.0 TSI 4Drive (DNFC/DNUE), 2.0 TSI 4Drive (DNNA) |
| CUPRA Formentor | KM7, KMP | 2020–2026 | 2.0 TDI 4Drive (DTTA/DTTC), 2.0 TSI 4Drive (DNFB), 2.0 TSI 4Drive (DNNA), 2.0 TSI 4Drive (DNNE), 2.0 VZ 4Drive (DNFF), 2.5 VZ5 4Drive (DNWB) |
| CUPRA LEON Sportstourer | KL8, KU8, KUD | 2021–2026 | 2.0 TDI 4Drive (DTTC), 2.0 TSI 4Drive (DNFB), 2.0 TSI 4Drive (DNNE), 2.0 VZ 4Drive (DNFF) |
| CUPRA Terramar | KP1 | 2024–2026 | 2.0 TSI 4Drive (DNNE), 2.0 TSI VZ 4Drive, 2.0 TSI VZ 4Drive (DNPB) |
| SEAT Leon St | 5F8 | 2014–2020 | 1.6 TDI 4Drive (CLHA), 1.6 TDI 4Drive (CXXB), 1.6 TDI 4Drive (DGTE), 1.8 TSI 4Drive (CJSA/CJSB), 2.0 Cupra 4Drive (CJXC/DNUE), 2.0 TDI 4Drive (CRBC/CRLB/CRMB/DCYA/DFGA) … |
| Skoda Kodiaq I | NS6, NS7, NV7 | 2016–2026 | 1.4 TSI 4×4 (CZDA/CZEA), 1.5 TSI 4×4 (DADA/DPCA), 2.0 RS 4×4 (DNPA), 2.0 RS Bi-TDI 4×4 (CUAA), 2.0 TDI 4×4 (CRGB), 2.0 TDI 4×4 (DBGC/DFGA/DTSB) … |
| Skoda Kodiaq II | PS7 | 2024–2026 | 2.0 TDI 4×4 (DFGA), 2.0 TDI 4×4 (DXNB), 2.0 TSi 4×4 (DNNE), 2.0 TSi 4×4 (DNPB) |
| Skoda Octavia III | 5E3, NL3, NR3 | 2013–2020 | 1.6 TDI 4×4 (CLHA), 1.6 TDI 4×4 (CRKB/CXXB), 1.6 TDI 4×4 (DGTE), 1.8 TSI 4×4 (CJSB), 2.0 TDI / TDI RS 4×4 (CUNA/CUPA/DJGA), 2.0 TDI 4×4 (CKFC/CRMB/DCYA/DFFA) … |
| Skoda OCTAVIA III Combi | 5E5, 5E6 | 2012–2020 | 1.6 TDI 4×4 (CLHA), 1.6 TDI 4×4 (CRKB/CXXB/DBKA), 1.6 TDI 4×4 (DGTE), 1.8 TSI 4×4 (CJSB), 2.0 TDI / TDI RS 4×4 (CUNA/CUPA/DJGA), 2.0 TDI 4×4 (CKFC/CRMB/DCYA/DFFA) … |
| Skoda Octavia IV | NX3, NN3, PV3 | 2020–2026 | 2.0 TDI RS 4×4 (DTUA), 2.0 TSI 4×4 (DNNE) |
| Skoda OCTAVIA IV Combi | NX5, PV5 | 2020–2026 | 2.0 TDI 4×4 (DTTA/DTTC), 2.0 TDI RS 4×4 (DTUA), 2.0 TSI 4×4 (DNNA), 2.0 TSI 4×4 (DNNE) |
| Skoda Superb III | 3V3 | 2015–2024 | 1.4 TSI 4×4 (CZEA), 2.0 TDI 4×4 (CRLB/DFEA/DFGA), 2.0 TDI 4×4 (DDAA/DFCA/DFHA), 2.0 TDI 4×4 (DTUA), 2.0 TFSI 4×4 (CJXA/DNFE), 2.0 TSI 4×4 (DNUA) |
| Skoda SUPERB III Estate | 3V5 | 2015–2024 | 2.0 TDI 4×4 (CRLB/DFEA/DFGA), 2.0 TDI 4×4 (DDAA/DFCA/DFHA), 2.0 TDI 4×4 (DTUA), 2.0 TSI 4×4 (CJXA/DNFE), 2.0 TSI 4×4 (DNUA) |
| Volkswagen Arteon | 3H7, 3H8 | 2017–2026 | 2.0 TDI 4motion (CUAA), 2.0 TDI 4motion (DFHA), 2.0 TDI 4motion (DTUA), 2.0 TSI 4motion (DJHC/DNFE), 2.0 TSI 4motion (DLRB/DNUA), 2.0 TSI R 4motion (DNFG) |
| Volkswagen Arteon Shooting Brake | 3H9 | 2020–2026 | 2.0 TDI 4motion (DFHA), 2.0 TDI 4motion (DTUA), 2.0 TDI 4motion (DXNB), 2.0 TSI 4motion (DJHC/DNFE), 2.0 TSi 4motion (DNUA), 2.0 TSI R 4motion (DNFG) |
| Volkswagen GOLF ALLTRACK VII Estate | BA5, BV5 | 2014–2020 | 1.6 TDI 4motion (CRKB/CXXB), 1.8 TSI 4motion (CJSB), 2.0 TDI 4motion (CRBC/CRLB/DCYA/DFGA), 2.0 TDI 4motion (CUNA/DGCA/DJGA) |
| Volkswagen Golf V | 1K1 | 2005–2008 | 2.0 TDI 4motion (BMM), 3.2 R32 4motion (BUB/CBRA) |
| Volkswagen Golf VI | 5K1 | 2009–2013 | 2.0 R 4motion (CDLA), 2.0 R 4motion (CDLC/CRZA), 2.0 R 4motion (CDLF) |
| Volkswagen Golf VII | 5G1, BQ1, BE1, BE2 | 2013–2020 | 2.0 R 360S 4motion (CJXC), 2.0 R 4motion (CJXB), 2.0 R 4motion (CJXC/DNUE), 2.0 R 4motion (CJXD/DJHB/DNUC), 2.0 R 4motion (CJXG/DJHA) |
| Volkswagen GOLF VII Estate | BA5, BV5 | 2013–2020 | 1.6 TDI 4motion (CLHA), 1.6 TDI 4motion (CRKB/CXXB), 2.0 R 360S 4motion (CJXC), 2.0 R 4motion (CJXB), 2.0 R 4motion (CJXC/DNUE), 2.0 R 4motion (CJXD/DJHB/DNUC) … |
| Volkswagen Golf VIII | CD1, DA1 | 2020–2026 | 2.0 TSI 4motion (DNNE), 2.0 TSI R 4motion (DNFF/DSFD), 2.0 TSI R 4motion (DNFG/DSFE/DSFF) |
| Volkswagen GOLF VIII Variant | CG5, DB5 | 2021–2026 | 2.0 TSI R 4motion (DNFF), 2.0 TSI R 4motion (DNFG) |
| Volkswagen Passat B8 | 3G2, CB2 | 2014–2024 | 2.0 TDI 4motion (CRLB/DFEA/DFGA/DTSA), 2.0 TDI 4motion (CUAA), 2.0 TDI 4motion (DDAA/DFCA/DFHA), 2.0 TDI 4motion (DTUA), 2.0 TSI 4motion (CJXA/DNFE), 2.0 TSI 4motion (DNUA) |
| Volkswagen PASSAT B8 Estate | 3G5, CB5 | 2014–2024 | 2.0 TDI 4motion (CRLB/DFEA/DFGA/DTSA), 2.0 TDI 4motion (CUAA), 2.0 TDI 4motion (DDAA/DFCA/DFHA), 2.0 TDI 4motion (DTUA) |
| Volkswagen T-Roc | A11, D11 | 2017–2026 | 1.5 TSI 4motion (DADA/DPCA), 2.0 R 4motion (DNFC/DNUE), 2.0 TDI 4motion (DFFA/DTTC/DXRB), 2.0 TDI 4motion (DFHA), 2.0 TSI 4motion (CZPB/DKZA), 2.0 TSI 4motion (DNNA) |
Before ordering, check that the product matches your vehicle (model, year and engine). If in doubt, write to us — we will check for you.
