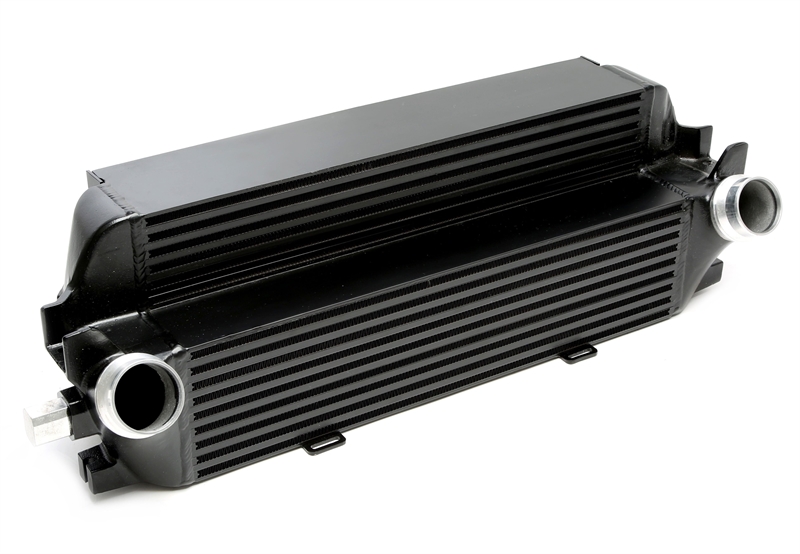

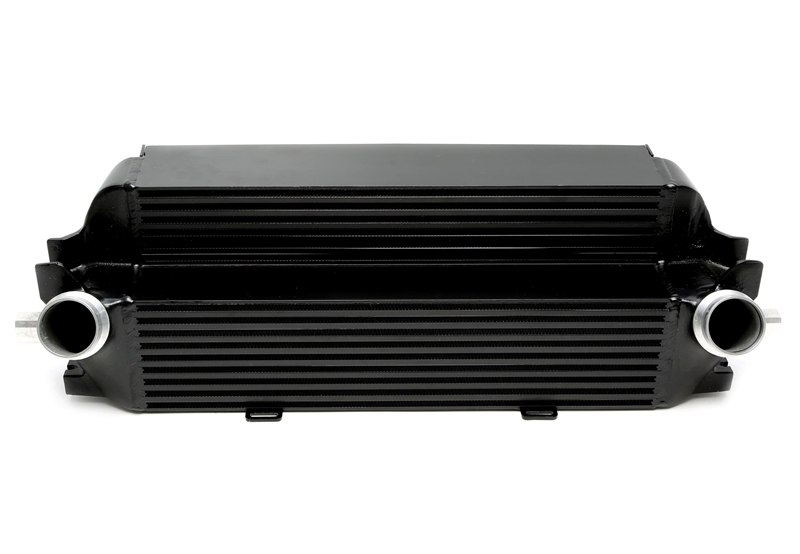

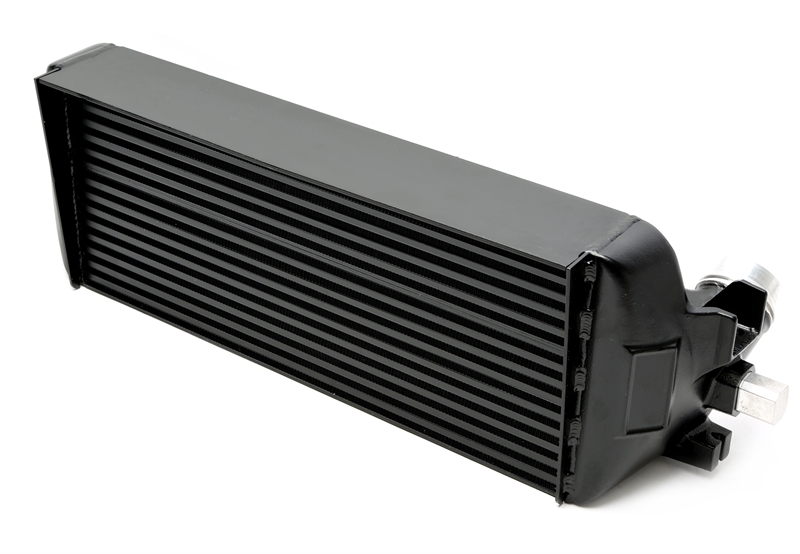

TC intercooler 560×135×75/90 mm – for BMW 5 (G30/G31) 520i–540d and 6 GT (G32), 2017

The factory charge air cooler on the G30 and G32 is sized for stock power. This stepped intercooler with a 560×135×75/90 mm core and 60 mm connections has more surface area, so intake air temperature stays stable even on a remapped 540i and on diesels under load.

Why TC

• Stepped core 560×135×75/90 mm – more surface area in the factory space
• 60 mm connections – fits the factory pipes
• Black powder-coated

Technical data

• Core: 560×135×75 (90) mm, stepped
• Fittings: 60mm
• Maximum length: 820mm
• Weight: 15.3 kg
• No type approval for road traffic

Fits vehicles

• BMW 5 (G30/G31) 520i–540d, 2017
• BMW 6 GT (G32) 620d–640d, 2017

Delivery time: 6–8 working days. Please check fitment using the vehicle selector before ordering; if in doubt, write to us.
