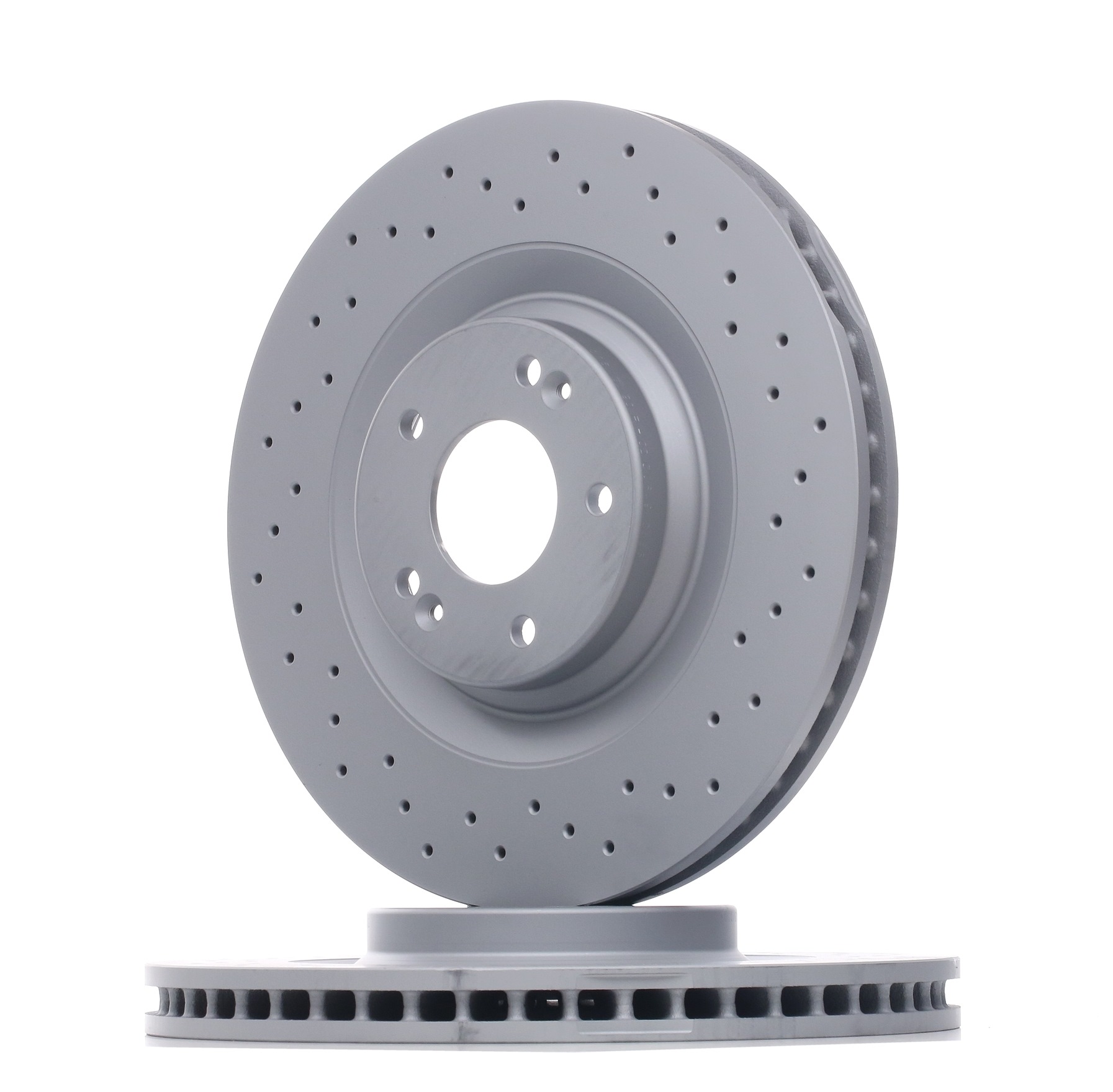

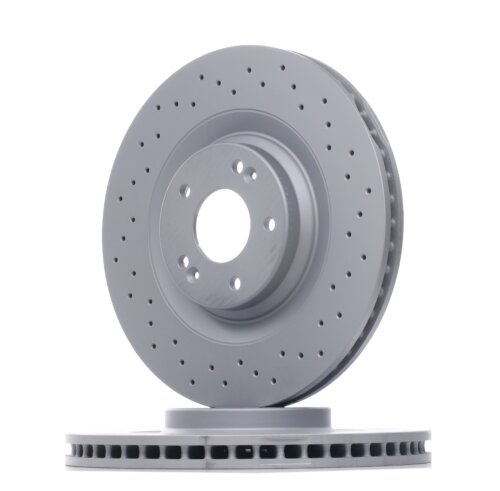

Zimmermann front brake disc 345×30 mm for Hyundai i30 N pre-facelift (2017-2020) – drilled, coated

Zimmermann front brake disc 345 × 30 mm for Hyundai i30 N pre-facelift (PDE, 2.0 T-GDI, 275 hp). This is the factory size on the pre-facelift N the facelift from 2021 on has the larger 360 mm disc and ta disk mu ne fits.

Technical specifications

• Installation: front axle
• Dimension: 345 × 30 mm, height 52 mm
• Version: vented and drilled, with anti-corrosion coating
• Mounting: 5 × 114, 7/5 holes
• Catalogue number: 285.3537.52 · OE 51712-S0100
• Price applies for one piece — for the front axle you need 2.

What you get

• The drilled holes vent gases and water from under the pad — consistent bite even in the rain and after a few laps
• The coating keeps it looking good for the wheel and prevents rust on the non-wearing surfaces
• Factory size: no adapters, no modifications, works with the factory calipers

Compatibility

• Hyundai i30 N and i30 Fastback N (PDE), 2.0 T-GDI, 275 hp, model year 2017–2020 (pre-facelift)
• For the facelift (2021–, 280 HP) choose the version 360mm.
• If you are not sure, measure the diameter of the factory disc or check the OE number.

Tip

• Always replace discs in pairs and together with new pads.
• When replacing, we recommend fresh Motul RBF-600 brake fluid and HEL braided lines.
