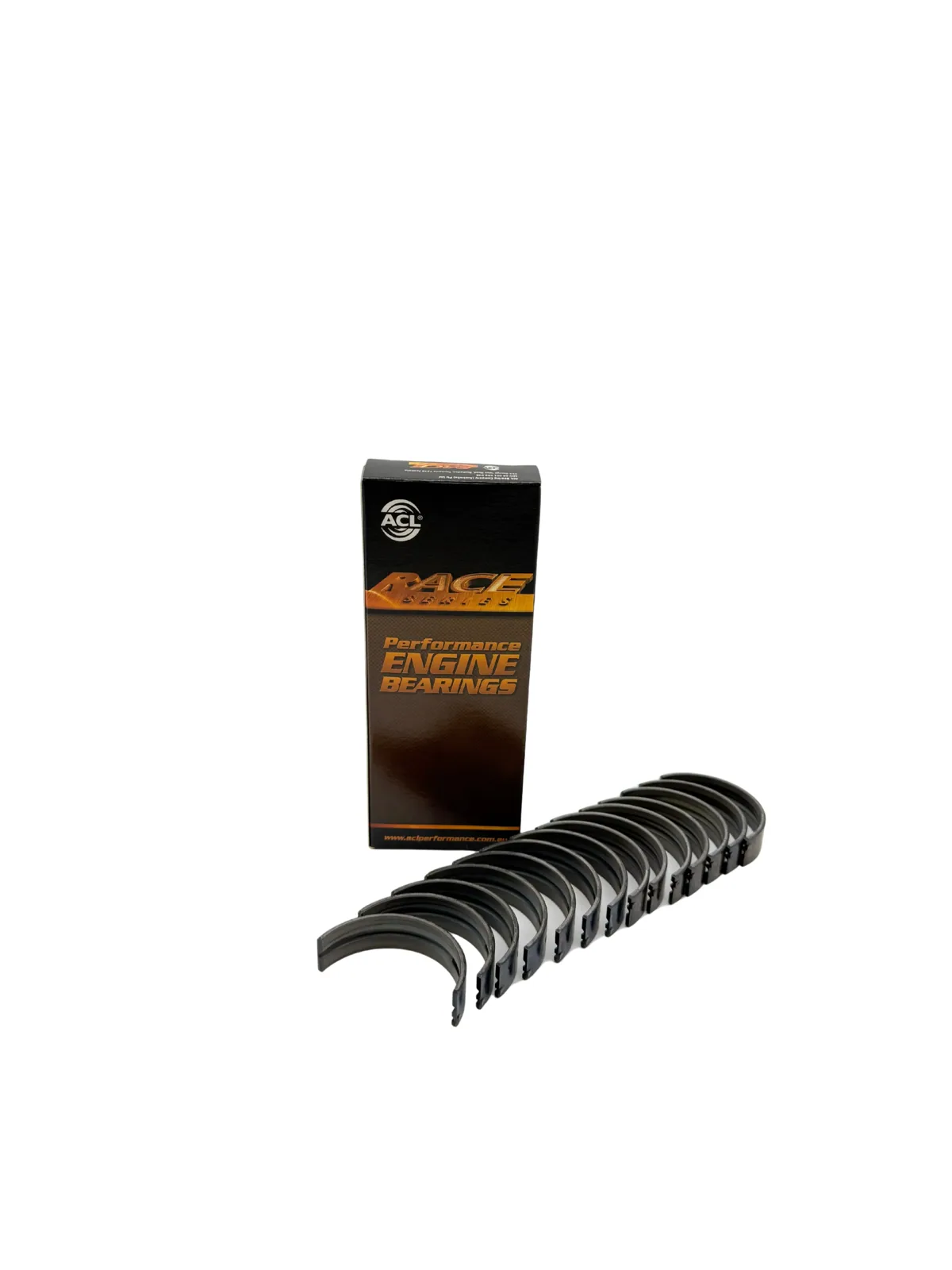

ACL Race main bearings for VW/Audi VR6

ACL Race main bearings are designed for high-performance engines operating at higher RPM conditions. Their trimetal construction combines a high-strength overlay plate, increased crush and increased eccentricity for improved retention and the formation of hydrodynamic oil films.

The set is designed to optimize bearing load-carrying surface area and oil flow to the conrod bearings. Tight, consistent wall tolerances help maintain consistent clearances, while enlarged ID chamfers accommodate performance crankshafts with a large fillet radius.

• High-strength overlay plate with reduced thickness for improved fatigue properties
• Increased crush for improved bearing retention in the housing
• Elimination of flash plating on the back for improved heat transfer and grip in the housing

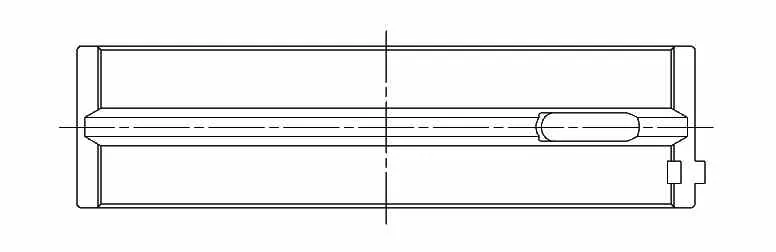

• 3/4 grooved main bearings to optimize load-carrying surface area and oil flow
• Enlarged ID chamfers to accommodate a large fillet radius on performance crankshafts

Suitable for: Audi A3 II (8P), Audi Q7 I (4L), Audi TT I (8N), Ford Galaxy I (WGR), SEAT Alhambra I (7MS), SEAT Leon I (1M1), SEAT Toledo II (1M2), VW Beetle I (9C), VW Bora I (1J), VW CC I (3CC), VW Corrado I (53I), VW Eos I (1F), VW Golf III (1H) / IV (1J) / V (1K), VW Jetta III (1K2), VW Multivan V (7H), VW Passat B3 (35I) / B6 (3C) / B7 (3C) and 5 more.

Engines: VR6 (BDB, BMJ, BUB, BHK, BHE, BPF, AAA, AYL, AUE, BDE, AQP, BLV, BWS, AES, AMV, ABV, CBRA, BFH, BML, CFLA, BDL, BKK, AXJ, AXZ …). Please check your vehicle’s engine code (registration document or VIN) before ordering; if in doubt, contact us and we will check for you.

Sizes

STD is the standard size for an unground crankshaft. Undersizes (−0.25 mm, −0.50 mm …) are for a reground crank, and “+0.025 mm clearance” (X) is for highly stressed engines. Your machine shop chooses the size after measuring.
