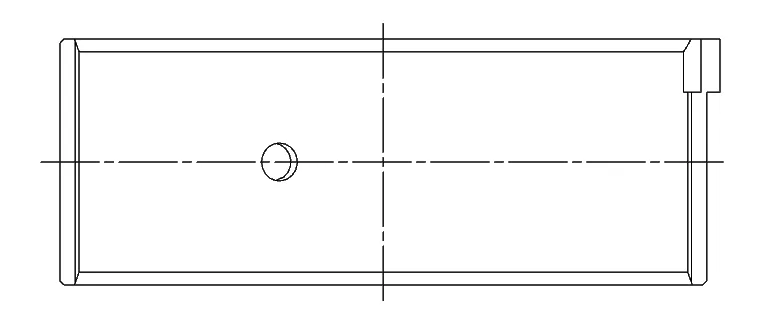

ACL Race rod bearings are trimetal engine bearings designed to withstand higher RPM conditions. Their combination of design, metallurgy and engineering supports demanding high-performance applications.
The ACL Race Series set features improved bearing retention, consistent clearances and construction developed for the requirements of performance engines.
- High-strength overlay plate with reduced thickness for improved fatigue properties
- Hardened steel backs on all rod bearings to improve support of the bearing lining and retention in the housing
- Increased crush for improved bearing retention
- Increased eccentricity to compensate for bore distortion at high RPM and assist in forming hydrodynamic oil films
- Tight, consistent wall tolerances to help maintain consistent clearances
Suitable for: Honda Accord III (CA) / IV (CB) / V (CC/CD) / V (CE/CF), Honda Odyssey I (RA1/RA5), Honda Prelude III (BA) / IV (BB) / V (BB), Honda Shuttle II (RA), Rover 600 I (RH).
Engines: F22A, F22B, F20A, B20A, H23A, B21A, F22Z (B20A8, F20A2, F20A4, F20A5, F20A6, F20A8, F22A1, F22A3, F22A4, F22A6, F20A7, F22B1, F22B2, F22B3, H23A3, F22B6, B20A1, B20A5, B20A6, B20A7, B20A9, B21A1, B20A2, H23A2 …). Please check your vehicle’s engine code (registration document or VIN) before ordering; if in doubt, contact us and we will check for you.
Sizes
STD is the standard size for an unground crankshaft. Undersizes (−0.25 mm, −0.50 mm …) are for a reground crank, and “+0.025 mm clearance” (X) is for highly stressed engines. Your machine shop chooses the size after measuring.
