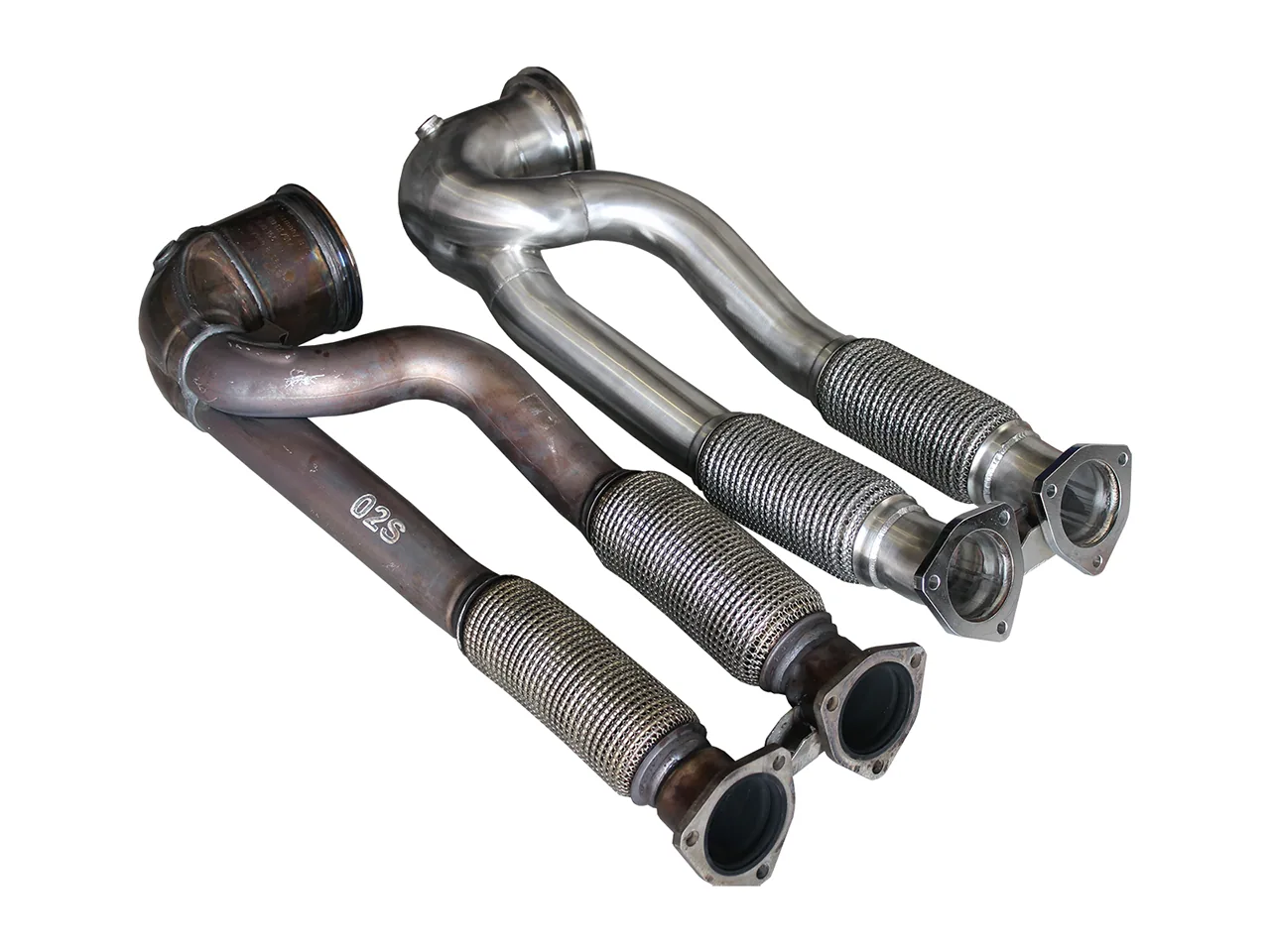

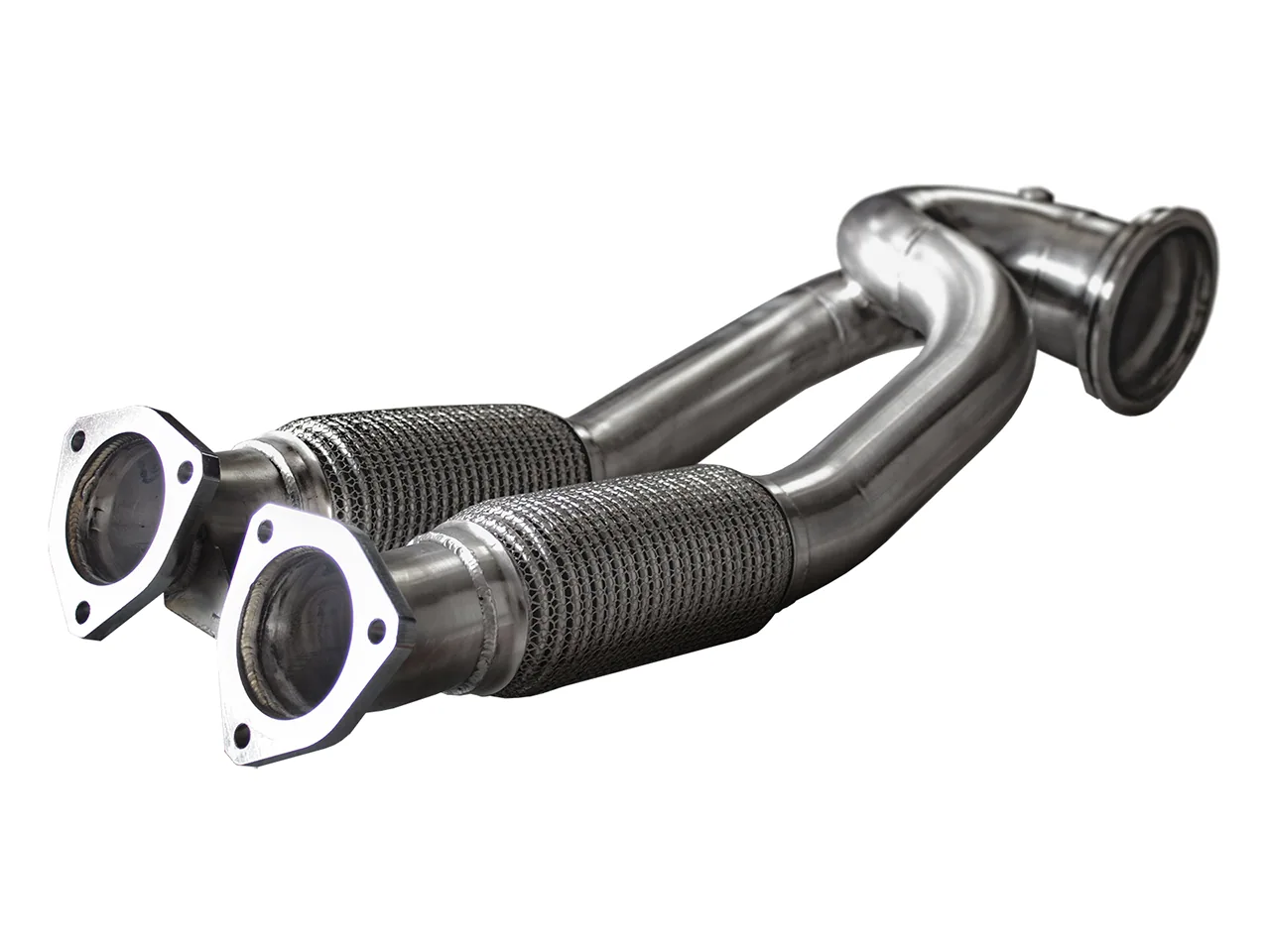

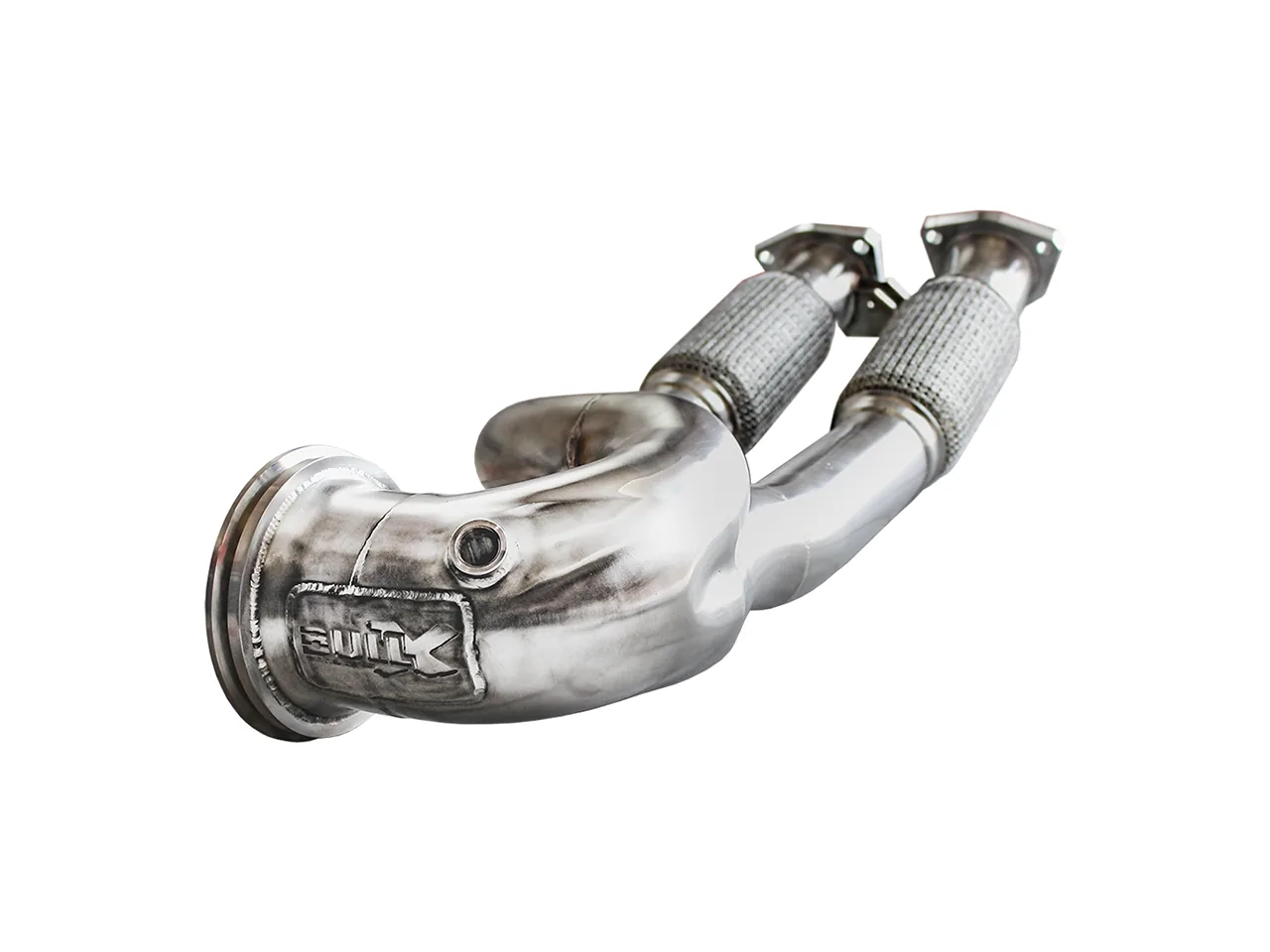

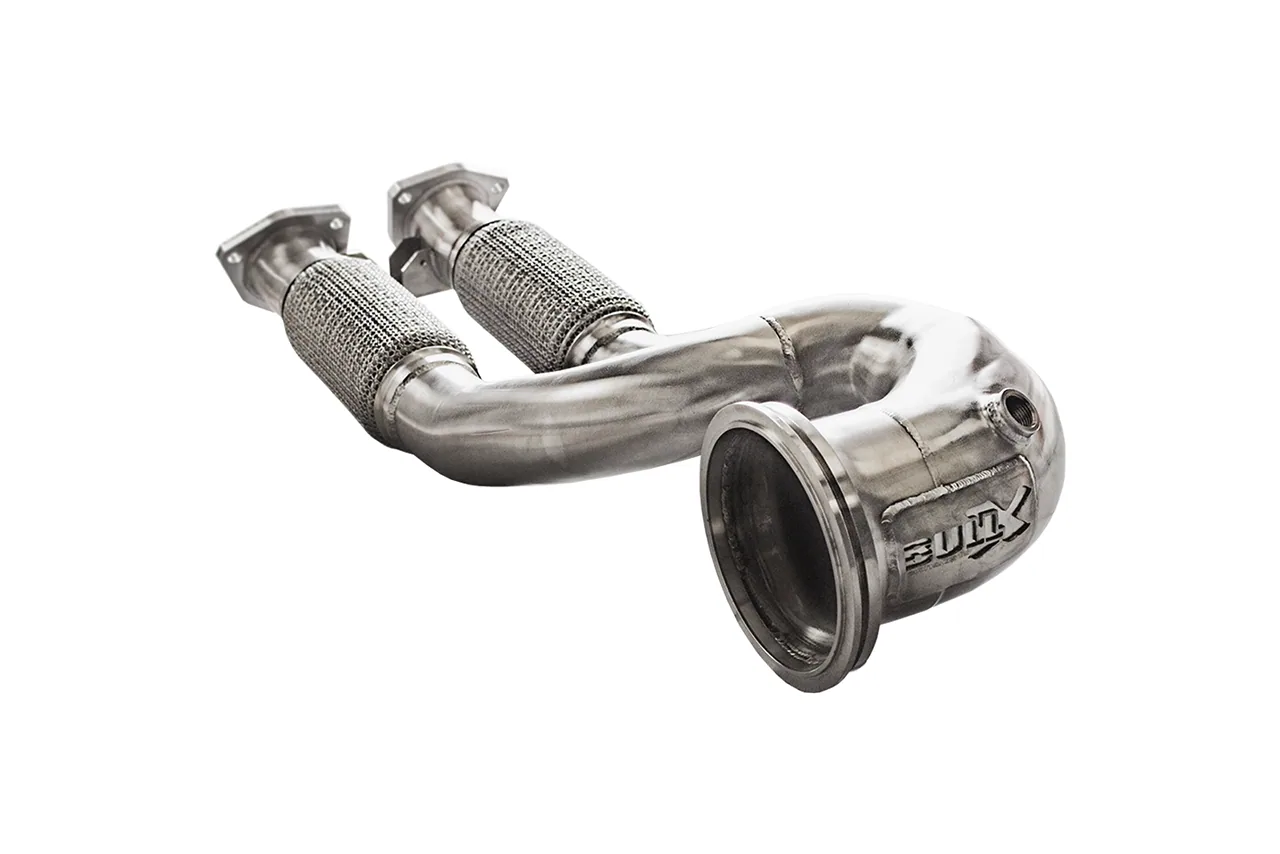

Bull-X catalyst replacement pipe for Audi RS3 8V quattro 367 PS

The HG Motorsport Pre Cat Eliminator (catalyst replacement pipe) can be used as a 100% replacement for the standard part. Precise fitment and high-quality materials allow straightforward installation. Optimising the diameter, pipe routing and/or catalytic converter can significantly reduce the load on the turbocharger.

The complex design has a technical purpose: it reduces exhaust back pressure and therefore heat build-up in the turbocharger. Unlike simple designs with a tight bend directly after the turbocharger outlet, this pipe provides improved flow. Flow analyses have shown that, despite the absence of a catalytic converter, a tight bend can create greater back pressure than this design.

The cast bend is the only way to achieve the absolute maximum flow and avoid disruptive transitions along the inside of the downpipe. Reduced back pressure and thermal relief provide a noticeable increase in torque and power, earlier response and, at the same time, improved service life.

Technical details

• CAD-designed cast bend developed using 3D flow analyses
• Flange inlet: 112 mm
• Cast bend: 101 mm
• Two-flow design splitting into 2 × 63.5 mm
• Made from stainless steel
• Plug’n’Play solution
• Precise fitment; easy replacement of the original component
• High-quality materials
• Made in Germany
• Manufactured in-house
• Flow-optimised and performance-enhancing
• Improved durability and turbocharger response
• Optimal evacuation of exhaust gases
• No disruptive edges at the transitions
• Designed and tested using computer analysis and on a rolling-road dynamometer
• No further heat build-up at the turbocharger, resulting in lower thermal load
• Improved turbocharger response and a measurable, slight increase in power

Road use: This version is not permitted for use on public roads and is intended exclusively for racing. Of the catalytic converters and catalyst replacement pipes offered, only the HJS catalytic converter with EG approval is permitted for use on public roads.

Suitable for: Audi RS3 III (8V).

Manufacturer’s vehicle data

• Bull-X Pre Cat Eliminator Audi RS3 8V quattro 367PS

Original product name by HG Motorsport (»z.B.« = e.g.). Please check model, year and engine of your vehicle before ordering; if in doubt, contact us and we will check for you.

Approval

This part has no ECE, ABE or Teilegutachten approval — it is intended for track / off-road use.
