CSR swan neck rear wing for Skoda Octavia 3 (type 5E) saloon

CSR-Automotive Swan Neck GT Wing SHF067 for Škoda Octavia 3 (5E) Saloon

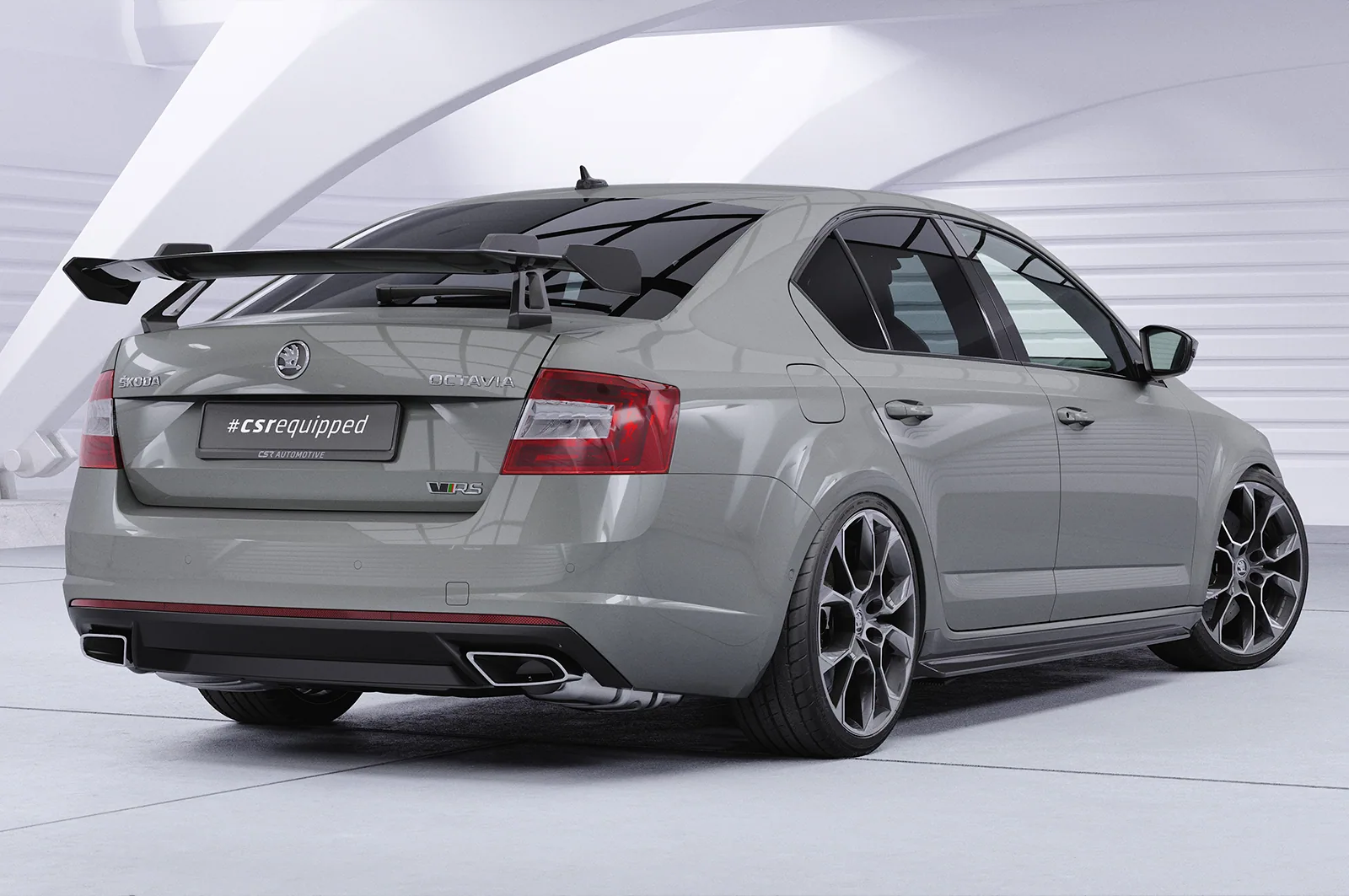

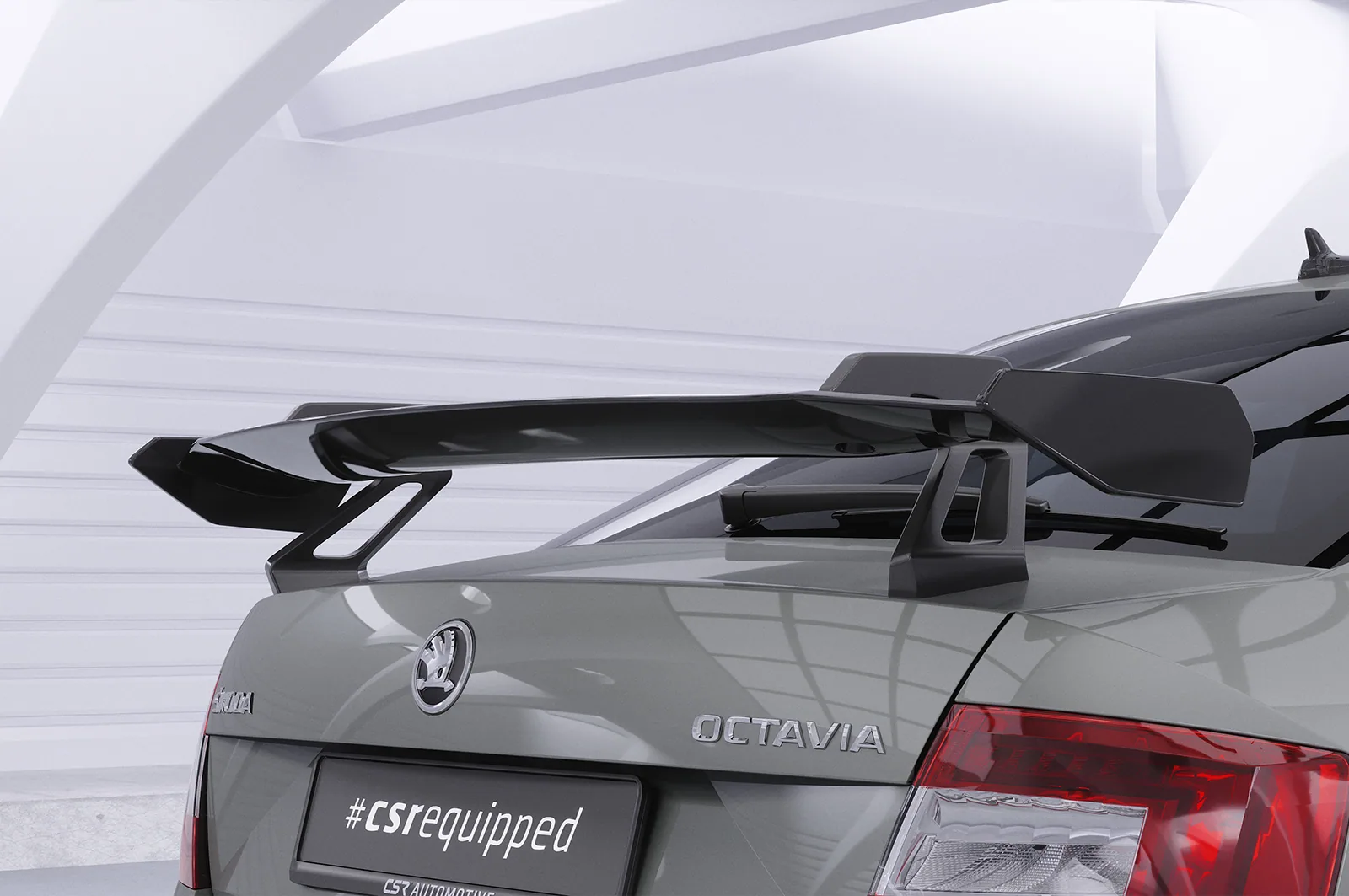

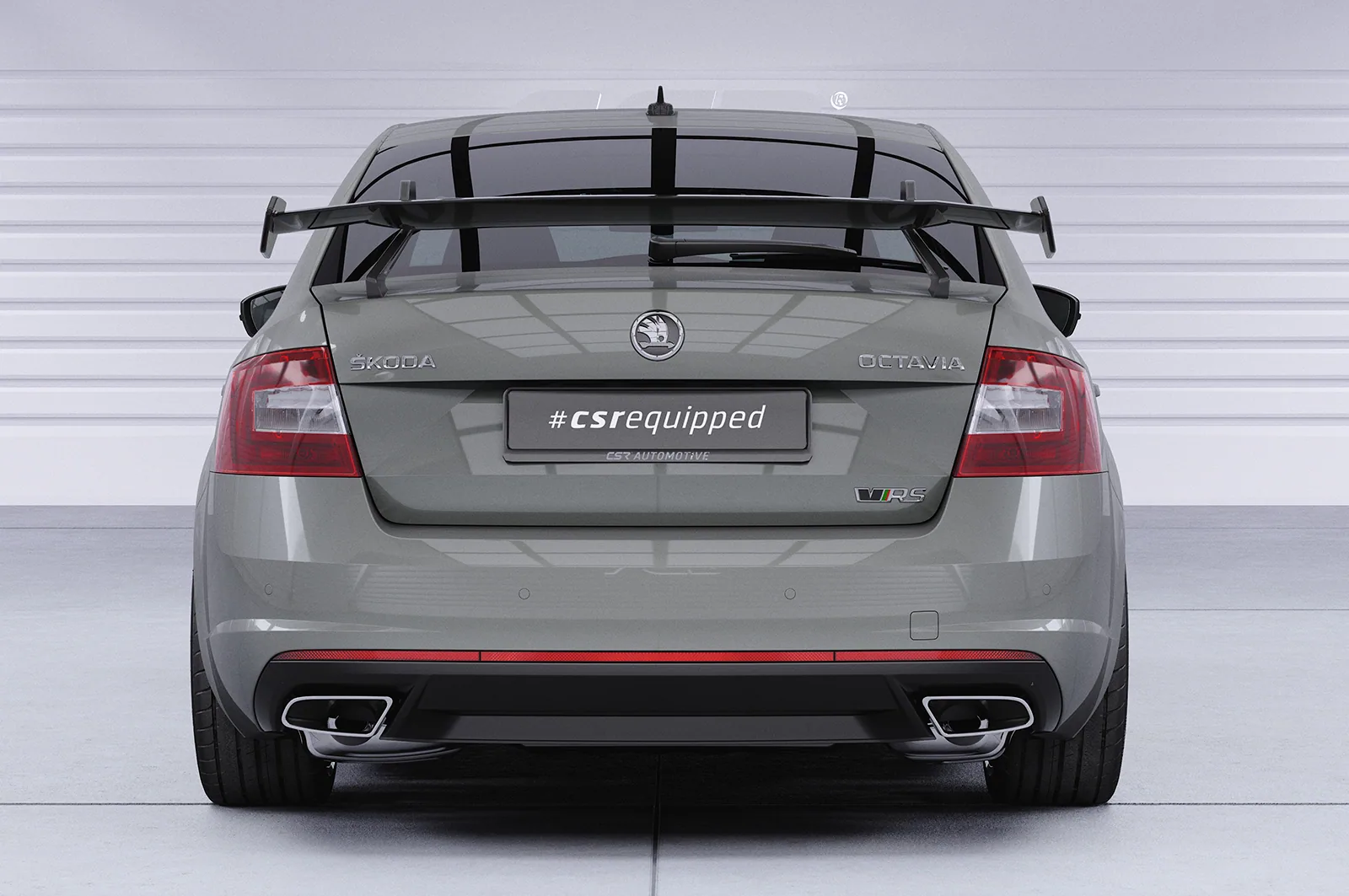

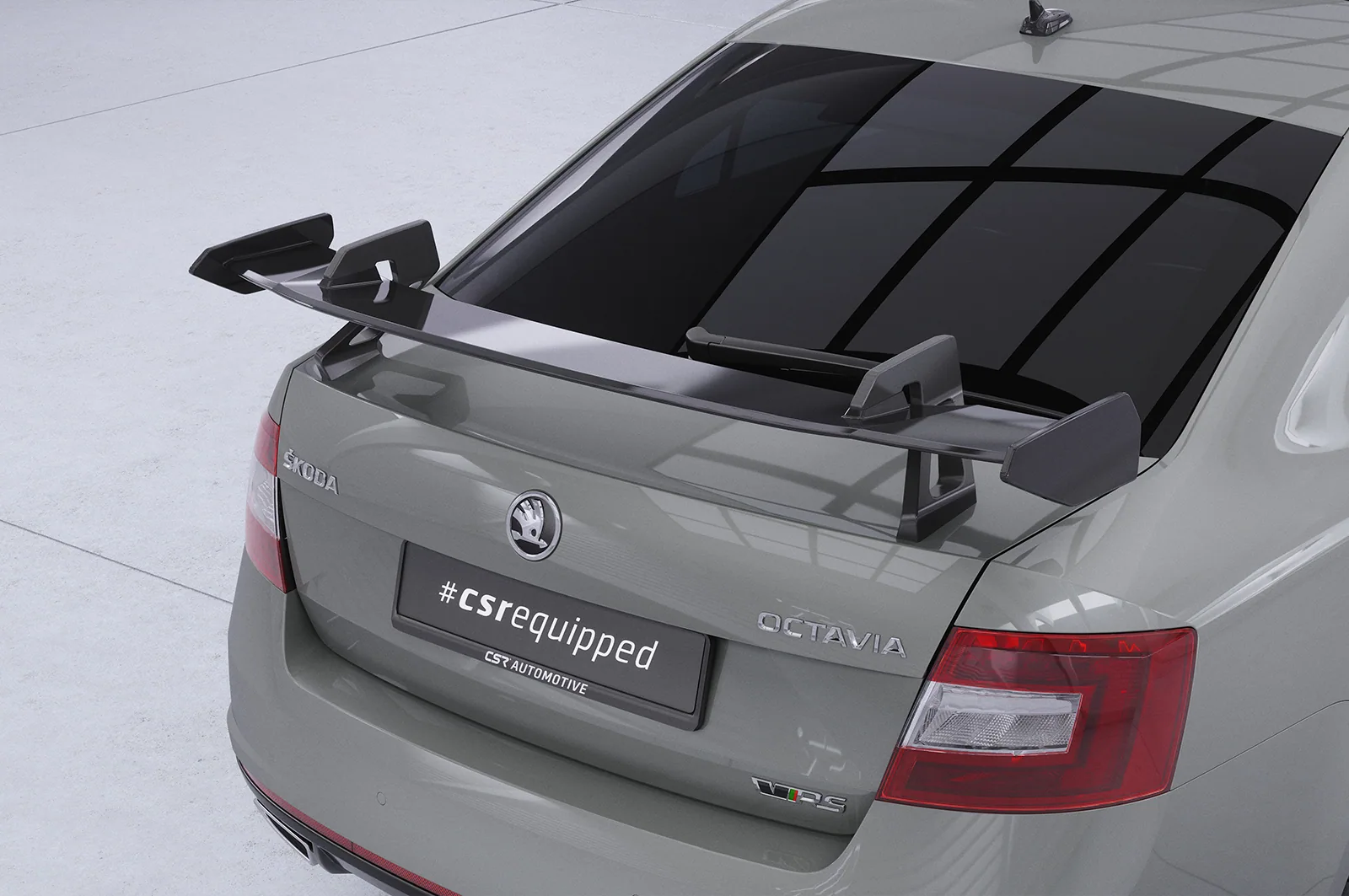

A rear wing with a motorsport look, approved for road use in Germany. The swan neck GT wing stands freely on two mounts above the rear of the Škoda Octavia 3, developed and manufactured in Germany.

• Fits: Škoda Octavia 3 (5E), built 2012 to 2020, body style Saloon
• Note: If your vehicle is factory-fitted with an original rear spoiler lip, it must be completely removed before the swan neck GT wing is fitted
• Approval: With German national parts type approval (Teiletypgenehmigung, TTG), so no entry in the vehicle documents is required in Germany, provided the conditions stated in the approval are met
• For use outside Germany, we recommend checking beforehand with a vehicle testing station or the vehicle registration authority in your country whether the documents are sufficient.
• Material: Wing blade made of GRP, ABS or exposed carbon fibre depending on version (selectable via dropdown), vehicle-specific mounts
• Finish: Mounts painted in brilliant black, wing blade depending on version: GRP unpainted, must be painted; exposed carbon fibre with clear coat; ABS painted in Eco black; ABS painted in Pro brilliant black. The functional Eco finish shows the typical slight texture of ABS; minor visual irregularities under the paint are possible
• Fitting: The mounts are bolted to the tailgate or boot lid, and the wing blade is screwed on underneath the mounts
• Scope of delivery: wing blade, two mounts, fitting material, fitting instructions, TTG document

Vehicle-specific fit instead of a universal part.

Suitable for: Škoda Octavia III (5E3).

Manufacturer’s vehicle data

• Skoda Octavia 3 (type 5E) saloon — 2012–2020

Original data from CSR-Automotive. Please check model, year and version of your vehicle before ordering; if in doubt, contact us and we will check for you.

Wing versions

• GRP wing, unpainted (for painting)
• ABS wing, painted Eco black
• ABS wing, painted Pro gloss black
• Carbon wing (exposed carbon, clear coat)

Bracket

• Design 01
• Design 02

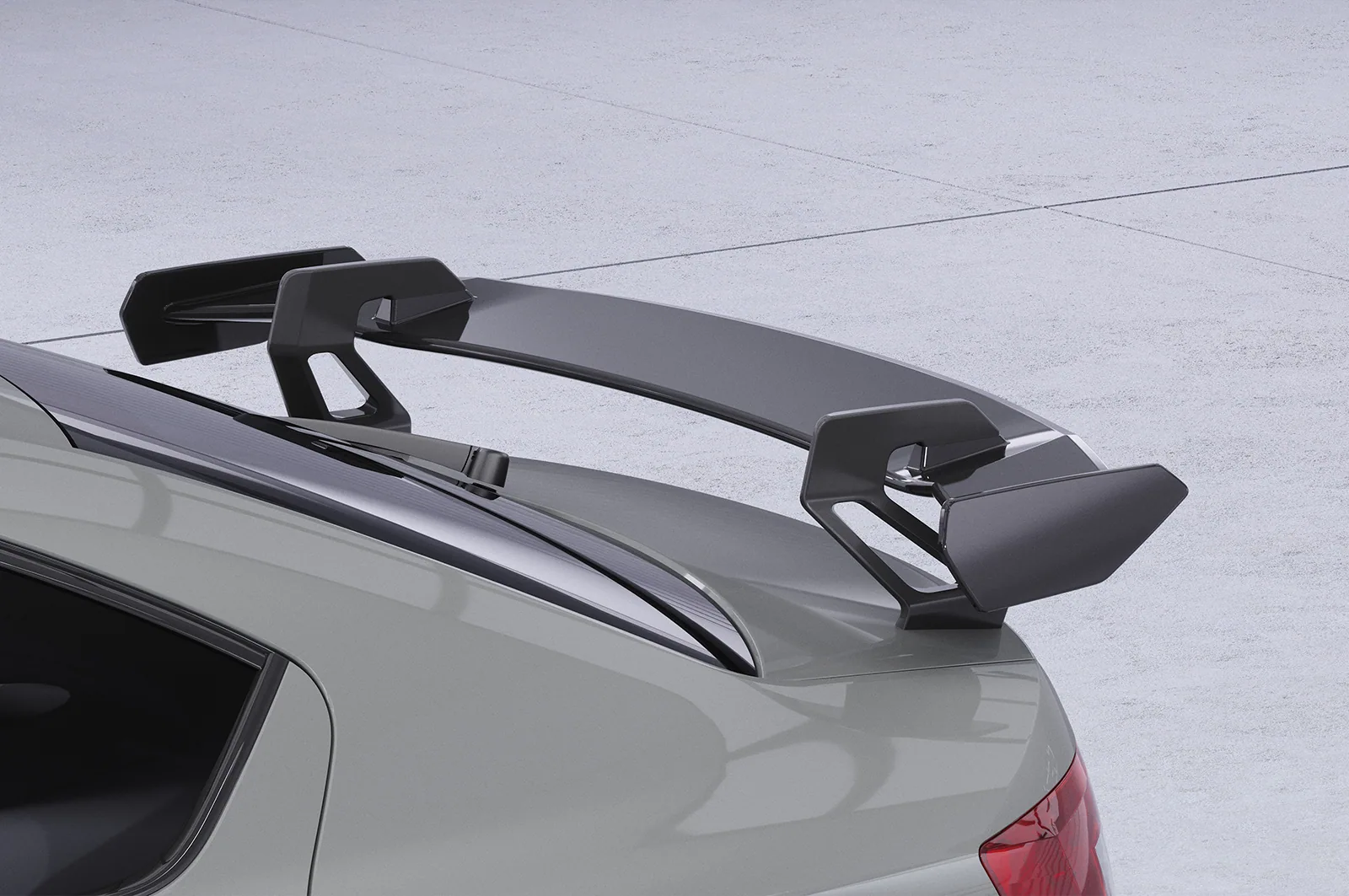

The bracket shape differs between designs — see the pictures.

Approval

This part comes with a German TTG (Teiletypgenehmigung — part type approval); the document is included.
