CTS Turbo BOSS750 V3 is an upgrade turbocharger kit for the MQB platform. It is a completely redesigned version of the popular BOSS 600 kit.
The kit is based on a Gen2 30/76 CHRA with a dual ball bearing and opposite rotation. The housing is carefully cast and machined to be compatible with any exhaust downpipe. This provides a very good response under boost and eliminates potential flow restrictions. The factory wastegate valve geometry is retained, simplifying engine tuning.
The turbocharger outlet measures 2.5″ and is positioned in the original location, making it compatible with a 2.5″ turbocharger outlet pipe. The integrated wastegate valve actuator bracket and oil and water lines for the original location allow easier installation, tuning and reliable operation.
The kit is currently compatible with the CTS Turbo intake system. You can also use a CTS Turbo or other aftermarket diverter valve or blow-off valve; the original DV valve is also compatible.
Note: a 2.5″ turbocharger outlet pipe is required and is not included in the kit.

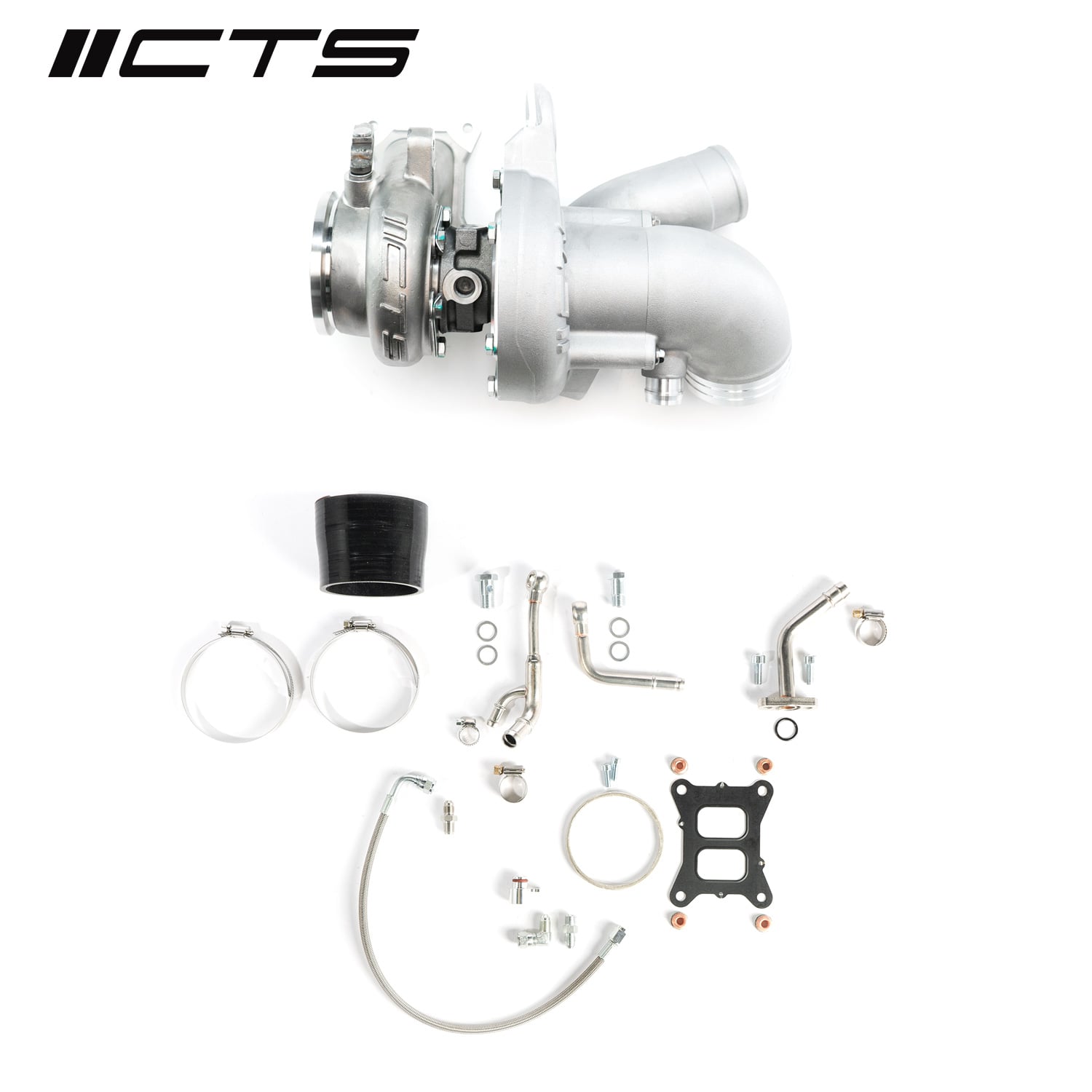

The kit includes
- Gen2 30/76 CHRA with a dual ball bearing and opposite rotation
- CTS Turbo exhaust housing for the original mounting position
- Integrated CTS Turbo wastegate valve actuator bracket
- CTS Turbo oil lines for the original mounting position
- CTS Turbo water lines for the original mounting position
- Cast CTS Turbo 3.25″ turbo intake inlet
- All required mounting hardware
Features
- Up to 750 hp, depending on the fuel system and other engine modifications
- Direct installation without vehicle modifications
- Compatible with the CTS Turbo intake system or a comparable upgrade system; a different coupler is required for intake systems from other brands
- A 2.5″ turbocharger outlet pipe is required
- Compatible with any exhaust downpipe
- Tuning is available for the North American fuel system and upgraded United Motorsport, COBB and Eurodyne fuel systems
Weight: 18.14 kg
Suitable for: Audi A3 III (8V), Audi S3 III (8V), VW Golf VII (5G1).
Approval
This part has no TÜV certification (ABE, TTG or Teilegutachten).
Compatible vehicles (manufacturer data)
| Vehicle | Chassis | Years | Engine |
|---|---|---|---|
| Audi A3 | — | 2015–2020 | — |
| Audi S3 | — | 2015–2020 | — |
| Volkswagen Golf R | — | 2015–2020 | — |
| Volkswagen GTI | — | 2015–2020 | — |
Before ordering, check that the product matches your vehicle (model, year and engine). If in doubt, write to us — we will check for you.
