The front subframe bush insert kit is designed to eliminate knocking and movement, which commonly occurs on MK5 and MK6 platforms due to the stretching and loosening of the original stretch bolts. The inserts reduce the large factory tolerances at the subframe mounting points and correctly centre it in relation to the body.
Features
- Interconnected inserts centre the front subframe in relation to the body.
- Machined from T6061 aluminium.
- The kit includes replacement original stretch bolts.
- Eliminates subframe knocking and movement.

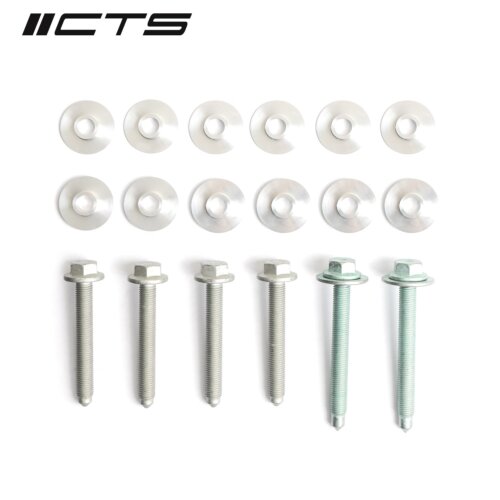

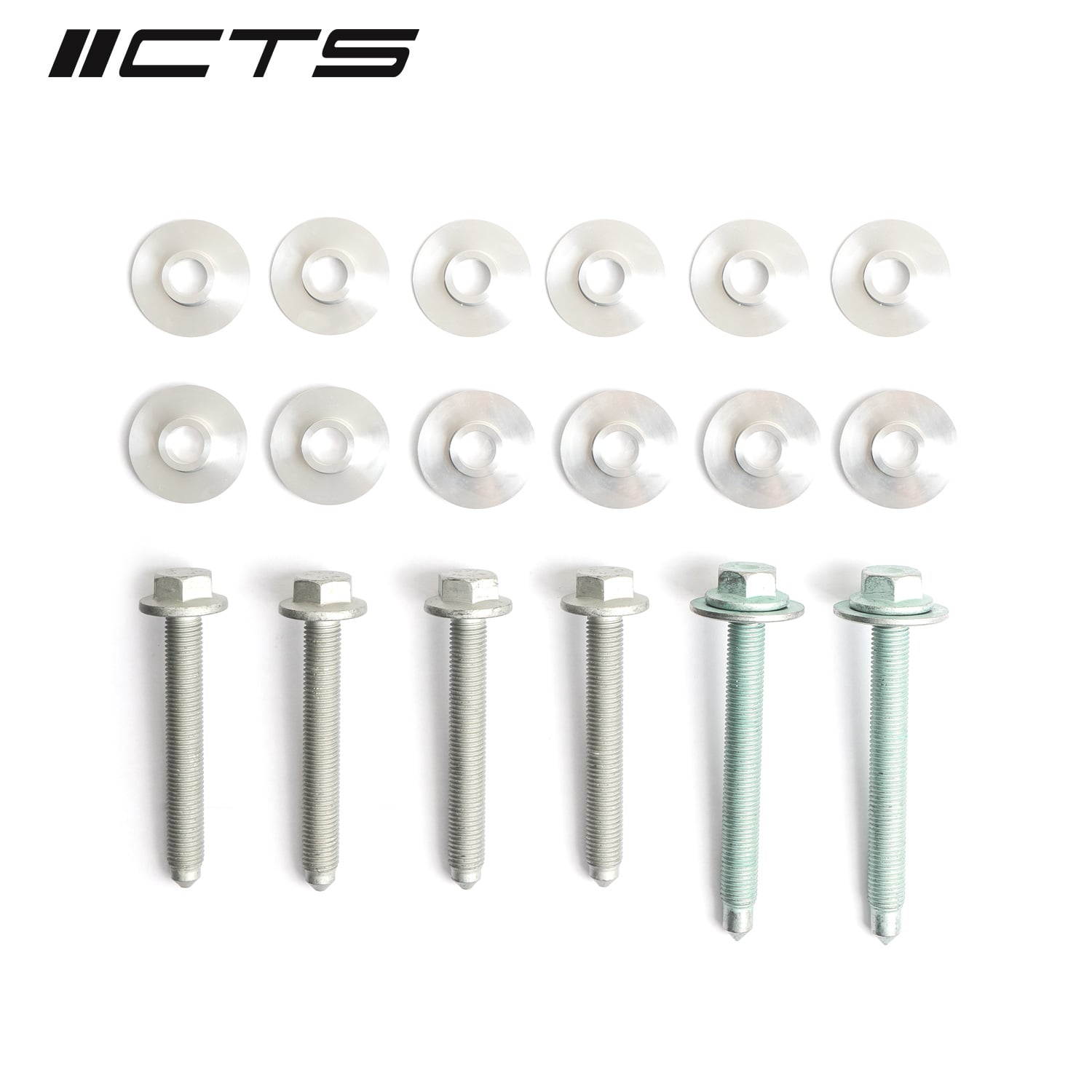

The kit includes
- 6 × upper inserts
- 6 × lower inserts
- 4 × short original bolts
- 2 × long original bolts
Tightening torques
- 18 mm bolts: 70 Nm + 180° – do not reuse them.
- 16 mm bolts: 50 Nm + 90° – they can be reused once.
- 13 mm bolts: 20 Nm + 90° – they can be reused once.
On MK6 models, the kit is suitable only for the aluminium subframe. It is not suitable for vehicles with a steel subframe, including the Jetta with a steel subframe.
Wheel alignment must be carried out after installation.
Suitable for: Audi A3 II (8P), VW CC II (358), VW Golf V (1K) / VI (5K1), VW Jetta III (1K2), VW Passat B6 (3C).
Approval
This part has no TÜV certification (ABE, TTG or Teilegutachten).
Compatible vehicles (manufacturer data)
| Vehicle | Chassis | Years | Engine |
|---|---|---|---|
| Audi A3 | — | 2006–2013 | — |
| Volkswagen CC | — | 2009–2017 | — |
| Volkswagen GOLF | — | 2006–2014 | — |
| Volkswagen Golf R | — | 2012–2013 | — |
| Volkswagen GOLF R32 | — | 2008 | — |
| Volkswagen GTI | — | 2006–2014 | — |
| Volkswagen JETTA | — | 2005–2016 | — |
| Volkswagen JETTA GLI | — | 2006–2016 | — |
| Volkswagen PASSAT | — | 2006–2010 | — |
Before ordering, check that the product matches your vehicle (model, year and engine). If in doubt, write to us — we will check for you.
