The front subframe bush insert kit is designed to eliminate subframe knocking and movement that can occur due to the stretching and failure of the original stretch bolts. The inserts reduce the large factory tolerances at the subframe mounting points and centre it more precisely in relation to the body.
For Golf VI models, the kit is suitable only for vehicles with an aluminium subframe and is not suitable for the Jetta with a steel subframe.
Features
- Interconnected spacer inserts centre the front subframe in relation to the body.
- CNC-machined from T6061 aluminium.
- 4 replacement original stretch bolts and 2 upgraded ARP bolts.
- Eliminates subframe knocking and movement.

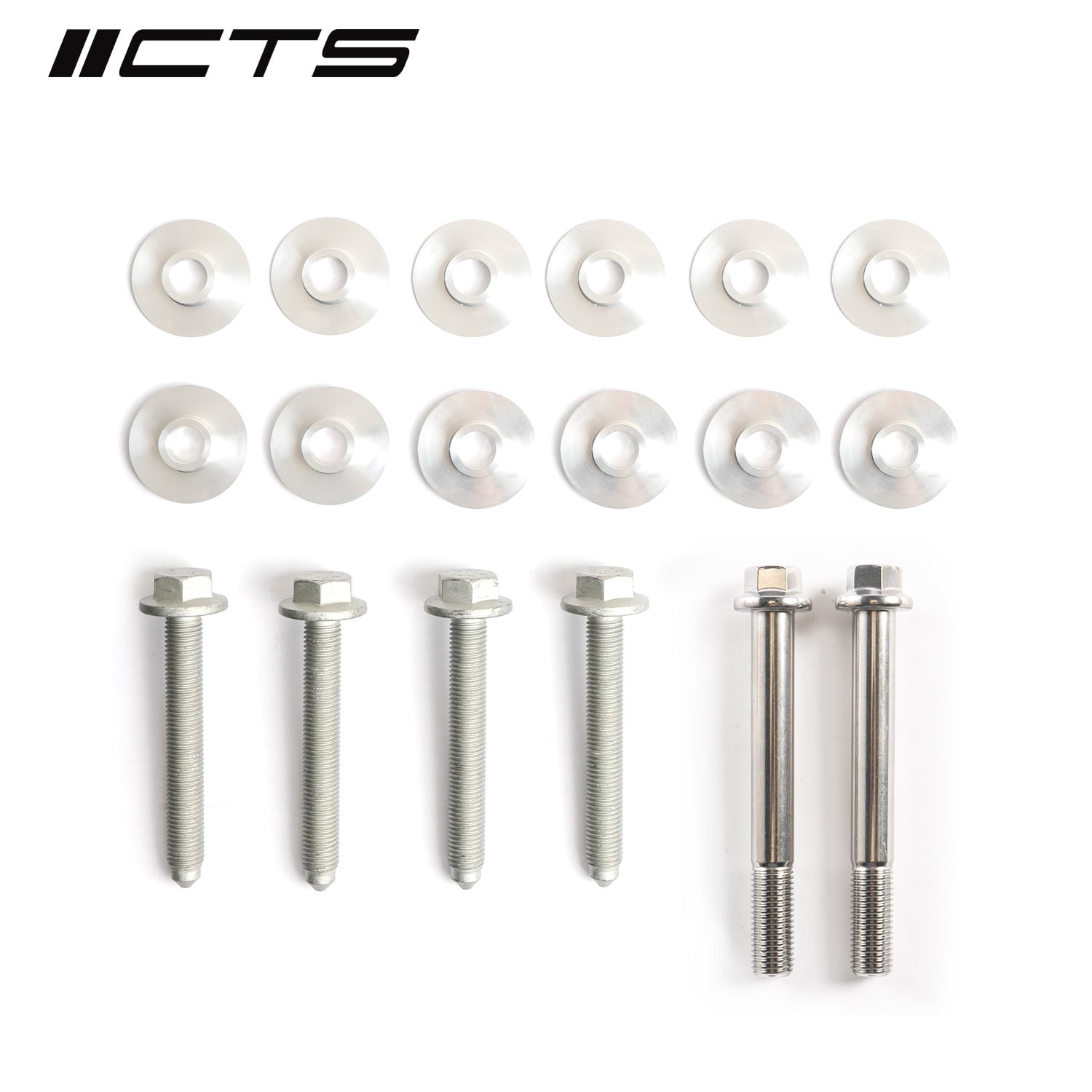

The kit includes
- 6 upper inserts
- 6 lower inserts
- 4 short original bolts
- 2 long ARP bolts
Tightening torque
- ARP bolts: 85 Nm; they can be reused.
- 18 mm bolts: 70 Nm + 180°; do not reuse them.
- 16 mm bolts: 50 Nm + 90°; they can be reused once.
- 13 mm bolts: 20 Nm + 90°; they can be reused once.
Suspension alignment must be carried out after installation.
Suitable for: Audi A3 II (8P), VW CC II (358), VW Golf V (1K) / VI (5K1), VW Jetta III (1K2), VW Passat B6 (3C).
Approval
This part has no TÜV certification (ABE, TTG or Teilegutachten).
Compatible vehicles (manufacturer data)
| Vehicle | Chassis | Years | Engine |
|---|---|---|---|
| Audi A3 | — | 2006–2013 | — |
| Volkswagen CC | — | 2009–2017 | — |
| Volkswagen GOLF | — | 2006–2014 | — |
| Volkswagen Golf R | — | 2012–2013 | — |
| Volkswagen GOLF R32 | — | 2008 | — |
| Volkswagen GTI | — | 2006–2014 | — |
| Volkswagen JETTA | — | 2005–2016 | — |
| Volkswagen JETTA GLI | — | 2006–2016 | — |
| Volkswagen PASSAT | — | 2006–2010 | — |
Before ordering, check that the product matches your vehicle (model, year and engine). If in doubt, write to us — we will check for you.
