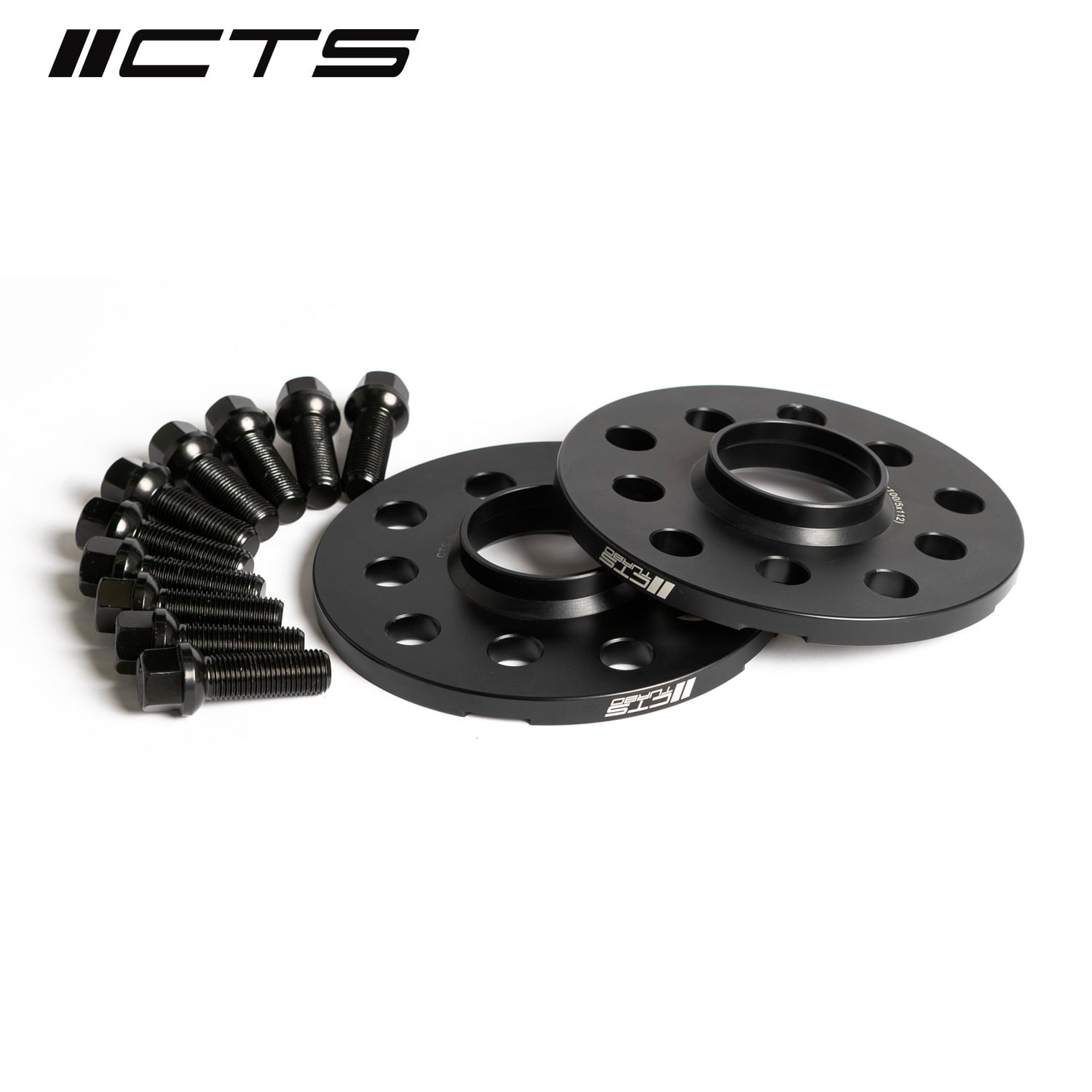

CTS Turbo hubcentric wheel spacers are precision-manufactured from forged 6061 T6 aluminium and black anodised. The spacers increase the track width and give the wheels a more flush appearance with the wheel arch. A wider track can also contribute to improved handling and stability through corners.
The kit includes a pair of spacers and 20 supplied bolts. The spacers are designed exclusively for use with original (OEM) wheels.
Important warning
10 mm spacers are recommended for vehicles with a hub no more than 12 mm high. Make sure that the height of the rear hub in the contact area is less than 12 mm. Otherwise, the hub may not sit correctly in the spacer, which could cause damage to it.
Specifications
- Thickness: 10 mm
- Centre bore: 57.1 mm, hubcentric
- Bolt seat: ball
- Bolt thread: M14 × 1.5 × 37 mm
- Bolt pattern: 5×100 and 5×112
- Bolts: extended black wheel bolts, supplied
- Spacer material: forged 6061 T6 aluminium
- Weight: 1.36 kg
Suitable for: Audi A3 III (8V), Audi RS3 III (8V), Audi S3 III (8V), Audi TT III (FV), Audi Ttrs II (8S), Audi Tts II (8S), VW Golf VII (5G1).
Approval
This part has no TÜV certification (ABE, TTG or Teilegutachten).
Compatible vehicles (manufacturer data)
| Vehicle | Chassis | Years | Engine |
|---|---|---|---|
| Audi A3 | — | 2015–2020 | — |
| Audi RS3 | — | 2017–2020 | — |
| Audi S3 | — | 2022 | — |
| Audi TT | — | 2016–2021 | — |
| Audi TTRS | — | 2017–2021 | — |
| Audi TTS | — | 2016–2021 | — |
| Volkswagen ALLTRACK | — | 2015–2021 | — |
| Volkswagen Golf R | — | 2015–2022 | — |
| Volkswagen GTI | — | 2015–2022 | — |
| Volkswagen PASSAT | — | 2017–2019 | — |
| Volkswagen S3 | — | 2015–2020 | — |
Before ordering, check that the product matches your vehicle (model, year and engine). If in doubt, write to us — we will check for you.
