CTS Turbo intake system for VW Golf R VIII/Audi S3 8Y EVO4

The CTS Turbo intake system is designed for vehicles with the EA888.4 EVO engine and Continental turbocharger. It is suitable for vehicles with subsequent software or hardware modifications where increased intake airflow is required.

The closed airbox works effectively with the original air scoop and supplies cool air to the system. This then flows through a 3.5-inch high-flow air filter with an inverted conical design, improving airflow towards the engine. The 3.5-inch CNC aluminium intake pipe with mandrel bends ensures a smooth flow of cool air and reduces turbulence caused by unnecessary joints.

On a standard vehicle, the system allows an increase in maximum power of 9–13 hp according to the manufacturer’s data. It also provides a more pronounced, race-inspired intake sound.

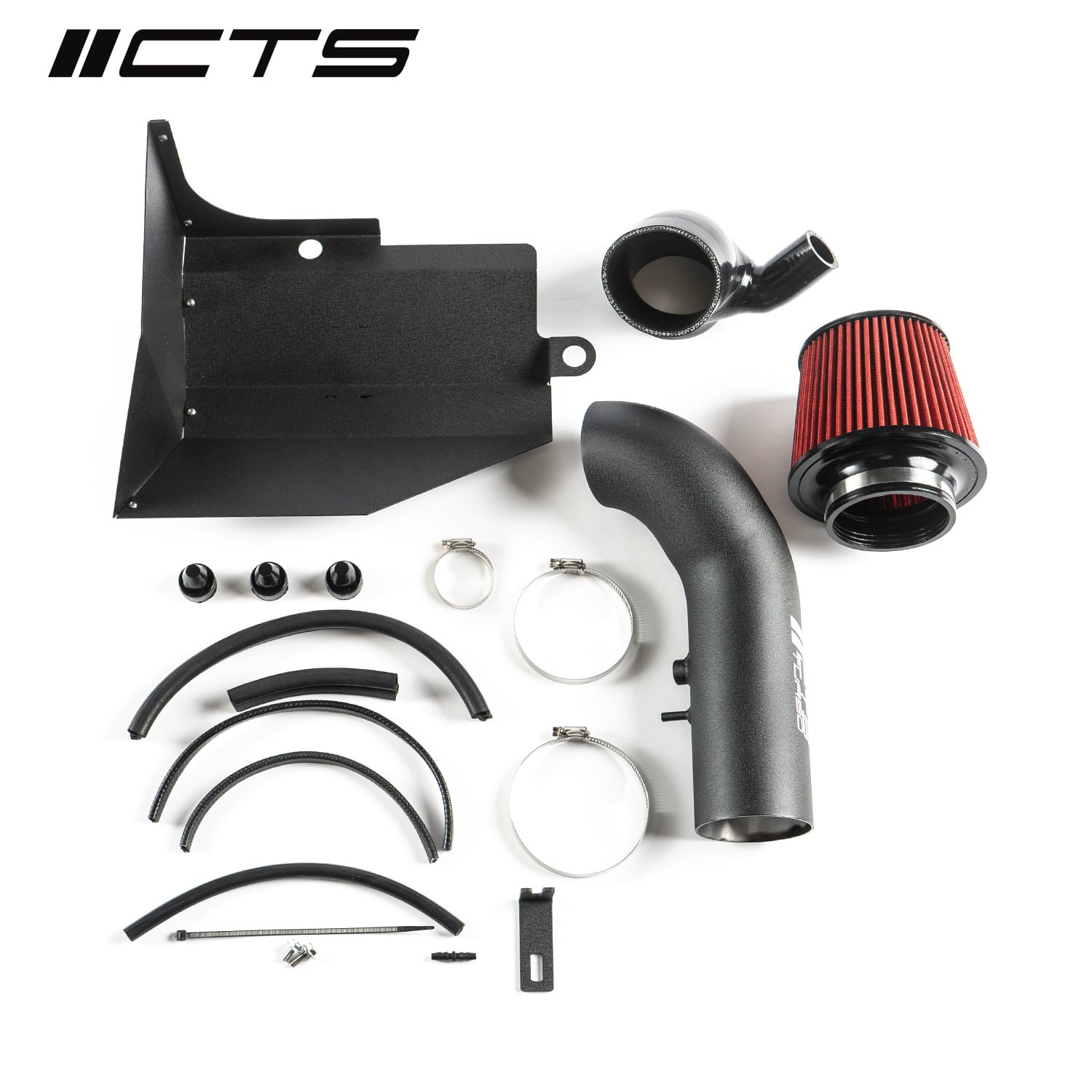

Product details

• High-flow 3.5-inch aluminium pipe with mandrel bends and black powder coating
• Laser-engraved CTS Turbo logo
• 3.5-inch washable air filter with an inverted conical design
• 4-layer silicone joiners with stainless steel hose clamps
• Closed airbox
• Bracket to prevent rattling when the engine moves under torque

Compatibility

For the EA888.4 EVO engine with a Continental turbocharger. Also compatible with the Garrett Pmax turbocharger.

Some Audi S3 8Y vehicles for other global markets are fitted with the older EA888.3 engine (TSI third generation), so this intake system is not suitable for them.

The product is not suitable for the VW Golf GTI VIII or Audi A3 8Y.

Weight: 5.44 kg

Suitable for: Audi S3 IV (8Y), VW Golf VIII (CD1).

Approval

This part has no TÜV certification (ABE, TTG or Teilegutachten).

Compatible vehicles (manufacturer data)

Before ordering, check that the product matches your vehicle (model, year and engine). If in doubt, write to us — we will check for you.
