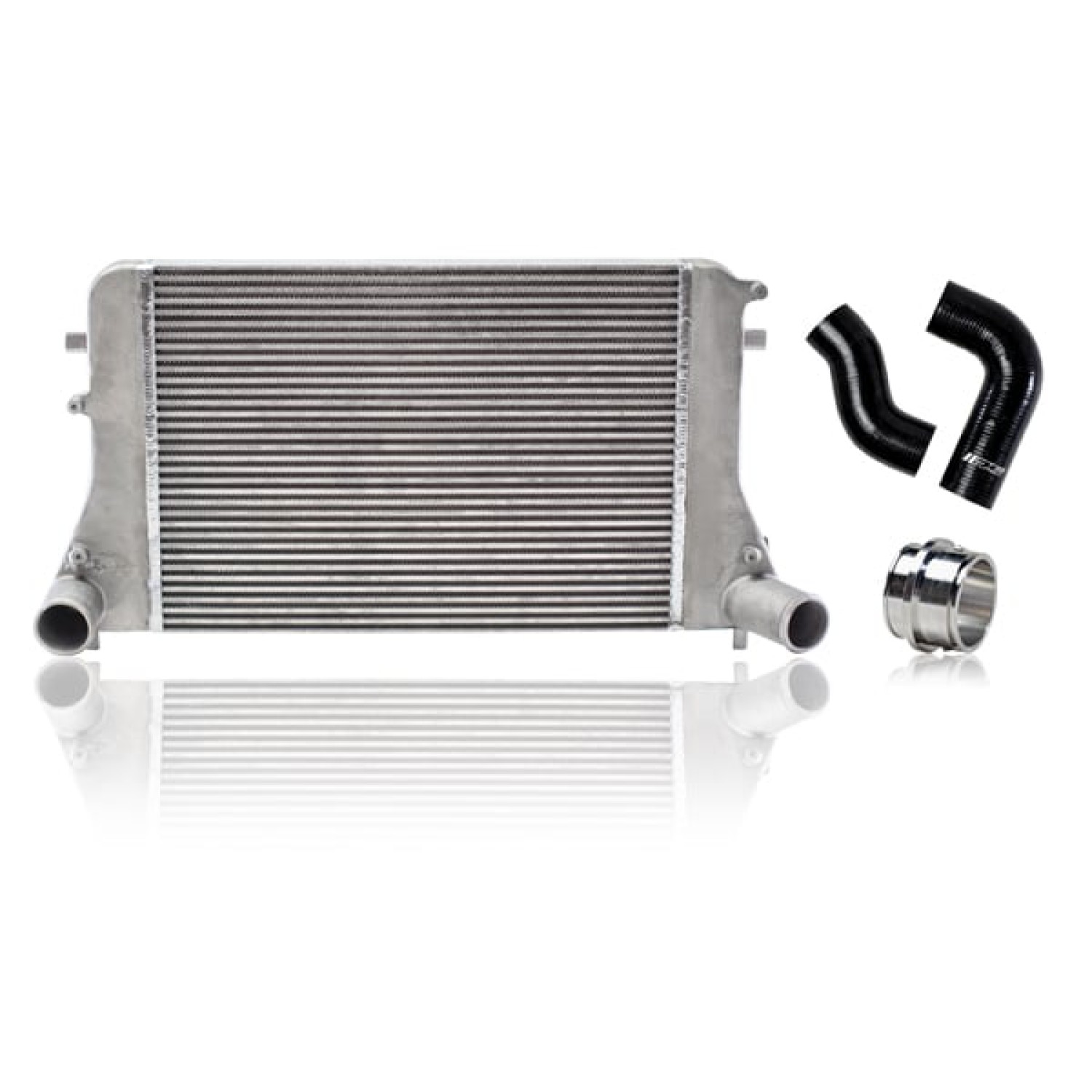

The CTS Turbo front-mounted intercooler (FMIC) kit for the Audi TT/TTS II is designed as a direct replacement for the original front-mounted intercooler. The kit can be installed without shortening or modifying the bumper.
The original intercooler is sufficient at factory boost pressure levels, but when pressure is increased through an ECU upgrade or remap, it has more difficulty managing intake air temperature. Higher intake air temperatures can cause boost pressure cut and ignition timing retard, reducing the vehicle’s power.
CTS Turbo uses a high-efficiency bar-and-plate intercooler core construction that helps reduce pressure drop. A lower pressure drop means that the turbo does not need to work as hard to achieve a given boost pressure level. If the turbo creates 30 psi of boost pressure in the compressor, while the intercooler causes a pressure drop of 10 psi, the pressure measured by the ECU will be (30 psi – 10 psi) = 20 psi.
With an efficient CTS Turbo intercooler, the turbo works under less load to achieve the desired boost pressure. This helps extend the turbocharger’s service life through more efficient operation, while the air after the turbocharger is cooler and denser, allowing more power at the wheels.
Product details
- Efficient bar-and-plate core construction
- Low pressure drop
- Retains factory mounting points
- No bumper shortening or modification of crash bar mounts required
- Designed for power levels above 600 hp
- Core dimensions: 23.00″ length × 2.00″ height × 16.5″ height
- High-efficiency cast aluminium end tanks
- Weight: 18.14 kg
Suitable for: Audi TT II (8J).
Compatible vehicles (manufacturer data)
| Vehicle | Chassis | Years | Engine |
|---|---|---|---|
| Audi TT | — | 2008–2015 | — |
| Audi TTS | — | 2009–2015 | — |
Before ordering, check that the product matches your vehicle (model, year and engine). If in doubt, write to us — we will check for you.
