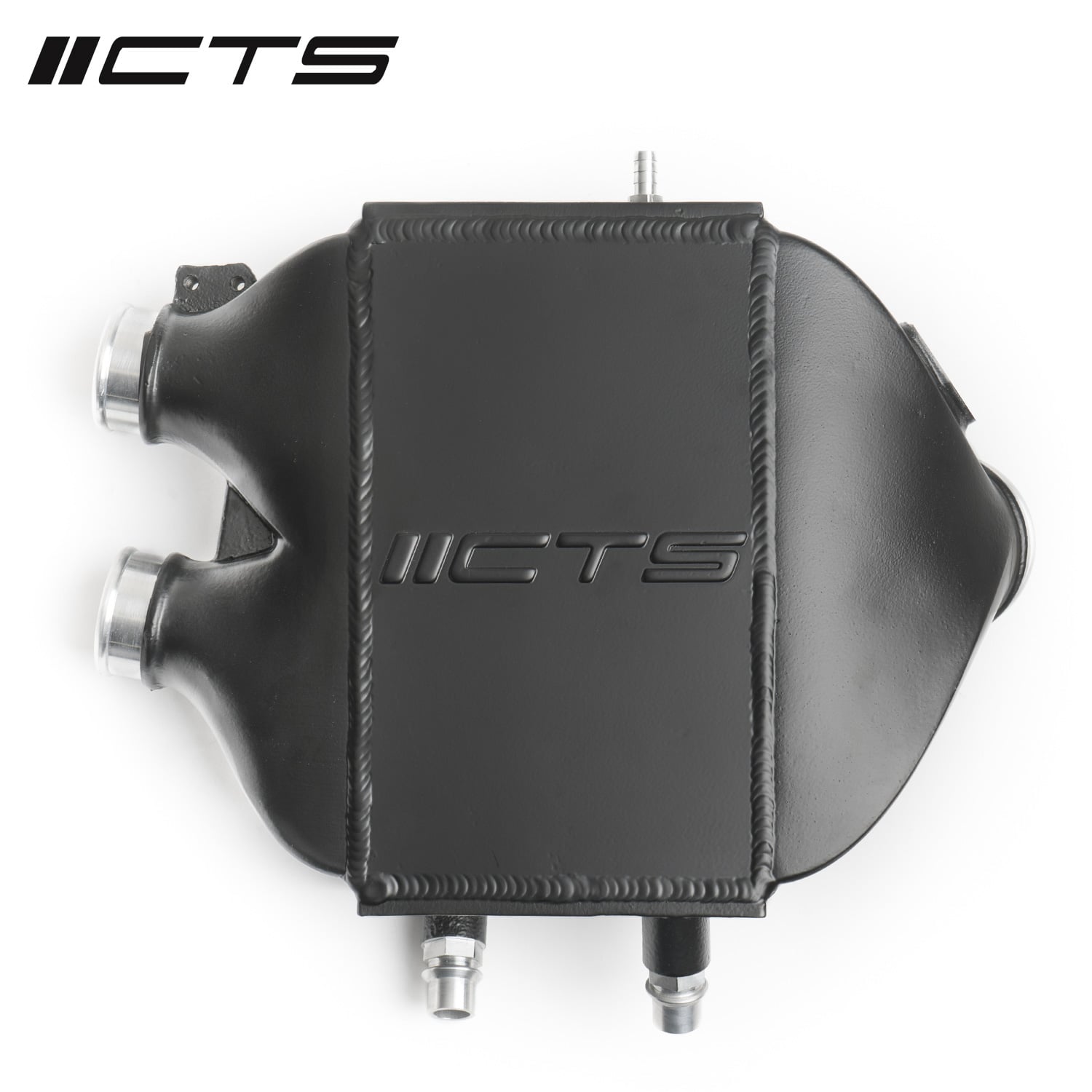

The CTS Turbo air-to-water intercooler is designed for BMW F80/F82/F83/F87 models with the S55 engine.
The factory intercooler is made from plastic, making it prone to cracking, while its core with tubes and fins is inefficient. As a result, it is not designed for boost pressures higher than factory levels. CTS Turbo experienced this weakness in practice and developed its own solution.
The intercooler is a direct upgrade and replacement for the factory plastic part. The engineers based it on the factory part, which they measured using an in-house CMM measuring system and scanned with a 3D scanner. They then created a working model and optimised it using CAD software.
The intercooler’s proprietary cast aluminium end tanks feature flow-directing fins at the inlet and outlet, ensuring the most even airflow possible and more efficient cooling. The centre section features a high-density bar-and-plate core with two passes (dual pass), covered at the top by a plate with the CTS logo. CNC-machined connections, stainless steel Helicoil threaded inserts at the mounting points, high-quality mounting hardware and silicone connecting hoses are included. The assembly is hand-welded in-house and pressure-tested before being finished with a semi-gloss black powder coating.
The intercooler upgrade lowers intake air temperature (AIT), reducing the possibility of detonation and ignition timing retard.
Features:
- Developed using high-tech precision measuring equipment
- Direct replacement for the factory part
- Proprietary cast aluminium end tanks, optimised using CFD/CAD, with flow-directing fins
- High-density bar-and-plate core with two passes (dual pass)
- CNC-machined connections
- Mounting hardware for installation included
Weight: 9.07 kg
Suitable for: BMW 4 I (F32/F33/F36/F82/F83), BMW M2 I (F22/F23/F45/F46/F87), BMW M3 VI (F30/F31/F34/F80).
Compatible vehicles (manufacturer data)
| Vehicle | Chassis | Years | Engine |
|---|---|---|---|
| BMW M2C | — | 2018–2021 | — |
| BMW M3 | — | 2015–2020 | — |
| BMW M4 | — | 2015–2020 | — |
Before ordering, check that the product matches your vehicle (model, year and engine). If in doubt, write to us — we will check for you.
