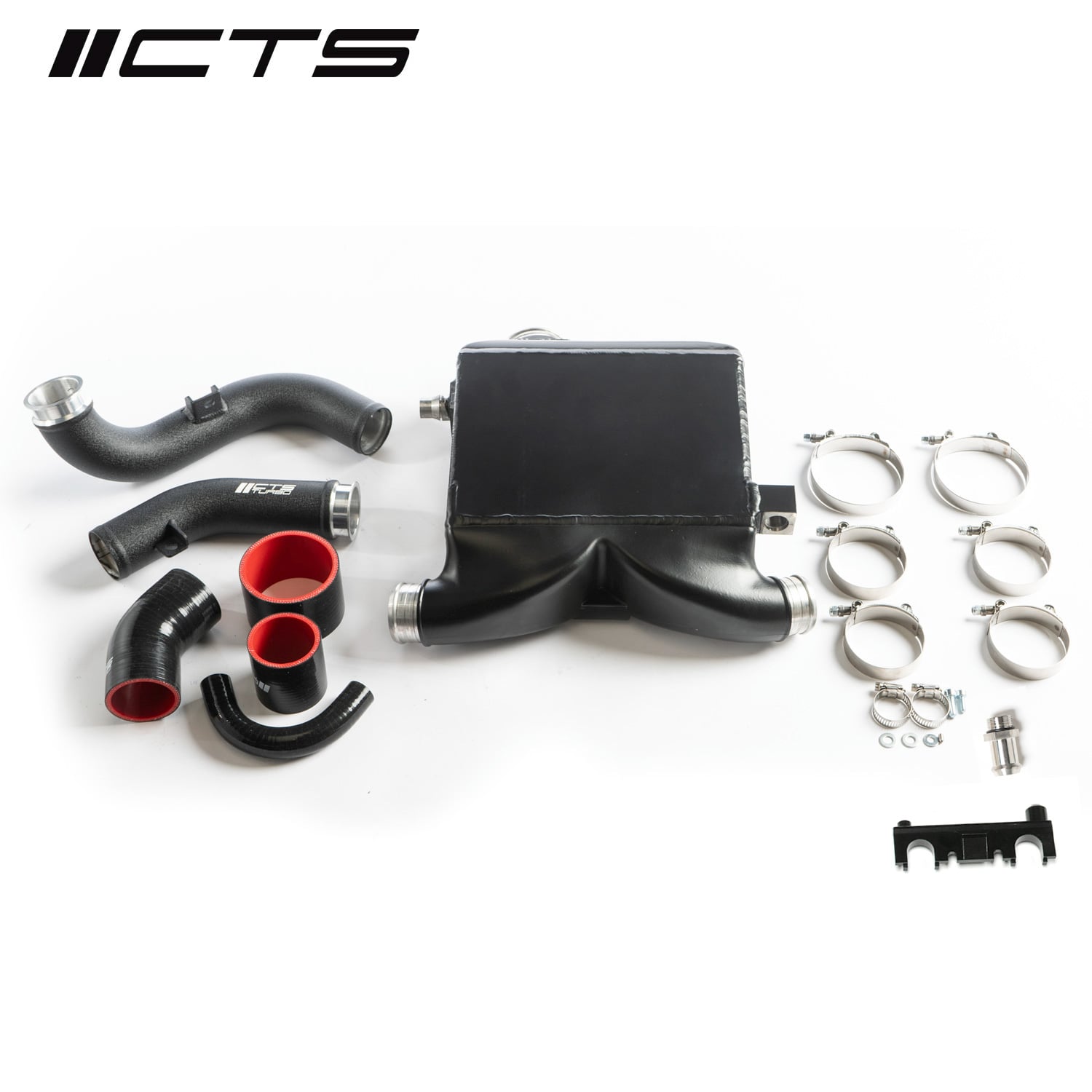

The CTS Turbo intercooler is specifically designed for the 3.0-litre M276 DE 30 AL V6 biturbo engine. The larger cooling surface improves heat dissipation and helps keep the charge air cool and dense, even at increased power levels.
The core measures 297 mm × 222 mm × 95 mm, providing a 134% larger external core volume compared with the standard intercooler. The optimised design ensures efficient heat transfer and good internal airflow. The cast aluminium end tanks are CAD-optimised, while the design has been validated using advanced CFD simulations for efficient cooling and low pressure drop.
The intercooler features a high-quality anti-corrosion coating for long-lasting and reliable operation. It is a direct replacement for the standard charge-air cooler, so no cutting or other modifications are required.
Standard core volume: 207 mm × 200 mm × 65 mm = 2.7 l
CTS Turbo core volume: 297 mm × 222 mm × 95 mm = 6.3 l
Product details:
- Significantly lower intake air temperature (IAT) helps keep the charge air cool and dense.
- Improved engine response and greater potential for increased power, particularly in modified vehicles.
- Lower pressure drop for improved airflow.
- 2.25″ (57 mm) diameter aluminium charge pipes.
- Direct replacement for the standard intercooler with no cutting required.
- 134% larger core volume compared with the standard unit.
- All required mounting hardware is included.
- Replacement for the standard charge-air cooler, Mercedes part number 276-090-02-14.
Compatibility: only for M276 DE 30 AL 3.0 V6 biturbo engines or Mercedes 43 AMG variants with the original part 276-090-02-14.
Installation note: to reinstall the cooling fan when the CTS Turbo intercooler is fitted, the main cooling-system hose must be disconnected on one side. The fan is very close to the intercooler but does not touch it.
Weight: 13.61 kg
Suitable for: Mercedes-Benz C-Class IV (W205), Mercedes-Benz E-Class IV (W213), Mercedes-Benz Glc I (X253), Mercedes-Benz Gle Coupe I (C292).
Compatible vehicles (manufacturer data)
| Vehicle | Chassis | Years | Engine |
|---|---|---|---|
| Mercedes-Benz C400 | — | 2015–2023 | — |
| Mercedes-Benz C43 | — | 2015–2021 | — |
| Mercedes-Benz C450 | — | 2015–2023 | — |
| Mercedes-Benz E43 | — | 2016–2018 | — |
| Mercedes-Benz E450 | — | 2018–2020 | — |
| Mercedes-Benz GLC | — | 2016–2023 | — |
| Mercedes-Benz GLE | — | 2016–2022 | — |
Before ordering, check that the product matches your vehicle (model, year and engine). If in doubt, write to us — we will check for you.
