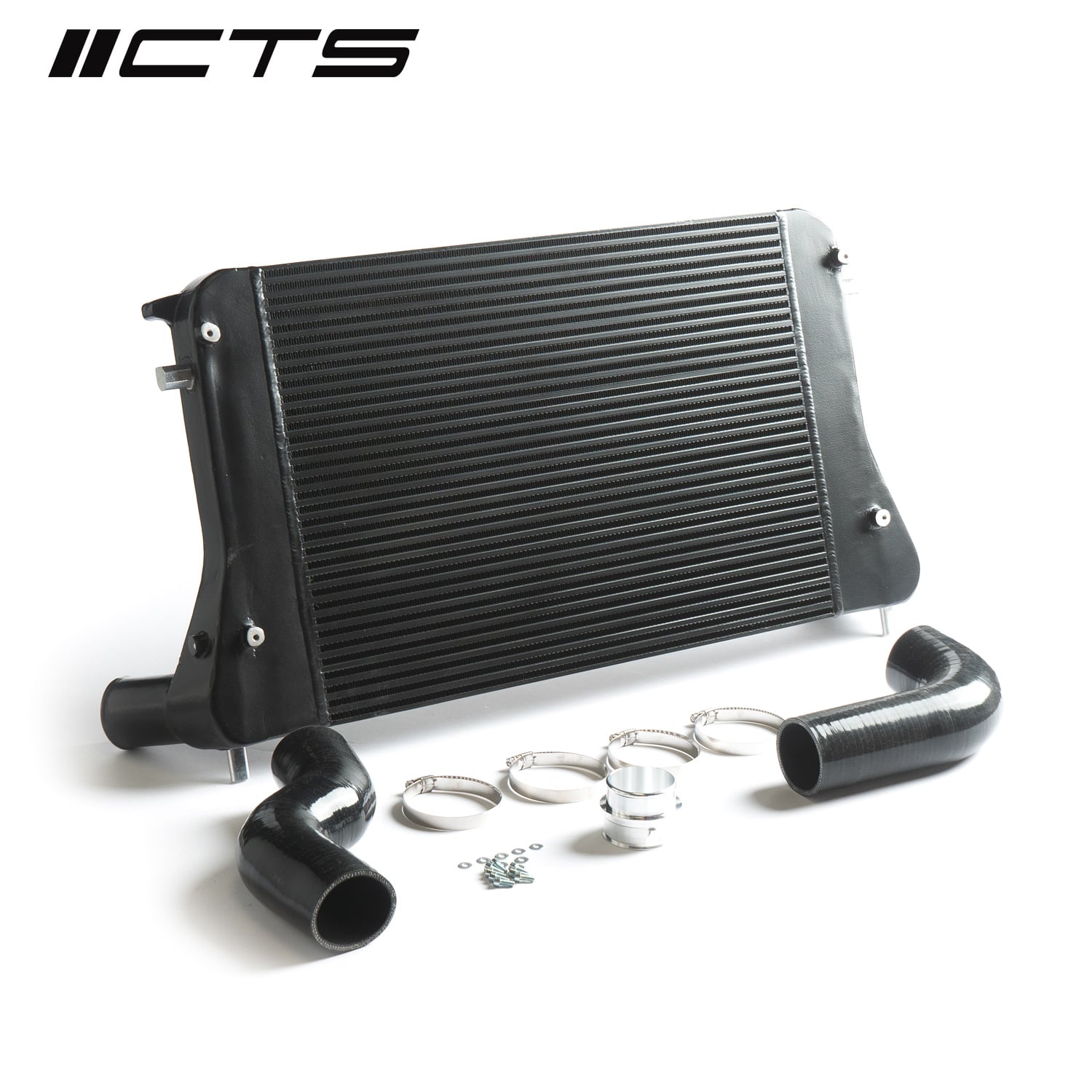

CTS Turbo intercooler for Volkswagen Eos I (1F)

The CTS MK5 2.0T Direct Fit FMIC is designed as a direct replacement for the original front-mount intercooler (FMIC). Installation is possible without cutting or modifying the bumper.

The original FMIC is sufficient at standard boost pressures, but after increasing boost pressure through an ECU upgrade or remapping, it has more difficulty managing charge-air temperature effectively. Higher charge-air temperatures can cause boost cut and a reduction in ignition advance, reducing vehicle power.

CTS’s direct-fit FMIC uses a high-efficiency bar-and-plate core that helps reduce pressure drop. A lower pressure drop means that the turbo does not need to work as hard to achieve a given boost pressure. If the turbo produces 30 psi of boost pressure in the compressor section and the intercooler causes a pressure drop of 10 psi, the pressure measured by the ECU will be 20 psi (30 psi – 10 psi).

With an efficient CTS FMIC, the turbo does not need to work as hard to achieve the desired boost pressure. This provides two benefits: more efficient operation extends the turbocharger’s service life, while the charge air at the turbocharger outlet is cooler and denser, transferring more power to the driven wheels.

Product details

• Efficient bar-and-plate construction
• Low pressure drop
• Uses factory mounting points
• No cutting of the bumper or crash support brackets
• Suitable for power levels over 600 HP
• Core dimensions: length 23.00 × height 2.00″ × height 16.5″
• High-efficiency cast aluminium end tanks

Suitable for: VW Eos I (1F).

Compatible vehicles (manufacturer data)

Before ordering, check that the product matches your vehicle (model, year and engine). If in doubt, write to us — we will check for you.
