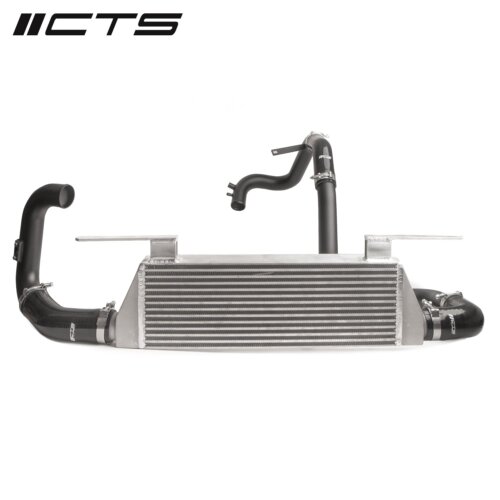

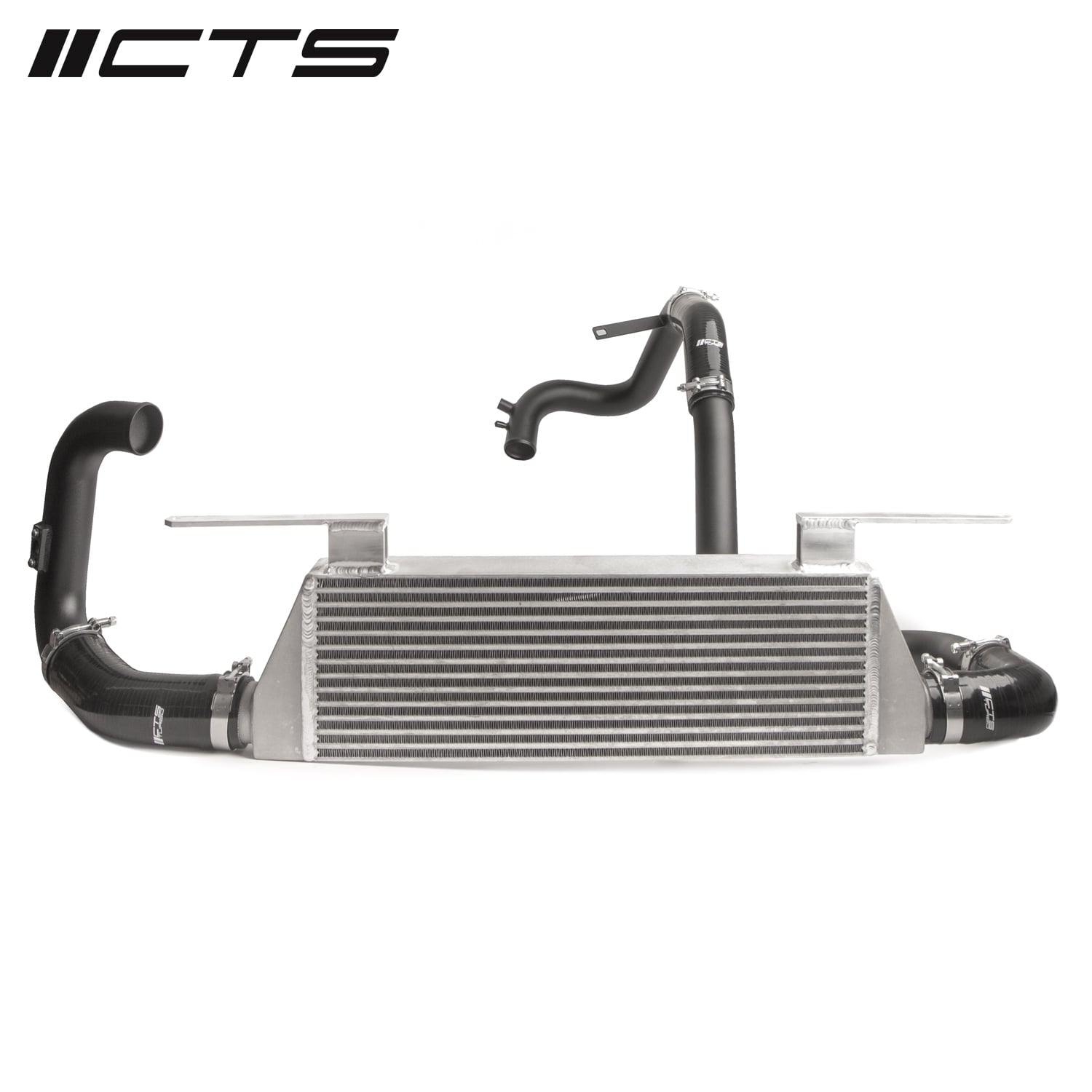

The CTS Turbo TT180 FMIC kit for the first-generation Audi TT with the 1.8T engine is suitable for front-wheel-drive (FWD) and Quattro vehicles, whether standard or modified. Compared with the factory setup and competing solutions, it provides significantly more efficient cooling.
Improved cooling is provided by the high-density intercooler core and cast aluminium end tanks. All pipes feature a bead-rolled edge, reducing the risk of boost hoses coming off or leaking. The kit also includes stainless steel piping, 4-ply silicone couplers and stainless steel T-bolt clamps.
The intercooler has a pressure-tested core, cast aluminium end tanks and is designed for up to 450 hp at the crankshaft. Core dimensions are 25.25″ × 8″ × 3″, while the total dimension from one end tank to the other is 35.5″.
The kit can be installed without modifying the factory bumper reinforcement; only a very minor adjustment to the rear section of the bumper cover is required.
Technical data
- For 1.8T engine
- For FWD and Quattro drive
- Performance rating: up to 450 hp at the crankshaft
- Core dimensions: 25.25″ × 8″ × 3″
- Total dimension: 35.5″
- Weight: 19.50 kg
Suitable for: Audi TT I (8N).
Compatible vehicles (manufacturer data)
| Vehicle | Chassis | Years | Engine |
|---|---|---|---|
| Audi TT | — | 2001–2006 | — |
Before ordering, check that the product matches your vehicle (model, year and engine). If in doubt, write to us — we will check for you.
