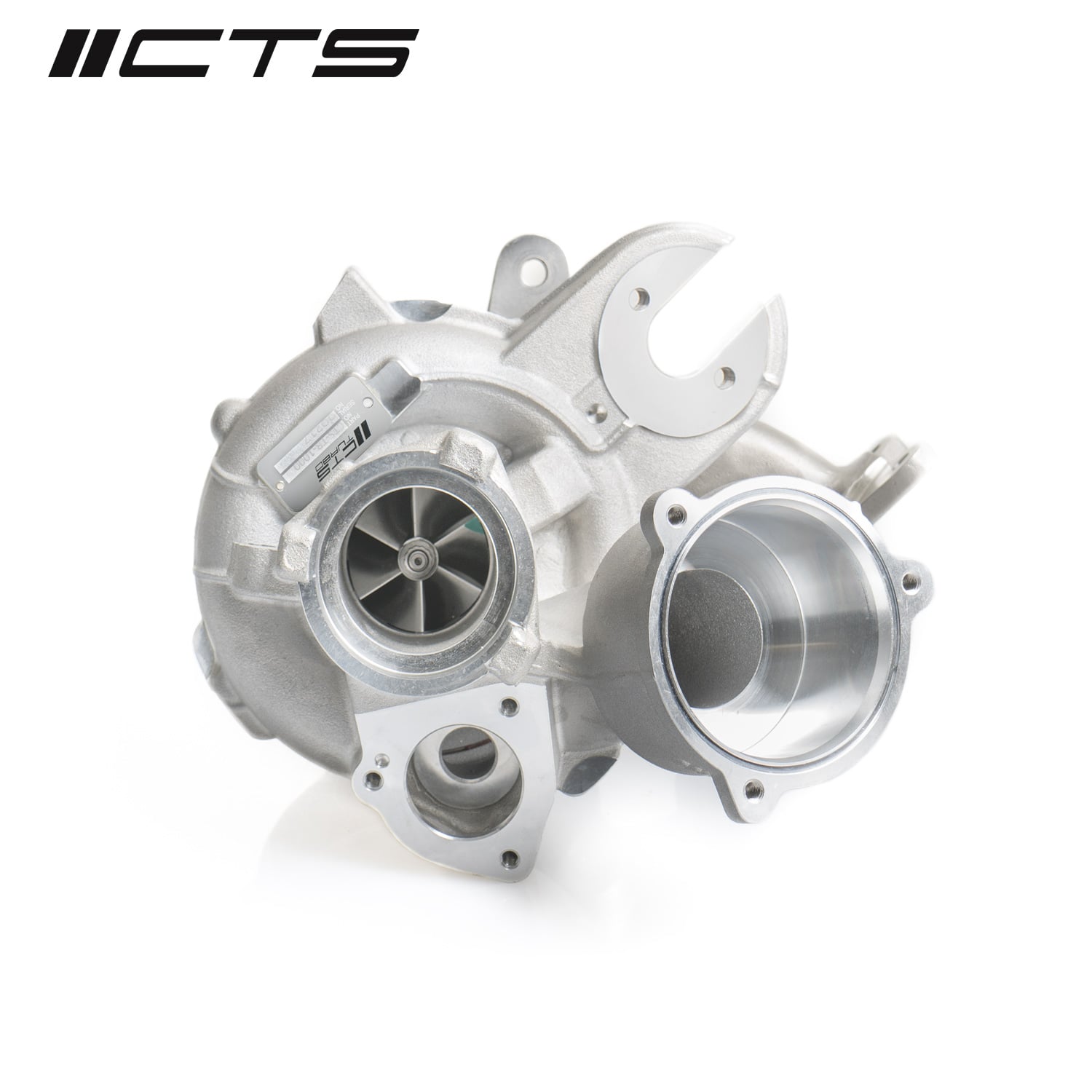

CTS Turbo IS38 is a replacement turbocharger for vehicles on the MQB platform with the EA888.3 engine.
It is fitted to MQB vehicles from 2015–2020 as a direct replacement for the IS38 turbocharger or as an upgrade for IS12 and IS20 turbochargers.
When upgrading from a smaller turbocharger, suitable engine tuning software must be used – check compatibility with the software provider. All software for IS38 is compatible.
CTS Turbo downpipe and CTS Turbo intercooler are recommended for the upgrade.
Features
- Brand-new unit; returning the old core is not required
- Exact replacement for the factory IHI IS38 turbocharger
- Upgraded turbine shaft and bearings
- Stainless steel turbine housing
- Manufactured with dimensional tolerances to OEM specifications
Fits all MQB vehicles with the EA888.3 engine; vehicles with an IS12 or IS20 turbocharger require software adaptation. Compatibility may vary for models intended for other markets.
Installation is carried out as a direct replacement for the factory turbocharger using the original seals and fastening hardware. The diverter valve or BOV and the wastegate actuator must be transferred from the existing turbocharger; they are not included.
Required material not included
- 06L253039A – turbo inlet pipe seal
- 5Q0253115B – turbo outlet seal
- WHT007210 – turbocharger mounting nuts (4 pieces)
- N90067202 – turbocharger oil pipe O-ring (2 pieces)
- WHT006112 – turbocharger oil pipe seal
- WHT006113 – turbocharger oil pipe seal
- WHT006114 – coolant pipe O-ring
- WHT006124 – coolant pipe O-ring
- WHT005558 – coolant pipe O-ring
Important: Always follow the correct procedure for checking and adjusting the wastegate actuator during installation. Change the engine oil and fill the turbocharger with oil before starting the engine. Professional installation is recommended.
Weight: 13.61 kg
Suitable for: Audi A3 III (8V), Audi S3 III (8V), VW Golf VII (5G1).
Approval
This part has no TÜV certification (ABE, TTG or Teilegutachten).
Compatible vehicles (manufacturer data)
| Vehicle | Chassis | Years | Engine |
|---|---|---|---|
| Audi A3 | — | 2015–2020 | — |
| Audi S3 | — | 2015–2019 | — |
| Volkswagen Golf R | — | 2015–2021 | — |
| Volkswagen GTI | — | 2015–2021 | — |
Before ordering, check that the product matches your vehicle (model, year and engine). If in doubt, write to us — we will check for you.
