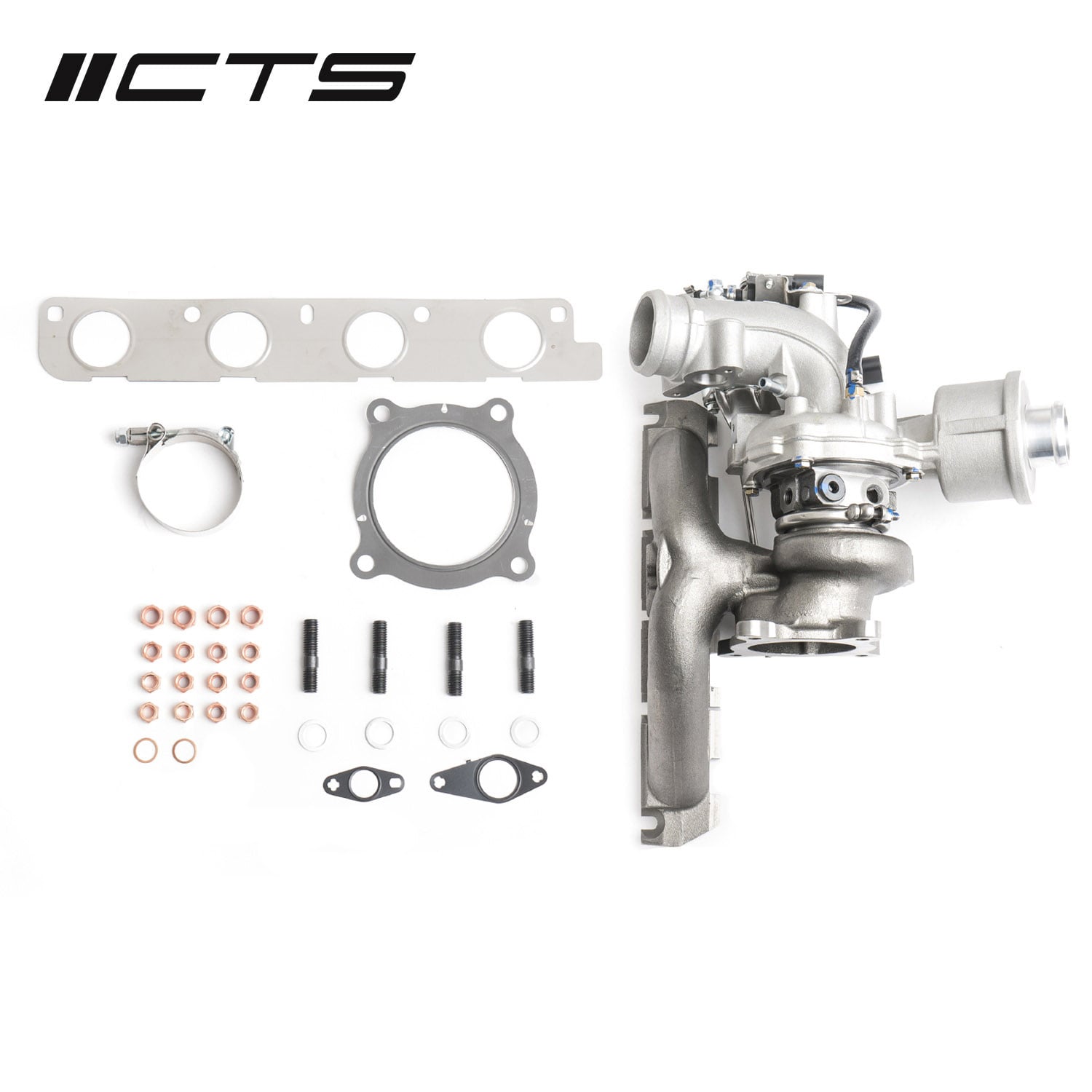

CTS Turbo presents the K04-X hybrid turbocharger upgrade for longitudinally mounted 2.0T FSI/TSI engines.
The compressor housing is designed for a larger compressor wheel made from machined aluminium forging, while the exhaust housing is adapted for the machined K04 turbine wheel. Unlike solutions where a larger CHRA is installed in a smaller factory housing, the K04-X is designed as a complete system with appropriately sized housings.
High-quality castings are CNC-machined for replacement of the factory turbocharger. No additional parts are required for installation, apart from supporting modifications.
Due to the performance-oriented nature of this upgrade, supporting modifications are required. Use with the factory exhaust system and factory intercooler is not recommended.
With the appropriate software calibration and supporting modifications, the turbocharger supports up to 400 hp according to the manufacturer.
Features
- CTS-specification hybrid K04 CHRA with reinforced thrust bearings
- Compressor wheel made from machined aluminium forging, 48.5/61 mm, in a 6+6 configuration (MFS – machined from solid)
- Machined K04 turbine wheel
- Compressor and turbine housings specifically developed for the K04-X; not a modified factory housing
- OEM+ manufacturing tolerances
- VSR high-speed dynamic balancing
- Direct replacement for the factory turbocharger
- OEM installation kit included
- Compatible with software designed specifically for the hybrid K04
Required additional parts
- Software calibration for the hybrid K04
- High-flow catalyst and downpipe from CTS Turbo or another manufacturer
- Performance intake system from CTS Turbo or another manufacturer
- Intercooler from CTS Turbo or another manufacturer
- For the B7 A4, an upgraded high-pressure fuel pump (HPFP) and injector kit are required
Weight: 15.88 kg
Suitable for: Audi A4 II (B6/B7) / III (B8), Audi A5 I (B8), Audi Q5 I (8R).
Approval
This part has no TÜV certification (ABE, TTG or Teilegutachten).
Compatible vehicles (manufacturer data)
| Vehicle | Chassis | Years | Engine |
|---|---|---|---|
| Audi A4 | — | 2006–2016 | — |
| Audi A5 | — | 2009–2016 | — |
| Audi ALLROAD | — | 2009–2017 | — |
| Audi Q5 | — | 2009–2016 | — |
Before ordering, check that the product matches your vehicle (model, year and engine). If in doubt, write to us — we will check for you.
