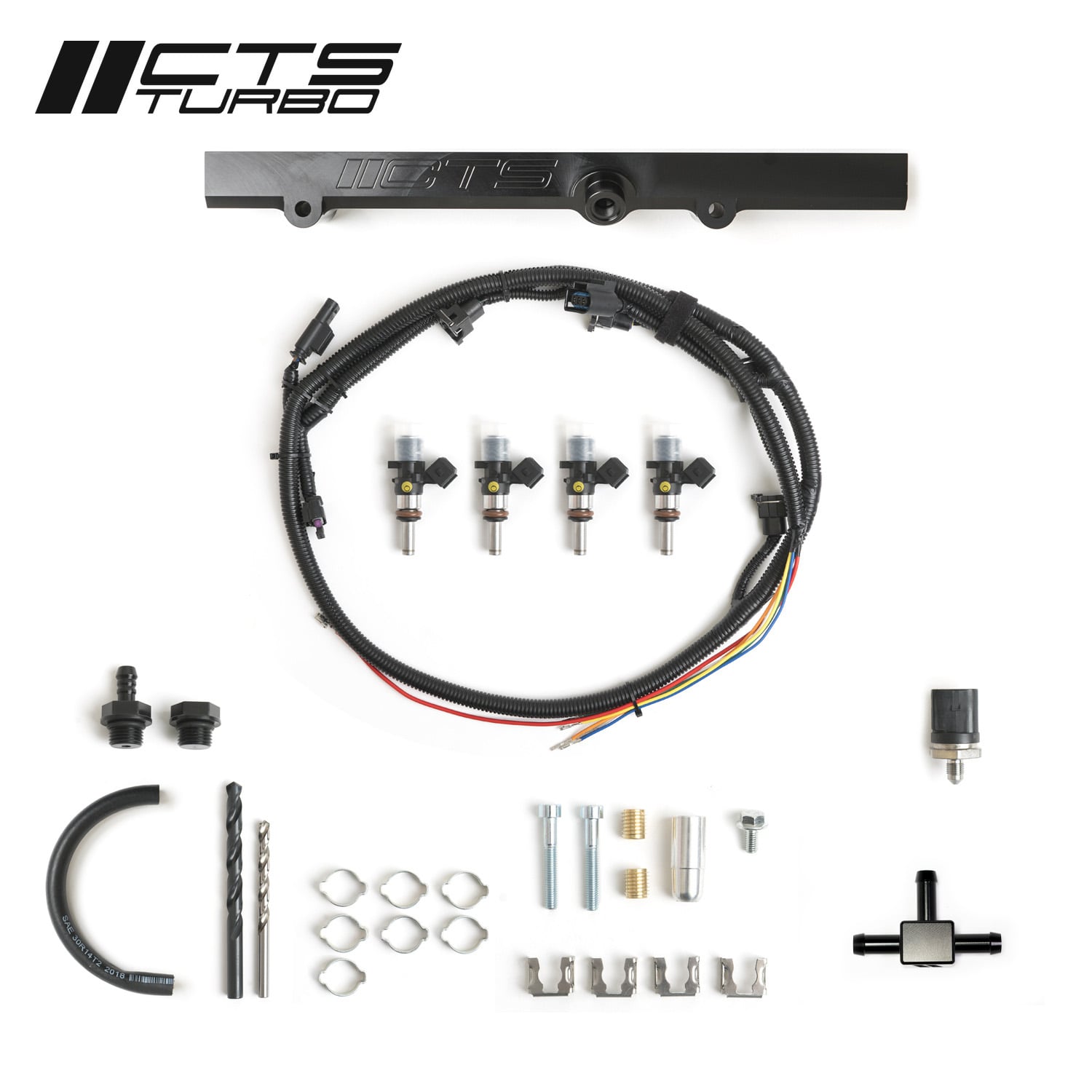

The kit contains everything required to install port injection (MPI) in MQB vehicles with the EA888.3 engine. It allows port injection to be added to the factory intake manifold for the North American market, with dedicated ECU software calibration for MPI required for operation.
The high-flow fuel rail, made from machined aluminium, is based on the factory part, enabling correct installation and accurate fuel pressure readings. The kit is primarily intended for high-performance MQB builds with a larger turbocharger.
Important: the intake manifold must be modified and the fuel system must be changed. The intake manifold must be removed and modified, and wiring connections to the original ECU are also required. Installation should be carried out by an experienced specialist.
Suitable engine tuning software is required.
Features
- High-flow fuel rail made from machined aluminium, hard anodised for use with E85 fuel
- Bosch Motorsport injectors with a flow rate of 980 cm³, suitable for up to 500 hp and compatible with E85 fuel
- Installation based on the factory MPI system design for maximum functionality
- Original fuel pressure sensor
- Wiring kit for integration with the factory ECU
- Mounting hardware included
- Eliminates the need to clean the intake valves
Weight: 2.27 kg
Suitable for: Audi A3 III (8V), Audi S3 III (8V), Audi TT III (FV), VW Golf VII (5G1).
Compatible vehicles (manufacturer data)
| Vehicle | Chassis | Years | Engine |
|---|---|---|---|
| Audi A3 | — | 2015–2020 | — |
| Audi S3 | — | 2015–2020 | — |
| Audi TT | — | 2016–2021 | — |
| Volkswagen Golf R | — | 2015–2021 | — |
| Volkswagen GTI | — | 2015–2020 | — |
Before ordering, check that the product matches your vehicle (model, year and engine). If in doubt, write to us — we will check for you.
