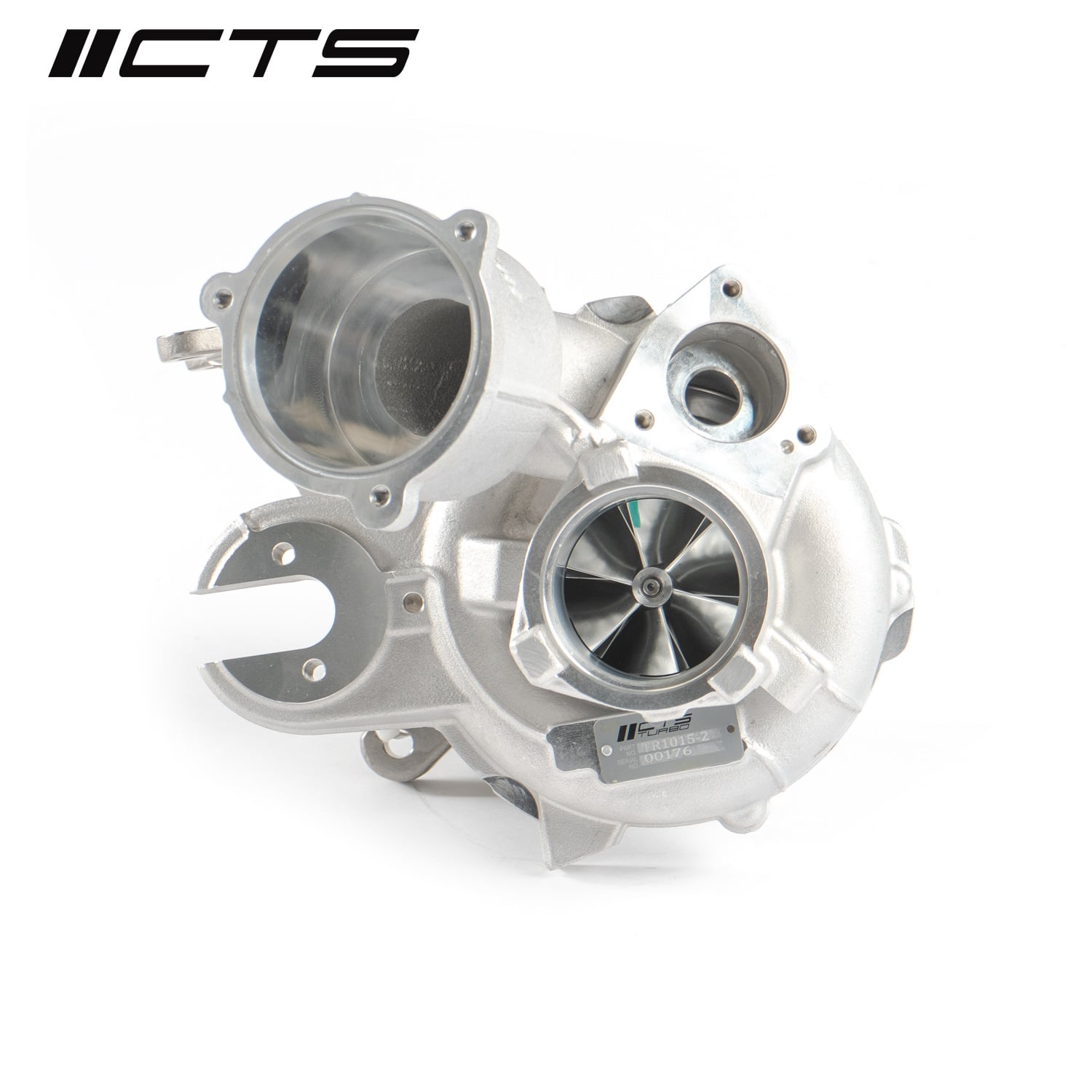

The CTS Turbo hybrid turbocharger with a stainless steel housing is specifically designed for vehicles with the MQB platform.
It is a direct replacement or upgrade for existing IS12, IS20 or IS38 turbochargers. The turbocharger is designed as a direct-fit solution with fast response, strong mid-range torque and reliable operation.
The turbocharger is based on the journal bearing CHRA from the popular IS38 turbocharger, adapted for larger turbine and compressor wheels. The thrust bearings and thrust bearing spacers have been increased by 2 mm to withstand additional loads. The oil passages have been enlarged by 0.72 mm, enabling a more efficient hydrodynamic oil wedge during turbocharger operation. The product has been extensively tested on vehicles at different altitudes and in different climates.
The turbocharger can achieve approximately 600 hp at the crankshaft, approximately 520–530 whp with E85 fuel or 430–460 whp with 93-octane petrol. It is primarily intended for road use, combining fast boost build-up with good mid-range performance.
The recommended boost pressure is 25–28 psi, or less if the fuel system or factory engine is the limiting factor. Do not exceed the recommended range, as this reduces turbocharger efficiency.
Features
- Suitable for a road turbocharger upgrade, with excellent response and fast boost build-up
- Journal bearing CHRA with direct fitment, compatible with all factory oil and coolant hoses
- Milled aluminium compressor wheel with reverse rotation, 53.1 mm inducer, 71–76 mm exducer with extended tip and a 6 + 6 blade configuration
- TD06SL2 turbine wheel made from Inconel with reverse rotation, 54 mm exducer, 60 mm inducer and an 11-blade configuration
- Custom stainless steel turbine housing, precisely manufactured for installation in the factory location
- VSR balancing to OE tolerances
- Compatible with most tuning solutions for popular hybrid turbochargers, including United Motorsport, Eurodyne and COBB
- Compatible with factory or replacement wastegate actuators
- Compatible with factory or aftermarket turbo inlet and outlet pipes; a 2.5-inch turbo outlet pipe is recommended
Compatibility is intended for vehicles with the MQB platform and EA888.3 engine.
Specifications
- Weight: 15.88 kg
Suitable for: Audi A3 III (8V), Audi S3 III (8V), Audi TT III (FV), Audi Tts II (8S), VW Arteon I (3H), VW Golf VII (5G1), VW Jetta IV (162).
Approval
This part has no TÜV certification (ABE, TTG or Teilegutachten).
Compatible vehicles (manufacturer data)
| Vehicle | Chassis | Years | Engine |
|---|---|---|---|
| Audi A3 | — | 2015–2020 | — |
| Audi S3 | — | 2015–2020 | — |
| Audi TT | — | 2015–2020 | — |
| Audi TTS | — | 2015–2020 | — |
| Volkswagen ALLTRACK | — | 2015–2019 | — |
| Volkswagen ARTEON | — | 2018–2021 | — |
| Volkswagen Golf R | — | 2015–2020 | — |
| Volkswagen GTI | — | 2015–2020 | — |
| Volkswagen JETTA GLI | — | 2019–2021 | — |
Before ordering, check that the product matches your vehicle (model, year and engine). If in doubt, write to us — we will check for you.
