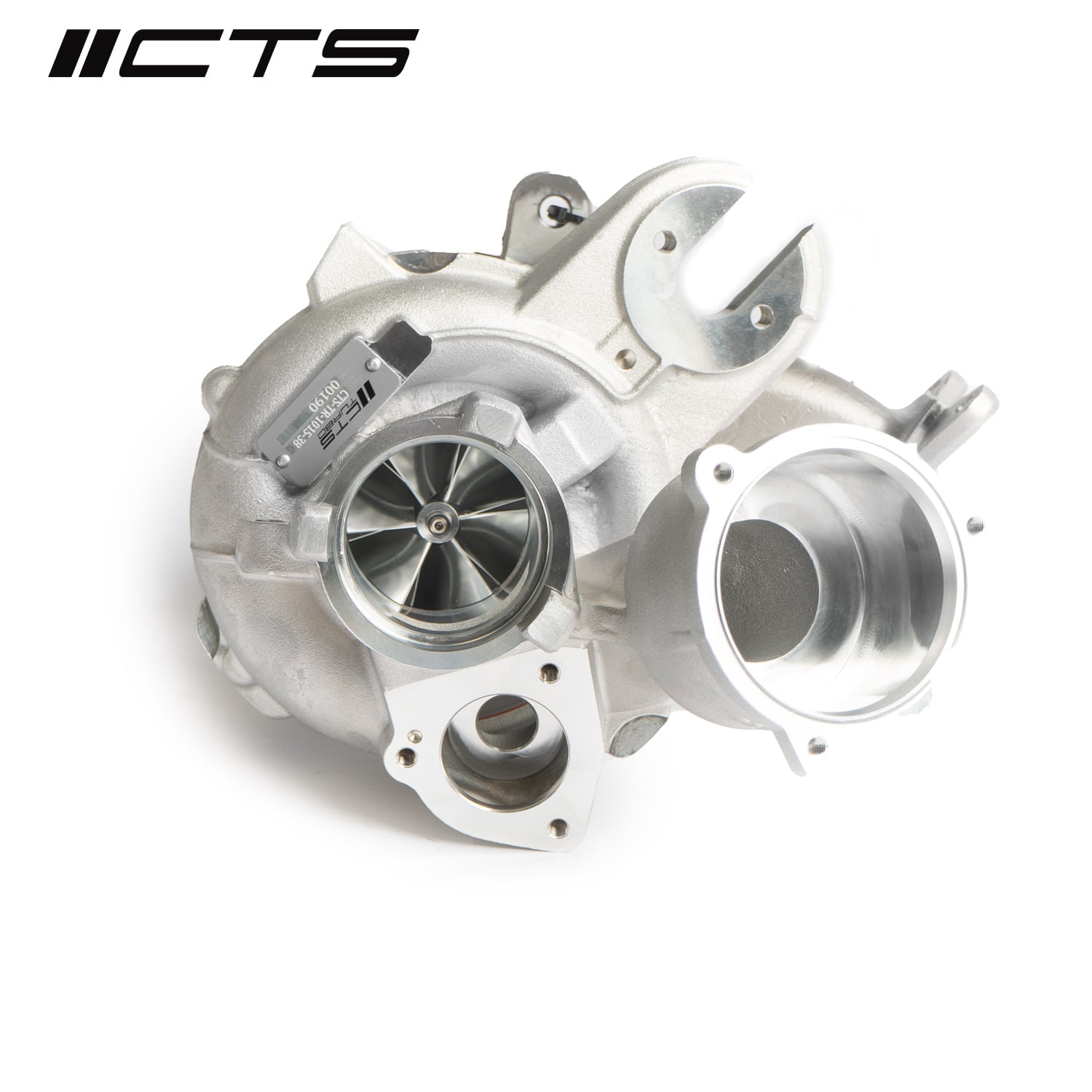

The CTS Turbo JB-640RS journal bearing hybrid turbocharger with a stainless steel exhaust turbine housing is specifically designed for vehicles on the MQB platform.
It is an affordable direct replacement or upgrade for the factory IS12, IS20 or IS38 turbochargers. The turbocharger uses its own journal bearing design and is intended for road use.
The development goal was to achieve more power in the upper rev range compared with the JB-600. A journal bearing CHRA core from the IS38 turbocharger is used, adapted for larger turbine and compressor wheels. The thrust bearings and thrust collars have been increased by 2 mm to withstand the additional load. The oil channels have been increased by 0.72 mm, allowing a more effective hydrodynamic oil wedge during turbocharger operation. The turbocharger has been extensively tested on vehicles from the manufacturer and its partners worldwide, at different altitudes and in different climates.
The turbocharger can achieve approximately 650 hp at the crankshaft, approximately 550–600 whp with E85 fuel and 460–480 whp with 93-octane petrol**. Compared with the JB-600, it responds slightly more slowly during spool-up, but offers more power in the upper rev range.
We recommend boost pressure between 29 and 33 psi, or less if the fuel system or factory engine is the limiting factor. Do not exceed the recommended boost pressure range, as this reduces efficiency.
Features
- Suitable for a road turbocharger upgrade with good spool-up response and mid-range performance.
- Journal bearing CHRA with direct fitment; compatible with all factory oil and coolant lines.
- Billet compressor wheel with reverse rotation, 53.1 mm inducer, 71–76 mm exducer with extended tips and a 6+6 blade design.
- Inconel TD06SL2 turbine wheel with reverse rotation, 54 mm exducer, 60 mm inducer and an 11-blade design.
- Proprietary stainless steel turbine housing, precisely manufactured for factory fitment.
- VSR balanced to OE tolerances.
- Compatible with most tuning solutions for popular hybrid turbochargers, including United Motorsport, Eurodyne and COBB.
- Compatible with factory or aftermarket wastegate actuators.
- Compatible with factory or aftermarket turbo inlet and outlet hoses; a 2.5-inch turbo outlet hose is recommended.
Compatibility applies to vehicles with the EA888.3 engine on the MQB platform. Specifications may differ on ROW models.
Required parts, not included
- Exhaust downpipe for improved performance.
- Upgraded intake system.
- Upgraded intercooler.
- Factory or aftermarket wastegate actuator.
- Software tuning for the hybrid turbocharger.
- Mounting hardware for the factory turbocharger.
Recommended parts, not included
- 2.5-inch turbo outlet hose.
- MPI kit and upgraded fuel pump; check suitability with your tuner.
- High-pressure fuel pump (HPFP) upgrade; check suitability with your tuner.
- High-flow exhaust.
Note: when installing the turbocharger, always follow the correct wastegate actuator checking and adjustment procedure. The recommended wastegate actuator voltage is 3.4–3.6 V.
Installation must be carried out by a qualified technician. Prime the turbocharger with oil before installation, change the engine oil and oil filter, and follow the correct break-in procedure.
Mounting hardware or gaskets, the wastegate actuator and turbo outlet connector are not included. For installation, use the same mounting kit as for the factory turbocharger.
**Results may vary depending on location, fuel system, dyno and other factors.
Mounting hardware and gaskets
- 06L253039A – turbo inlet hose gasket.
- 5Q0253115B – turbo outlet gasket.
- WHT007210 – turbocharger mounting nuts (4 pieces).
- N90067202 – turbocharger oil line O-ring (2 pieces).
- WHT006112 – turbocharger oil line gasket.
- WHT006113 – turbocharger oil line gasket.
- WHT006114 – coolant line O-ring.
- WHT006124 – coolant line O-ring.
- WHT005558 – coolant line O-ring.
Suitable for: Audi A3 III (8V), Audi S3 III (8V), Audi TT III (FV), Audi Tts II (8S), VW Arteon I (3H), VW Golf VII (5G1), VW Jetta IV (162).
Approval
This part has no TÜV certification (ABE, TTG or Teilegutachten).
Compatible vehicles (manufacturer data)
| Vehicle | Chassis | Years | Engine |
|---|---|---|---|
| Audi A3 | — | 2015–2020 | — |
| Audi S3 | — | 2015–2020 | — |
| Audi TT | — | 2015–2020 | — |
| Audi TTS | — | 2015–2020 | — |
| Volkswagen ALLTRACK | — | 2015–2019 | — |
| Volkswagen ARTEON | — | 2018–2021 | — |
| Volkswagen Golf R | — | 2015–2020 | — |
| Volkswagen GTI | — | 2015–2020 | — |
| Volkswagen JETTA GLI | — | 2019–2021 | — |
Before ordering, check that the product matches your vehicle (model, year and engine). If in doubt, write to us — we will check for you.
