CTS Turbo turbocharger for Volkswagen Jetta IV GLI

CTS Turbo BOSS is a complete kit for directly installing a larger turbocharger on EA888 Gen.3 engines without the MQB platform (CPLA/CPPA). It is designed to work with existing modifications without fabricating additional custom parts.

Installation involves removing the factory turbocharger, transferring the factory wastegate actuator and reinstalling everything using the included mounting hardware. The engine management software must be updated to Unitronic Stage 3.

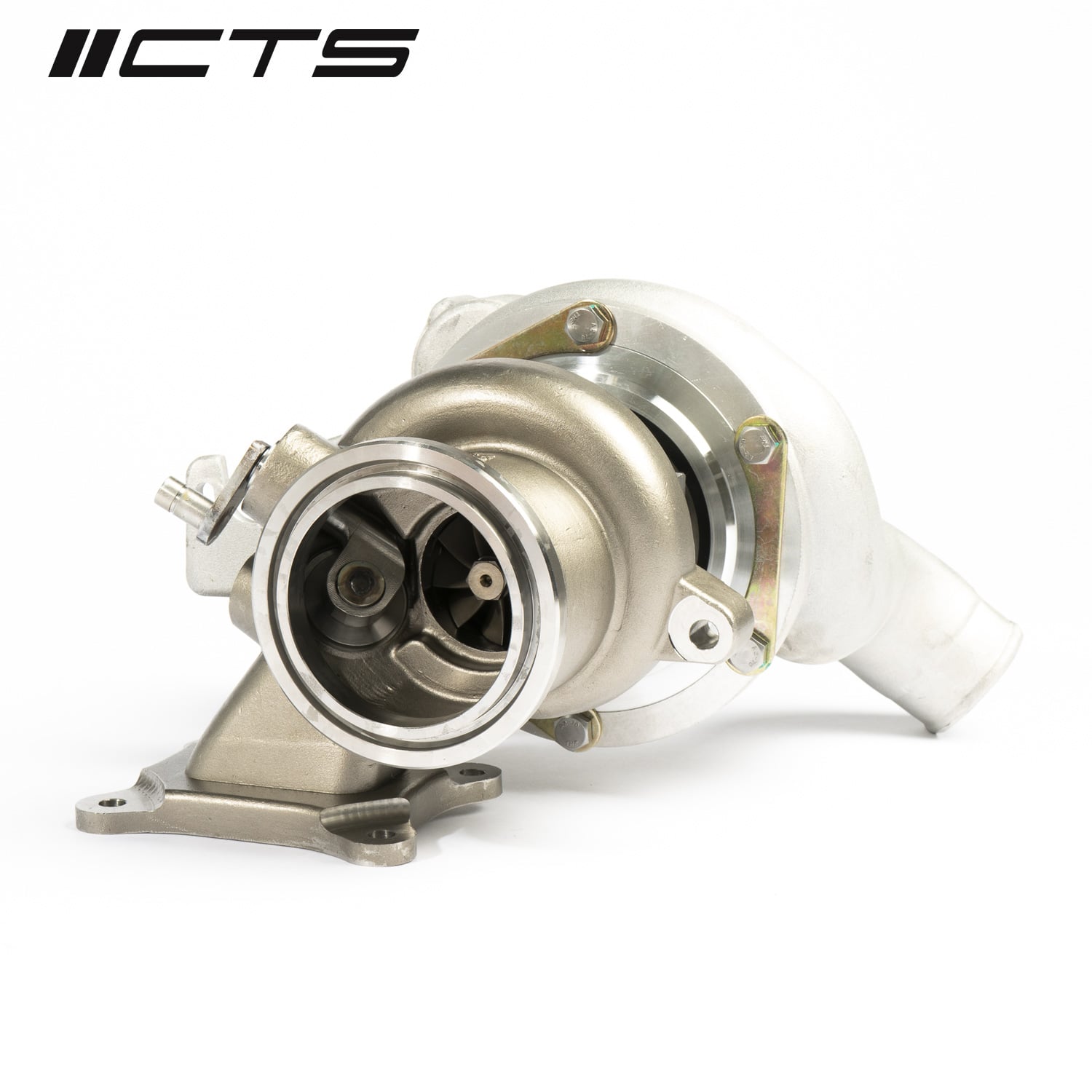

The turbo features a bearing core with two high-temperature-resistant ceramic ball bearings. The assembly is balanced on a high-speed VSR balancing machine. The 67 mm counter-rotating turbocharger is designed as a direct upgrade for the EA888 Gen.3 platform, combining fast response with performance exceeding 400 hp.

The kit uses the factory mounting points and is compatible with 3-inch intake systems, 3-inch downpipe systems and the turbocharger outlet pipe in the factory location. The fuel system does not need to be upgraded.

Features

• 67 mm turbocharger with two ball bearings and performance exceeding 400 hp.
• CTS Turbo reverse-rotation CHRA, 50/67 mm compressor wheel and 54/47 mm turbine wheel.
• Direct-fit solution for the factory mounting position.
• Proprietary 3-inch compressor cover with connections in the factory positions.
• Stainless steel exhaust housing with optimised flow and factory wastegate valve geometry.
• Relocated diverter valve position for easier installation or upgrading.
• Included oil and coolant lines for use with the factory connections.
• Compatible with the factory wastegate actuator.
• No fuel system upgrade required.

Software and hardware compatibility

• Volkswagen Jetta 2013.5–2017 with the EA888.3 engine (2.0 TSI) – SIMOS 18 ECU only; Unitronic Stage 3 software is required.
• Vehicles with a DSG gearbox also require Unitronic Stage 2 TCU transmission software.

Hardware

• Volkswagen Jetta 1.8 TSI
• Volkswagen Beetle Mk2 with the EA888.3 engine (1.8 TSI or 2.0 TSI)
• Volkswagen Passat B7 with the EA888.3 engine

Required additional parts

• 3-inch high-flow CTS Turbo intake system or equivalent.
• 3-inch high-flow CTS Turbo downpipe or equivalent.
• CTS Turbo direct-fit upgraded intercooler.
• CTS Turbo charge pipe kit.

Weight: 15.88 kg

Suitable for: VW Jetta IV (162).

Approval

This part has no TÜV certification (ABE, TTG or Teilegutachten).

Compatible vehicles (manufacturer data)

Before ordering, check that the product matches your vehicle (model, year and engine). If in doubt, write to us — we will check for you.
