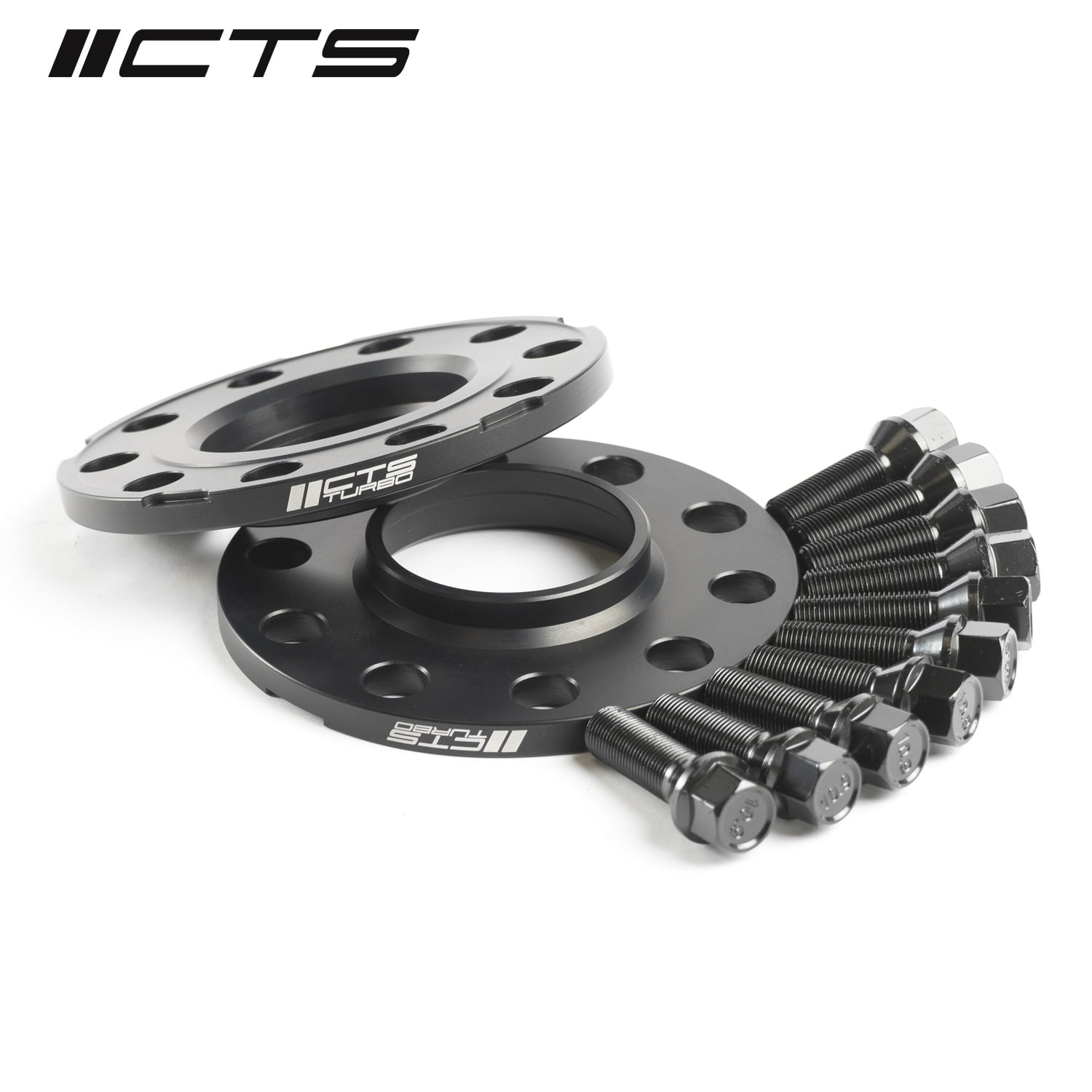

CTS Turbo hub-centric wheel spacers are precision-manufactured from forged 6061 T6 aluminium and black anodised. They provide a more flush appearance between the wheels and the wheel arches, as well as a wider track, which can also contribute to improved stability and cornering handling.
The spacers are intended exclusively for use with original (OEM) wheels. The kit includes a pair of spacers and bolts.
Features
- Thickness: 10 mm
- Centre bore: 72.5 mm, hub-centric
- Bolt seat: conical
- Bolt thread: M14 × 1.25 × 36 mm
- Bolt pattern: 5×120
- Fasteners: extended black wheel bolts, included
- Spacer material: forged 6061 T6 aluminium
- Kit contents: 2 spacers and bolts
Important: The 10 mm spacers cannot be used on the rear axle of BMW F30 and F31 3 Series models manufactured from 2012 onwards, due to the size of the factory wheel hub. Larger spacers can be used on the rear axle of these models. This restriction applies only to the F30 saloon and F31 estate.
Suitable for: BMW 1 II (F20/F21), BMW 2 I (F22/F23/F45/F46/F87), BMW 3 VI (F30/F31/F34/F80), BMW 4 I (F32/F33/F36/F82/F83), BMW 5 VI (F10/F11), BMW M2 I (F22/F23/F45/F46/F87), BMW M3 VI (F30/F31/F34/F80).
Approval
This part has no TÜV certification (ABE, TTG or Teilegutachten).
Compatible vehicles (manufacturer data)
| Vehicle | Chassis | Years | Engine |
|---|---|---|---|
| BMW 328i xDrive | — | 2012–2016 | — |
| BMW 335i | — | 2013–2015 | — |
| BMW 335i xDrive | — | 2012–2015 | — |
| BMW 340i xDrive | — | 2016–2018 | — |
| BMW 428i xDrive | — | 2014–2016 | — |
| BMW 435i | — | 2013–2016 | — |
| BMW 435i xDrive | — | 2014–2016 | — |
| BMW 440i xDrive | — | 2016–2018 | — |
| BMW 535i xDrive | — | 2011–2016 | — |
| BMW 550i Xdrive | — | 2011–2016 | — |
| BMW M135i | — | 2014–2016 | — |
| BMW M2 | — | 2015–2018 | — |
| BMW M235i | — | 2014–2016 | — |
| BMW M235i xDrive | — | 2014–2016 | — |
| BMW M2C | — | 2018–2021 | — |
| BMW M3 | — | 2015–2020 | — |
| BMW M4 | — | 2015–2020 | — |
| BMW M5 | — | 2012–2016 | — |
Before ordering, check that the product matches your vehicle (model, year and engine). If in doubt, write to us — we will check for you.
