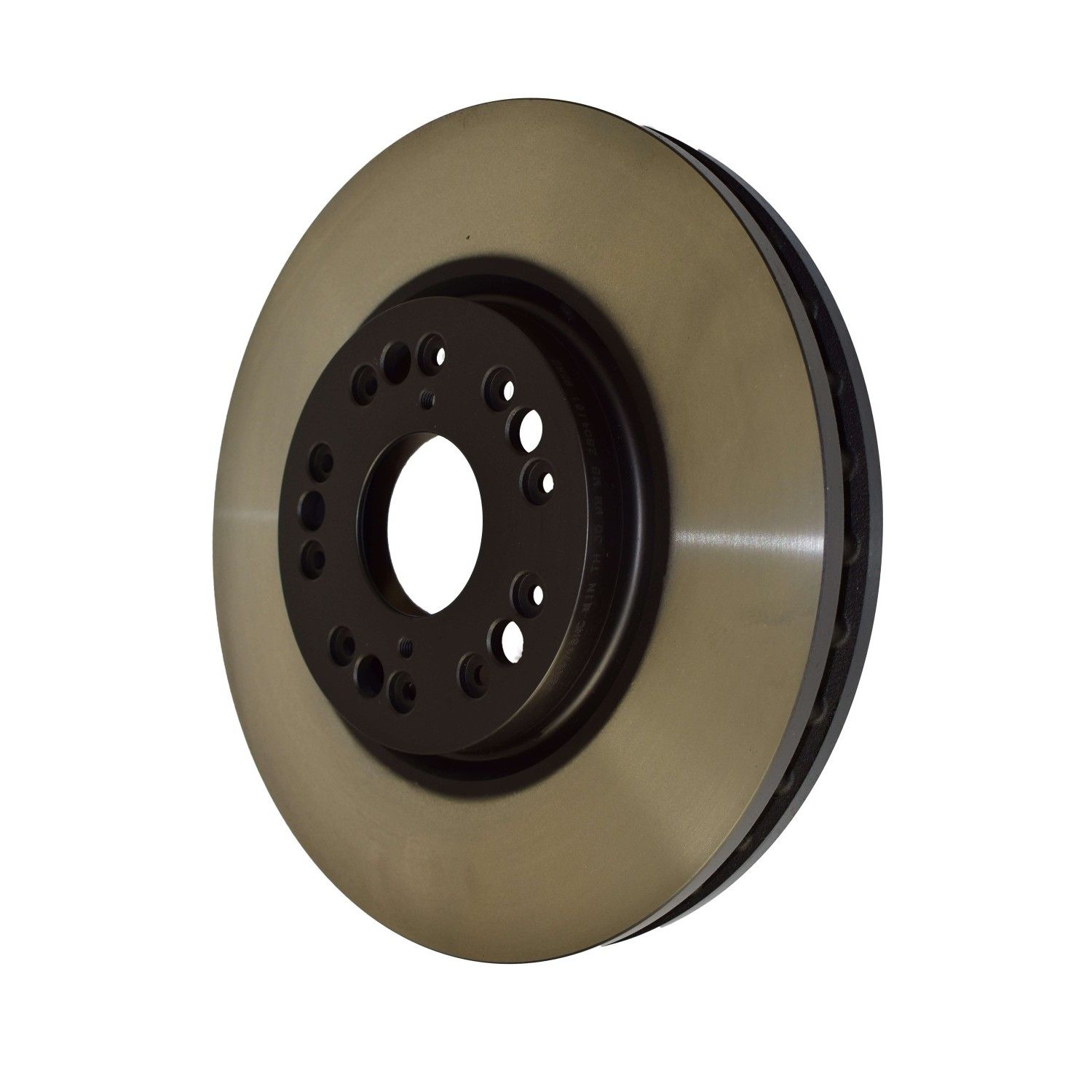

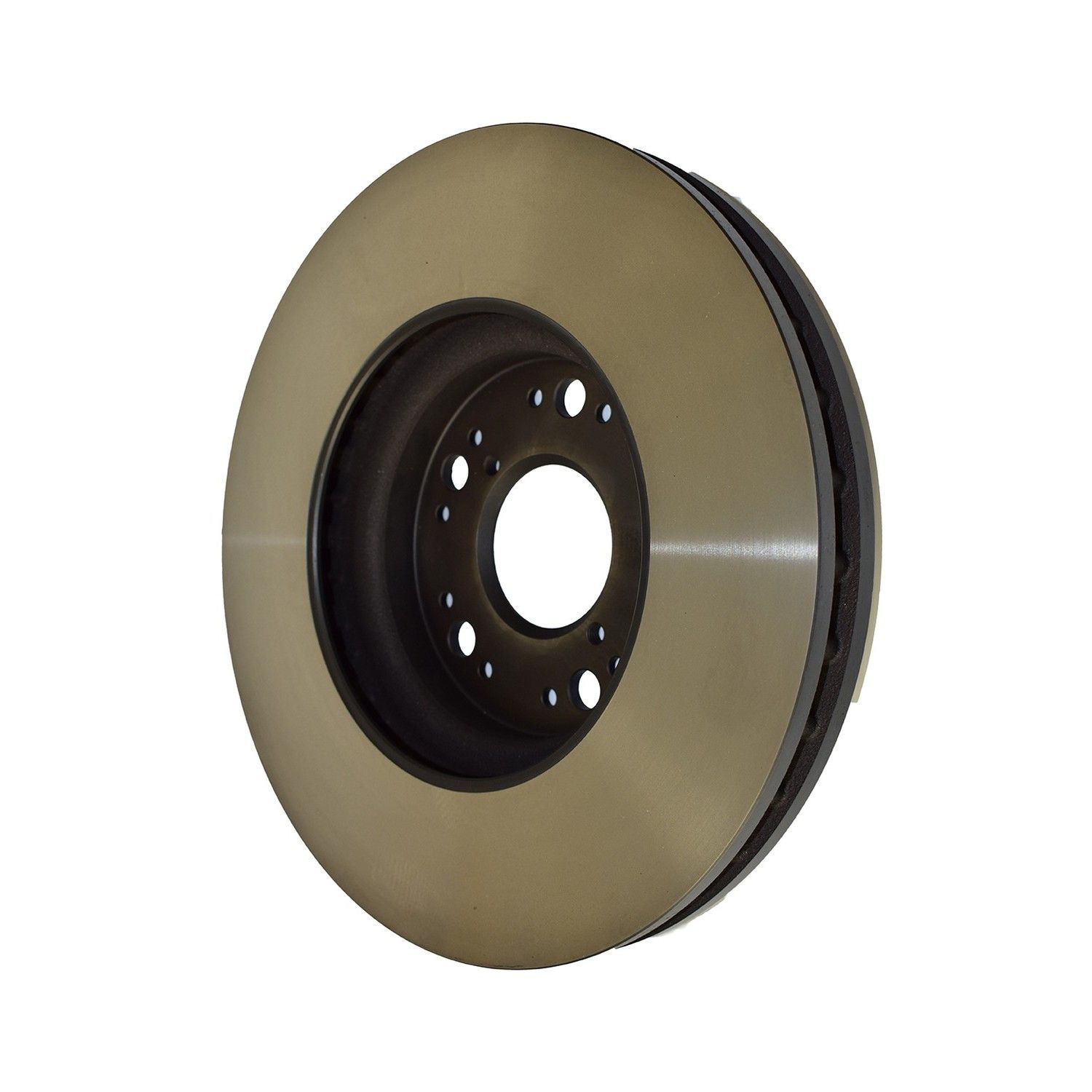

DBA front brake disc for Lexus LS, Lexus GS

DBA 4000 Series HD brake discs are forged from high-carbon alloyed iron and undergo Thermal Stability Profiling (TSP). DBA’s metallurgy provides resistance to the increased loads and heat generated during hard braking, ensuring consistent performance and making them better suited for more aggressive driving or high-performance applications compared to DBA’s Street Series brake discs. Many DBA 4000 Series brake discs feature DBA’s Kangaroo Paw ventilation system, with a pattern of 144 diamond- and teardrop-shaped pillars. These deliver an impressive 30% increase in surface area and a 20% improvement in cooling efficiency compared with traditional straight vanes. All 4000 Series Brake rotors feature Thermographic heat paint markings that change colour at specific temperature thresholds to assist with the monitoring of braking temperatures and rotor fatigue. DBA 4000 Series HD Brake Rotors showcase a sleek OE-style rotor finish, catering to drivers seeking the advantages of a 4000 Series rotor while desiring an OE-style appearance, including controlled race divisions.

Compatible vehicles (according to the supplier)

Below is a list of compatible OEM configurations. Please check your OEM brake system before ordering.

• Lexus GS (1st Gen) 1991-1997 — Sedan (S140) 1991-1997
  • GS300 3.0 (JZS147) 1991-1993
  • GS300 3.0 (JZS147) 1993-1995
  • GS300 3.0 (JZS147) 1995-1997
  • GS300 3.0 Twin Turbo (JZS147) 1994-1997
• Lexus GS (2nd Gen) 1997-2005 — Sedan (S160) 1997-2005
  • Lexus GS300 3.0 (JZS160) 1997-2005
  • Lexus GS430 4.3 (UZS161) 2000-2005
• Lexus IS (1st Gen) 1998-2005 — Sedan (XE10) 1998-2005
  • IS200 2.0 (GXE10) 1998-2005
  • IS300 3.0 (JCE10) 2001-2005
• Lexus IS (1st Gen) 1998-2005 — Wagon (XE10) 2001-2005
  • IS300 SportCross 3.0 (JCE10) 2001-2005
• Lexus LS (1st Gen) 1989-1994 — Sedan (XF10) 1989-1994
  • LS400 4.0 (UCF11) 1992-1994
• Lexus SC (1st Gen) 1991-2000 — Coupe (Z30) 1991-2000
  • SC400 4.0 (UZZ30) 1991-2000
• Lexus SC (2nd Gen) 2001-2010 — Convertible (Z40) 2001-2010
  • SC430 4.3 (UZZ40) 2001-2010
• Toyota Aristo (1st Gen) 1991-1997 — Sedan (S140) 1991-1997
  • Aristo 4.0 (UZS143) 1993-1997
  • Aristo Vertex 3.0 Twin Turbo (JZS147) 1993-1997
• Toyota Aristo (2nd Gen) 1997-2005 — Sedan (S160) 1997-2005
  • Aristo 3.0 (JZS160) 1997-2000
  • Aristo Vertex 3.0 Twin Turbo (JZS161) 1997-2005
• Toyota Soarer (3rd Gen) 1991-2000 — Coupe (Z30) 1991-2000
  • Soarer 2.5 Twin Turbo (JZZ30) 1991-1996
  • Soarer 2.5 Twin Turbo (JZZ30) 1997-2000
  • Soarer 3.0 (JZZ31) 1997-2000
  • Soarer 4.0 (UZZ32) 1991-1996
• Toyota Supra (4th Gen) 1993-2001 — Coupe (A80) 1993-2001
  • Supra 3.0 Twin Turbo (JZA80) 1993-2002
