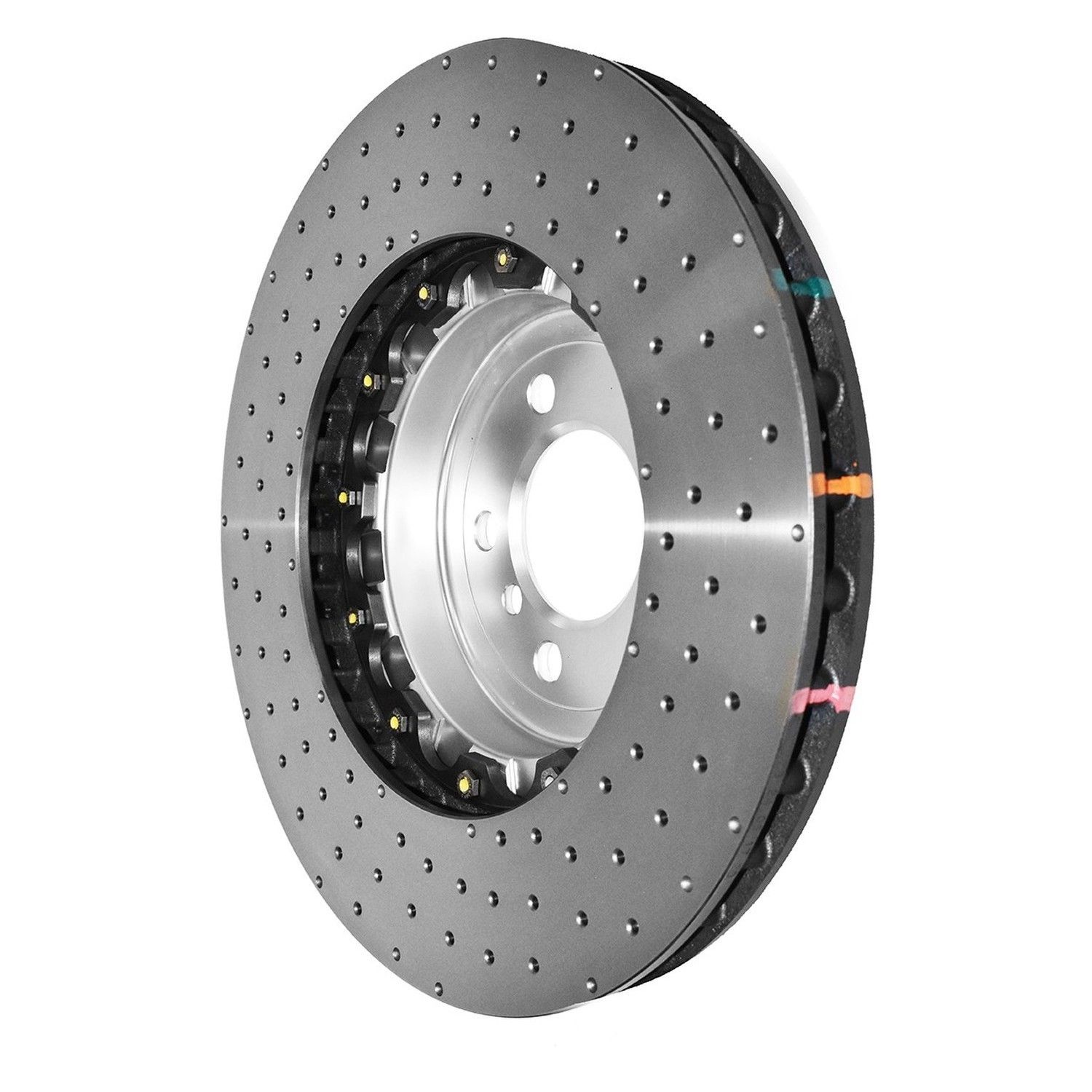

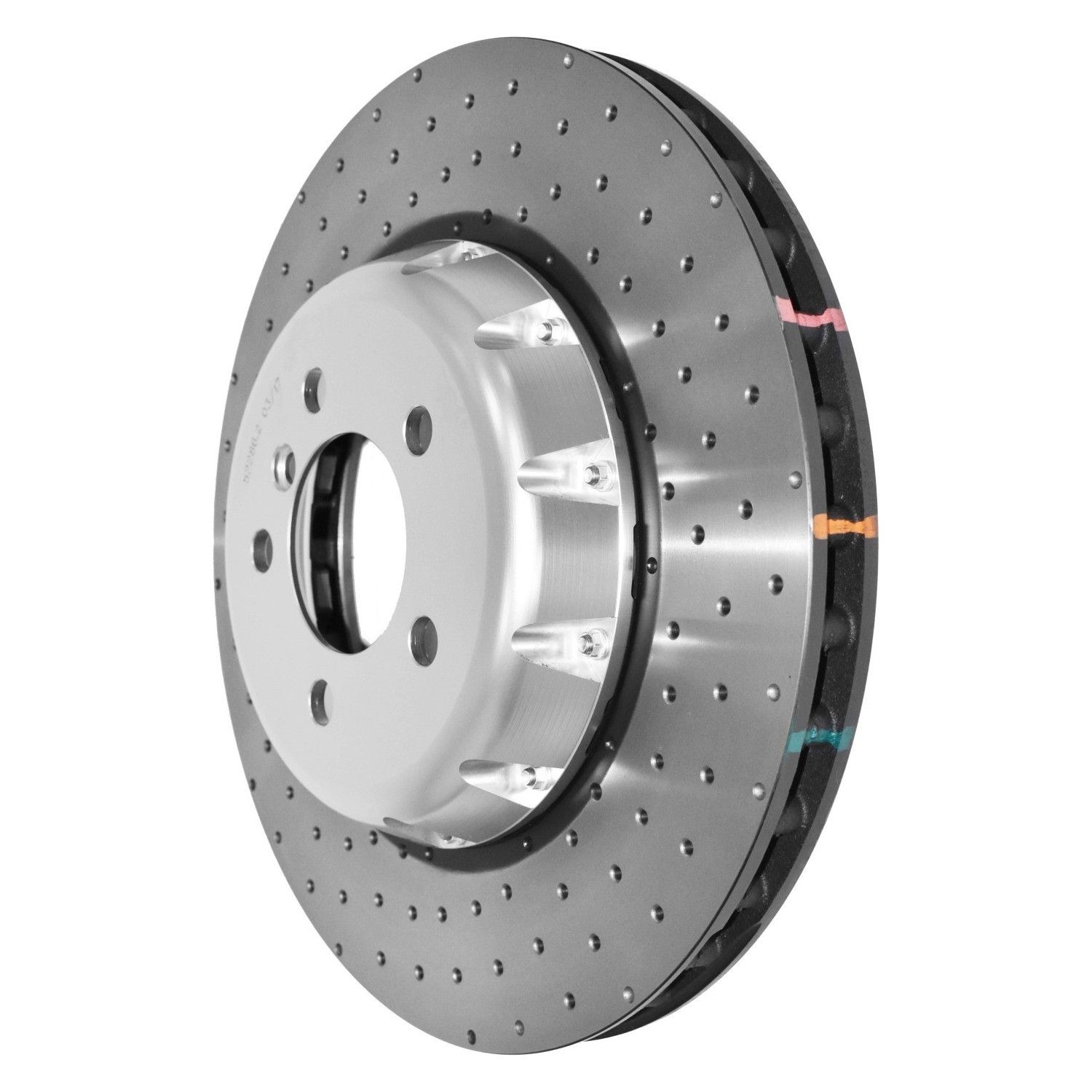

Presenting the DBA 5000 Series XD Brake Rotors, showcasing a non-directional cross-drilled and dimpled design. The XD finish not only enhances cooling benefits beyond the HD finish but also elevates the sports aesthetics. This advanced design incorporates a mix of dimples and drilled holes, providing enhanced structural support compared to traditional cross-drilled techniques, underscoring DBA’s commitment to cutting-edge technology. The rotors feature two-piece direct replacement construction with CBN machine-turned finishes and a high carbon alloy composition.
Taking performance to new heights, DBA’s Kangaroo Paw ventilation system delivers a remarkable 30% increase in surface area and a 20% improvement in cooling efficiency compared to conventional straight vane designs. Moreover, these rotors are equipped with Thermographic heat paint markings, transitioning in color at specific temperature thresholds. This visual cue allows for monitoring braking temperatures and assessing rotor fatigue, ensuring precision performance.
The integration of aerospace-grade aluminum not only reduces unsprung weight but also facilitates uniform radial disc expansion within the cast iron rings. Additionally, it acts as a heat barrier, preventing heat transfer from the disc to the hub through the aluminum hats. The high carbon cast iron rings seamlessly integrate with Aluma-lite center hats/bells, securely fastened together using National Aerospace Standards (NAS) bolts and crimp nuts. Choose from complete assemblies for initial replacements or opt for replacement hats and flat disc rotors, providing flexibility and cost-effectiveness.
While the DBA 5000 Series XD represents an overall improvement over the 5000 Series HD rotors, it is worth noting that XD drilled rotor configurations are not typically recommended for heavy street or track use.
Compatible vehicles (according to the supplier)
Below is a list of compatible OEM configurations. Please check your OEM brake system before ordering.
- BMW 3-Series (6th Gen) 2011-2019 — Gran Turismo (F34) 2011-2019
- 325D Gran Turismo 2.0 TD 2013-2018
- 328 Gran Turismo 2.0 Turbo 2013-2019
- 328 Gran Turismo xDrive 2.0 Turbo 2013-2015
- 330 Gran Turismo 2.0 Tubo 2015-2019
- 335 Gran Turismo 3.0 Turbo 2013-2015
- 335 Gran Turismo xDrive 3.0 Turbo 2013-2015
- 340 Gran Turismo 3.0 Turbo 2015-2019
- 340 Gran Turismo xDrive 3.0 Turbo 2015-2019
- BMW 3-Series (6th Gen) 2011-2019 — Sedan (F30) 2011-2019
- 328 2.0 Turbo 2012-2015
- 330 2.0 Turbo 2015-2019
- 330D 3.0 TD 2012-2019
- 330D xDrive 3.0 TD 2013-2019
- 335 3.0 Turbo 2012-2015
- 335D xDrive 3.0 TD 2013-2019
- 340 3.0 Turbo 2015-2019
- 340 xDrive 3.0 Turbo 2015-2019
- Active Hybrid 3.0 Turbo 2012-2015
- BMW 3-Series (6th Gen) 2011-2019 — Touring (F31) 2011-2019
- 325D Touring 2.0 TD 2013-2018
- 328 Touring 2.0 Turbo 2012-2019
- 330 Touring 2.0 Turbo 2015-2019
- 330D Touring 3.0 TD 2012-2019
- 330D Touring xDrive 3.0 TD 2013-2019
- 335 Touring 3.0 Turbo 2013-2015
- 340 Touring 3.0 Turbo 2015-2019
- BMW 4-Series (1st Gen) 2013-2021 — Convertible (F33) 2013-2021
- 420 2.0 Turbo 2014-2021
- 420D 2.0 TD 2013-2020
- 425D 2.0 TD 2014-2017
- 428 2.0 Turbo 2013-2016
- 430D 3.0 TD 2014-2020
- 435D xDrive 3.0 Twin TD 2014-2020
- BMW 4-Series (1st Gen) 2013-2021 — Coupe (F32) 2013-2021
- 418 1.5 Turbo 2015-2020
- 418D 2.0 TD 2014-2017
- 420 2.0 Turbo 2013-2021
- 428 2.0 Turbo 2013-2016
- 430D 3.0 TD 2013-2020
- 435 3.0 Turbo 2013-2016
- 435D 3.0 Twin TD 2013-2020
- BMW 4-Series (1st Gen) 2013-2021 — Gran Coupe (F36) 2014-2021
- 428 2.0 Turbo 2014-2016
- 430D 3.0 TD 2014-2020
- 435 3.0 Turbo 2014-2016
