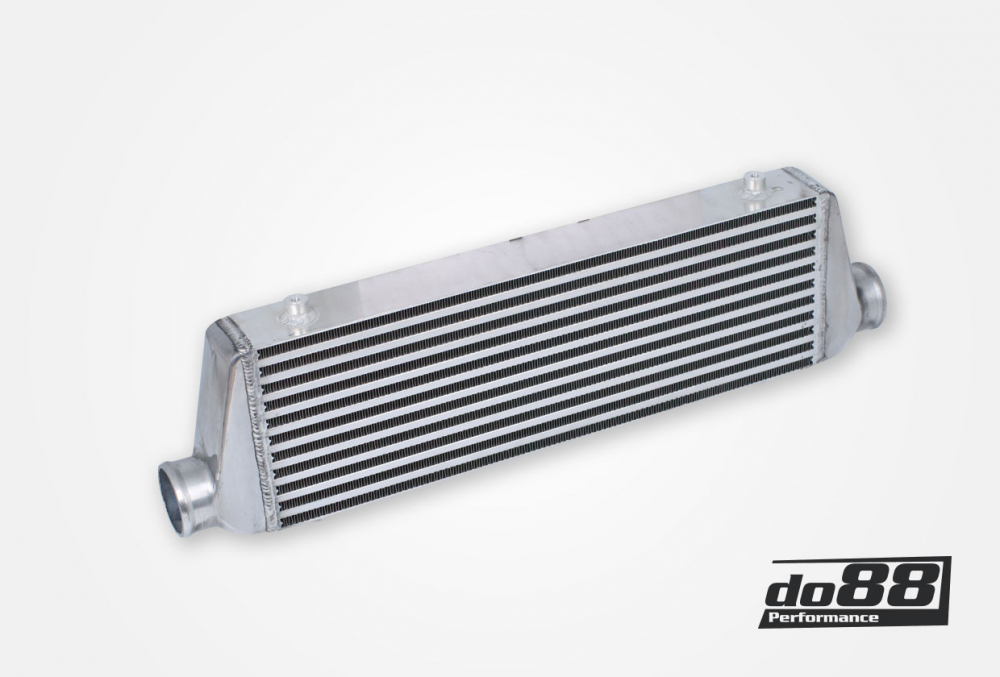

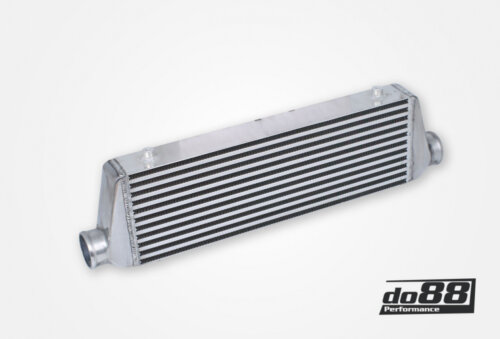

do88 universal intercooler 550x180x65 mm, 2.5″ connections

The do88 universal intercooler with a 550x180x65 mm core and 2.5″ (63 mm) side connections is made for building your own charge air cooling system – for project cars, turbo or supercharger conversions and replacing an undersized factory intercooler. It cools the charge air between the turbocharger or supercharger and the intake manifold.

The core is a bar & plate design that handles high boost pressure and vibration well.

Specifications

• Core size: 550x180x65 mm
• Overall size: 695x180x65 mm
• Connections: 2.5″ (63 mm), side
• Core: bar & plate
• Mounting: 4 × M8
• Manufacturer: do88 (Sweden)

The intercooler is universal: before ordering, measure the space in your car (overall size above) and the pipe diameter. We recommend do88 silicone hoses and clamps of the matching diameter. Installation should be done by a qualified workshop.
