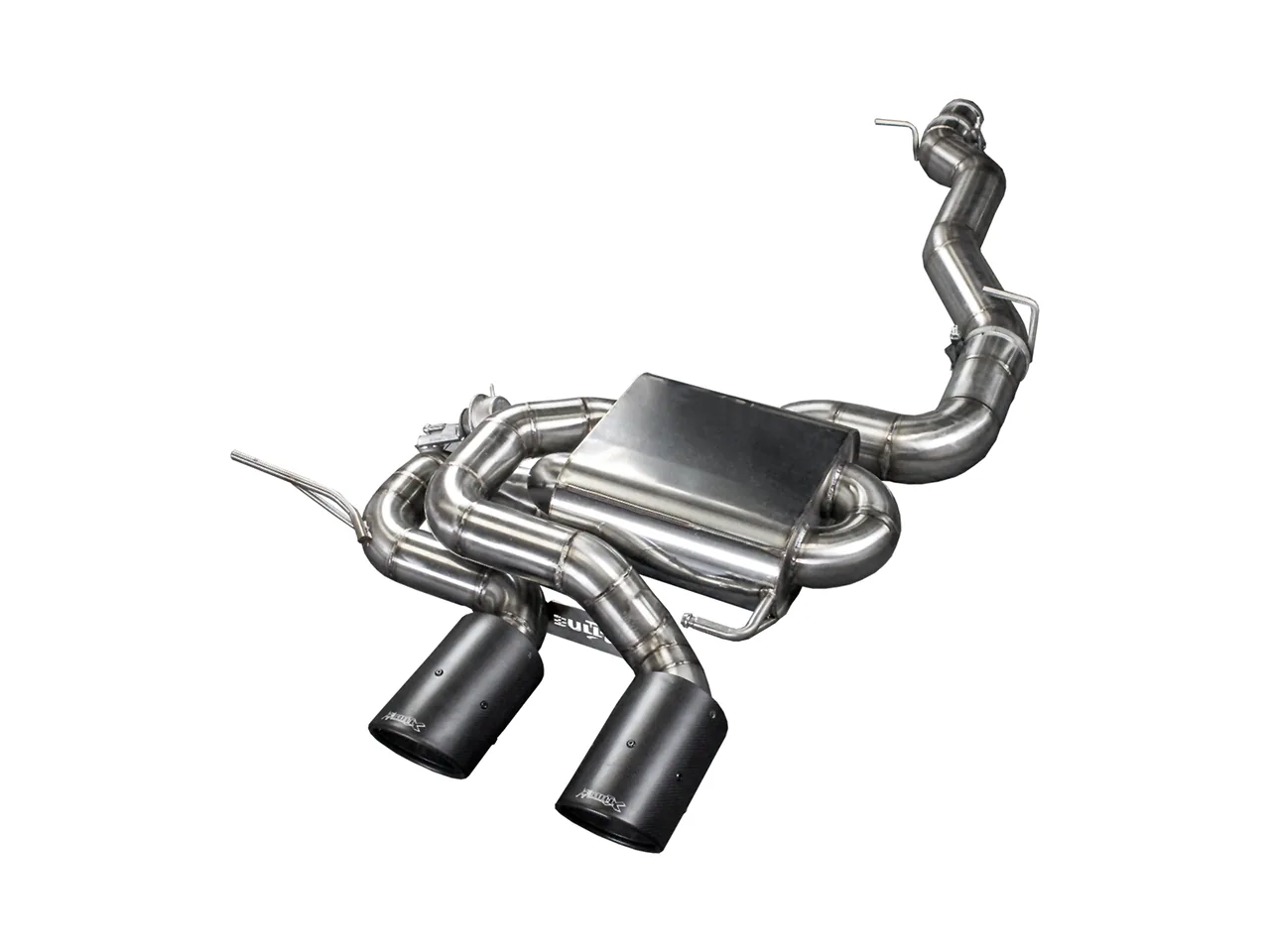

EGO-X 3.5″ exhaust system for VW Golf V R32 250 PS

This EGO-X Race exhaust system for the VW Golf 5 R32 is hand-built. The pipe diameter is 3.5″ (89 mm). The complete system consists of absorption silencers without chambers and is manufactured using TIG welding.

The exhaust system is suitable for standard vehicles as well as vehicles with tuned engines. If the vehicle has selectable driving profiles or a sport button, the valve can also be controlled through this system. If the vehicle does not have selectable driving profiles, control is possible via the supplied switch. The switch’s LED indicates the valve position: when the light is off, the valve is open; when it is on, the valve is closed.

If you purchase the Bull-X Tronic control unit, the valve can still be opened while the vehicle is stationary, while the control unit regulates the exhaust valve during driving in accordance with ECE guidelines. Bull-X Tronic offers two control options:

• Sport mode (Dynamic, Race)
• Comfort mode (the valve opens from 75% throttle position)

Technical details

• Pipe diameter: 3.5″ (89 mm)
• Pipe material: stainless steel
• Absorption silencers: hand-built
• Cat-back
• TIG welded
• When the Bull-X Tronic control unit is purchased, control via the driving-profile selector or sport button is also possible
• Not approved for road use

Scope of delivery

• Cat-back exhaust system
• Optional switch, radio remote control or Bull-X Tronic control unit
• Cabling for connection to the vehicle’s electrical system
• Vacuum hose for connecting the Bull-X Tronic control unit to the exhaust valve
• Exhaust tips (available as an option)
• Fitting instructions
• Fitting hardware

Road use: This race exhaust system is not approved for use on public roads. Of the catalytic converters and decat pipes offered, only the HJS catalytic converter with EG approval is permitted for road use; all other versions are intended solely for track use.

Suitable for: VW Golf V (1K).

Manufacturer’s vehicle data

• EGO-X Abgasanlage 3,5″ VW Golf 5 R32 250PS

Original product name by HG Motorsport (»z.B.« = e.g.). Please check model, year and engine of your vehicle before ordering; if in doubt, contact us and we will check for you.

Approval

Only the version marked “road legal” has a European ECE / EC approval (Bull-X Tronic controller with ECE or the HJS EC catalytic converter). Versions marked “no ECE, track use only” have no approval and are not permitted for road use. If in doubt about the version, contact us and we will check for you.
