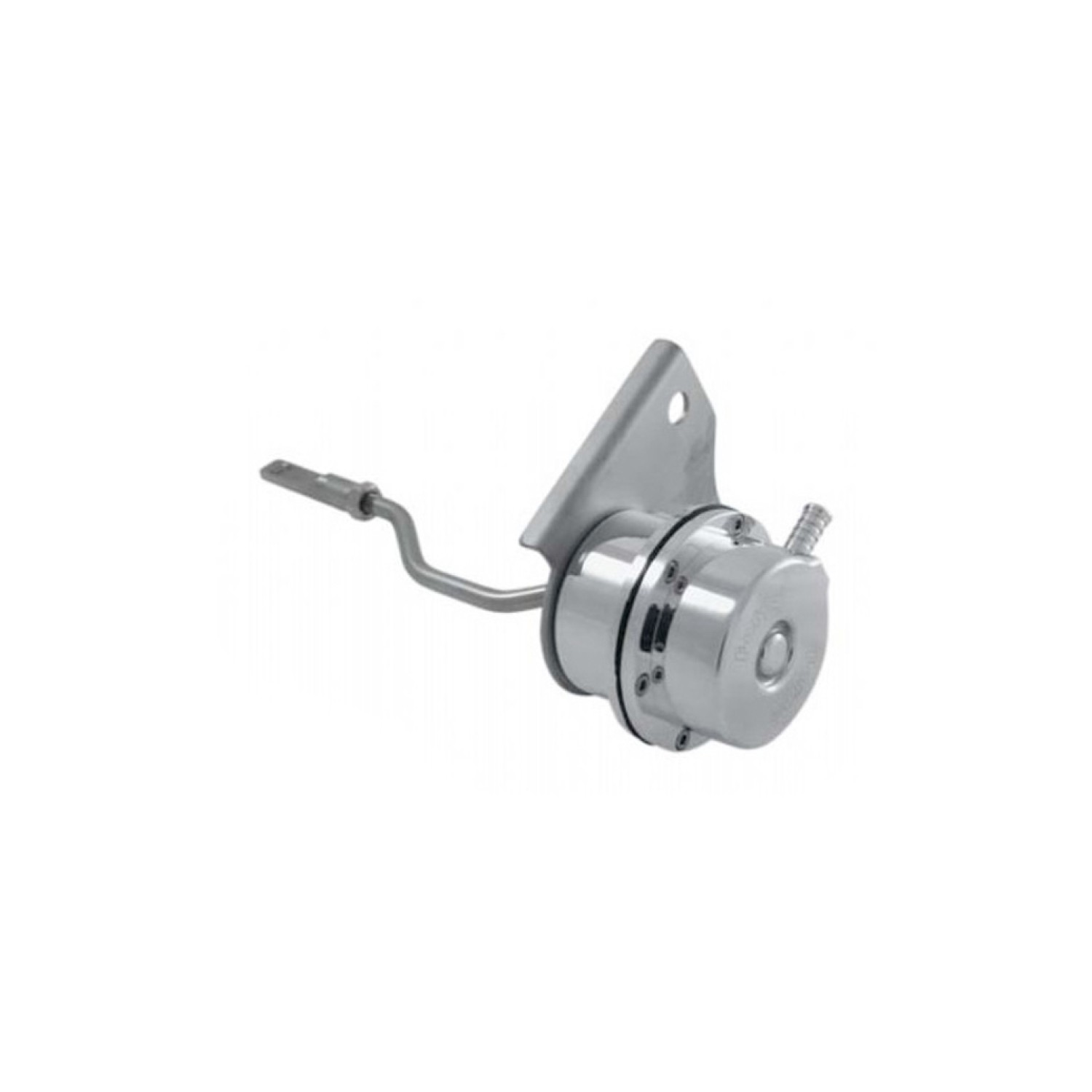

The adjustable turbocharger actuator is designed for the Nissan GTi-R with a bent actuator rod.
It enables more precise adjustment and control of boost pressure according to the vehicle’s requirements, which can improve turbocharger response and control. A spring suitable for the factory boost pressure or slightly higher pressure is fitted as standard. A stronger spring is also available for modified vehicles.
- Choice of different spring pressures according to the vehicle
- Manufactured from 6026-grade aluminium
- Design adapted to the vehicle and turbocharger
- Choice of piston or diaphragm sealing
- Fluorosilicone diaphragms reinforced with Nomex material
- Laser-cut stainless steel brackets where required
- Actuator rod made from 303-grade stainless steel
- Made in England
The standard version uses diaphragm sealing. Piston sealing is also available, providing comparable performance and less maintenance thanks to the durable piston mechanism.
The actuator is fitted with a factory spring as standard. To use the FMPACTUN spring adjustment kit, Diaphragm Type 2, 049 must be selected. The specified spring pressures refer to the mechanical part of the operation and are not directly comparable on engines where boost pressure is controlled by the ECU or a solenoid valve. When selecting a spring for a modified vehicle, the specific engine and turbocharger setup must be taken into account.
Kit contents
- 1 × FMACGTIRB actuator
- 1 × Forge sticker
Suitable for: Nissan Pulsar II (N14).
