GFB D-Force electronic boost controller for diesel engines

GFB D-Force – electronic boost controller for diesel engines

D-Force is a dedicated boost controller for diesel engines with turbochargers that use a conventional wastegate, and not for VNT (Variable Nozzle Turbine, or variable-geometry vane turbine) turbochargers. It enables precise control of boost pressure rise and peak boost pressure.

• Operation up to 50 psi
• Boost pressure display in psi, bar or kPa
• Exhaust gas temperature (EGT) display in °F or °C
• Closed-loop boost pressure control
• 6 individually adjustable boost pressure presets
• Scramble boost function with remote activation
• Recall of the highest boost pressure reached
• Auxiliary input for activating the scramble function or a preset
• Warning for excessive boost pressure and excessive temperature
• Touchscreen control with simple menu navigation
• Display backlight colour selection

Precise boost pressure control

D-Force enables boost pressure adjustment for different driving conditions. You can set the pressure rise rate, maximum pressure and closed-loop control correction. 6 presets with different parameters are available, which can be activated while driving or by pressing a button.

The scramble boost function uses a dedicated preset in which you can set the maximum pressure, pressure rise rate and closed-loop control. When activated, boost pressure can be increased or decreased, while the pressure build-up rate and correction can also be changed. Activation can be carried out via the display or auxiliary input, to which you can connect a switch, button, warning light or engine control unit output.

The controller can also display exhaust gas temperature (EGT) and trigger an adjustable warning. An additional EGT module with a stainless steel EGT probe and welding bung for the exhaust system is required for this. The module connects to the controller wiring and is available as part of kit 3007 or separately under part number 3830.

Features

• 50 psi: boost pressure display in psi, kPa or bar.
• EGT display: exhaust gas temperature in °F or °C and an adjustable flashing LED warning light for excessive temperature; an EGT module is required.
• Closed-loop control: adjustable logic helps achieve rapid pressure rise and reduce pressure drop at high rpm.
• 6 programmable presets: for different economy, performance, safety, towing and other driving conditions.
• Peak pressure recall: after each acceleration, you can check the highest boost pressure reached.
• Remote input: for changing presets or activating the scramble boost function.
• Overboost warning and cut-off: an adjustable warning can interrupt solenoid control in the event of excessive boost pressure, thereby reducing pressure.
• Touchscreen: a capacitive screen and one-touch control simplify setup.

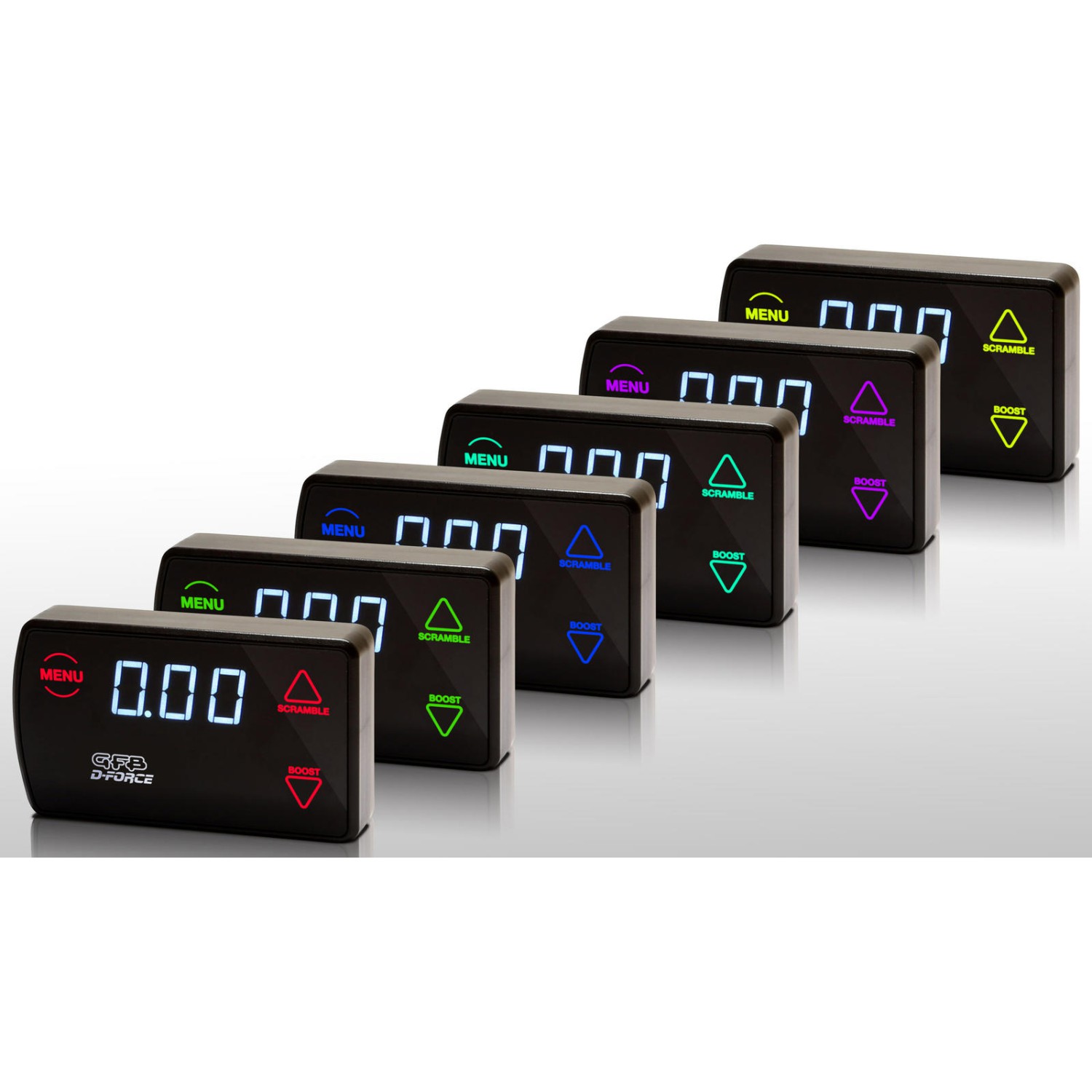

• Colour selection: the button illumination can be set to one of six colours.

Important: the product is suitable only for turbochargers with a conventional wastegate valve, not for VNT turbochargers.

Weight: 0.60 kg

Suitable for: universal use (not vehicle-specific).
