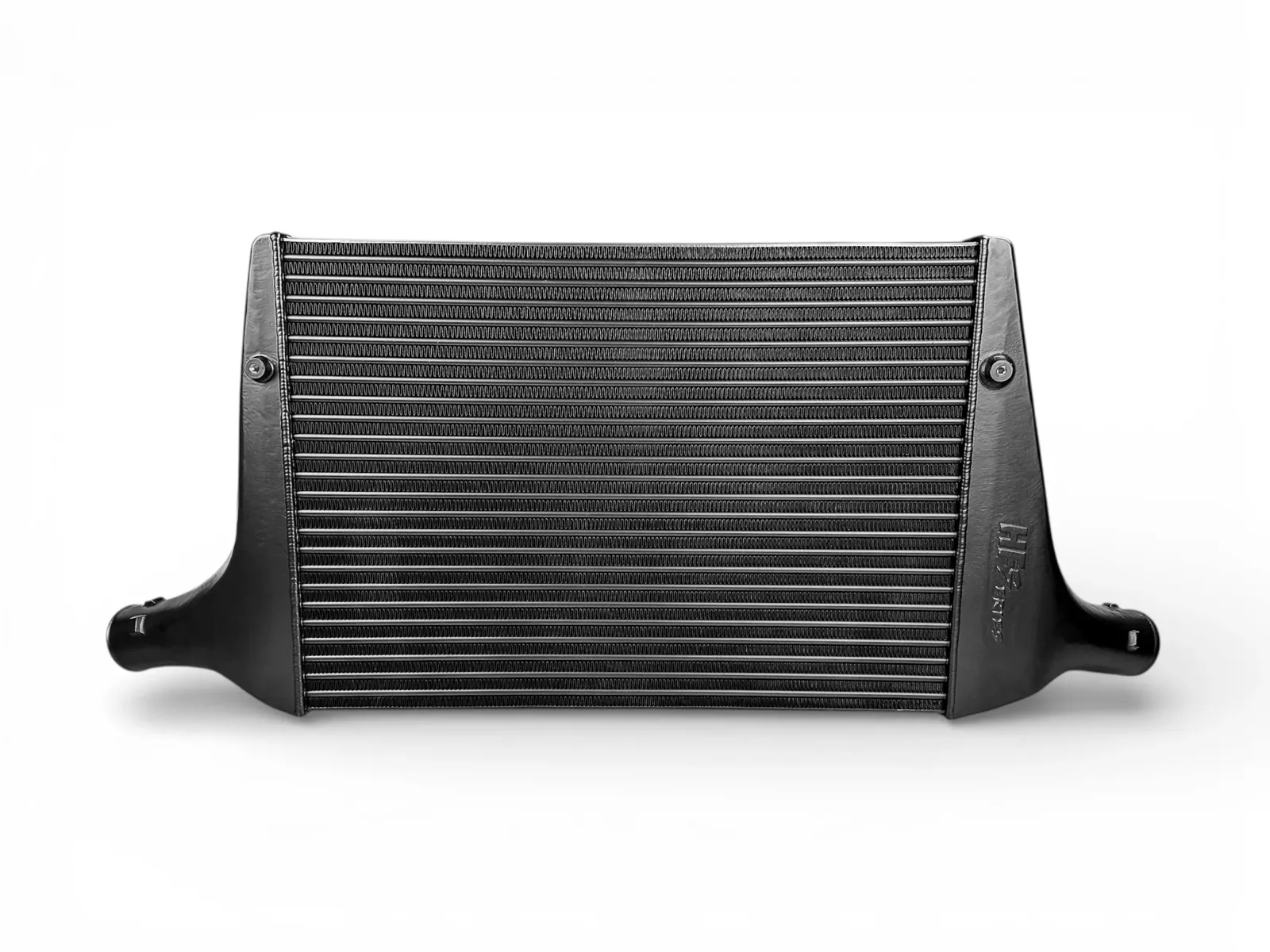

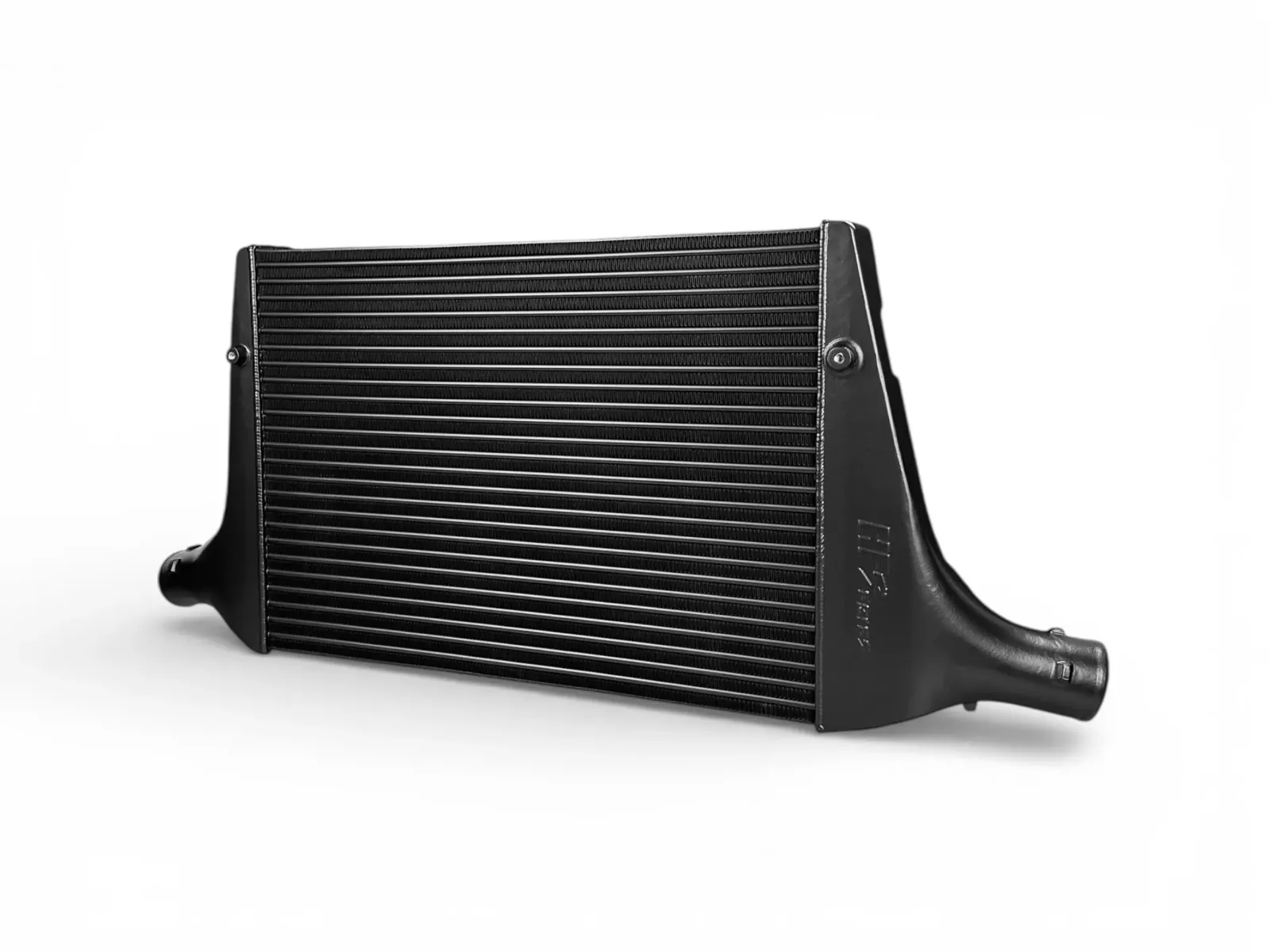

HF-Series intercooler for Audi A4/A5 B8 and B8.5

This upgraded intercooler for the Audi A4/A5 B8 and A4/A5 B8.5 is a highlight of the HF-Series range. The high-quality HFT core provides excellent cooling performance, delivering strong performance even under demanding conditions while remaining exceptionally robust. It offers high resistance and heats up less than comparable cores from other manufacturers. The complete system is also designed for optimum flow. This means minimal pressure loss, while the entire charge-air path has been developed using CAD flow analyses.

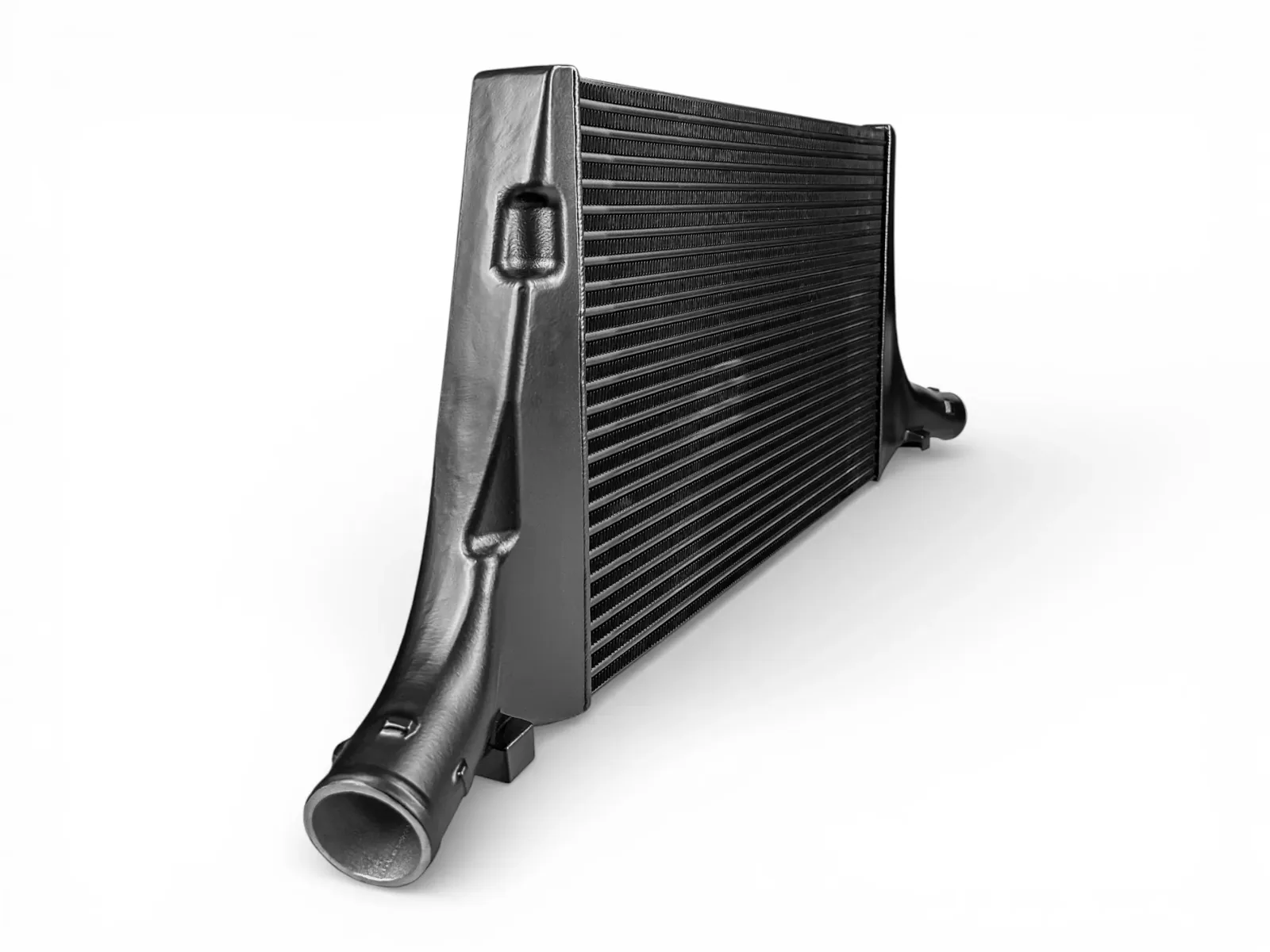

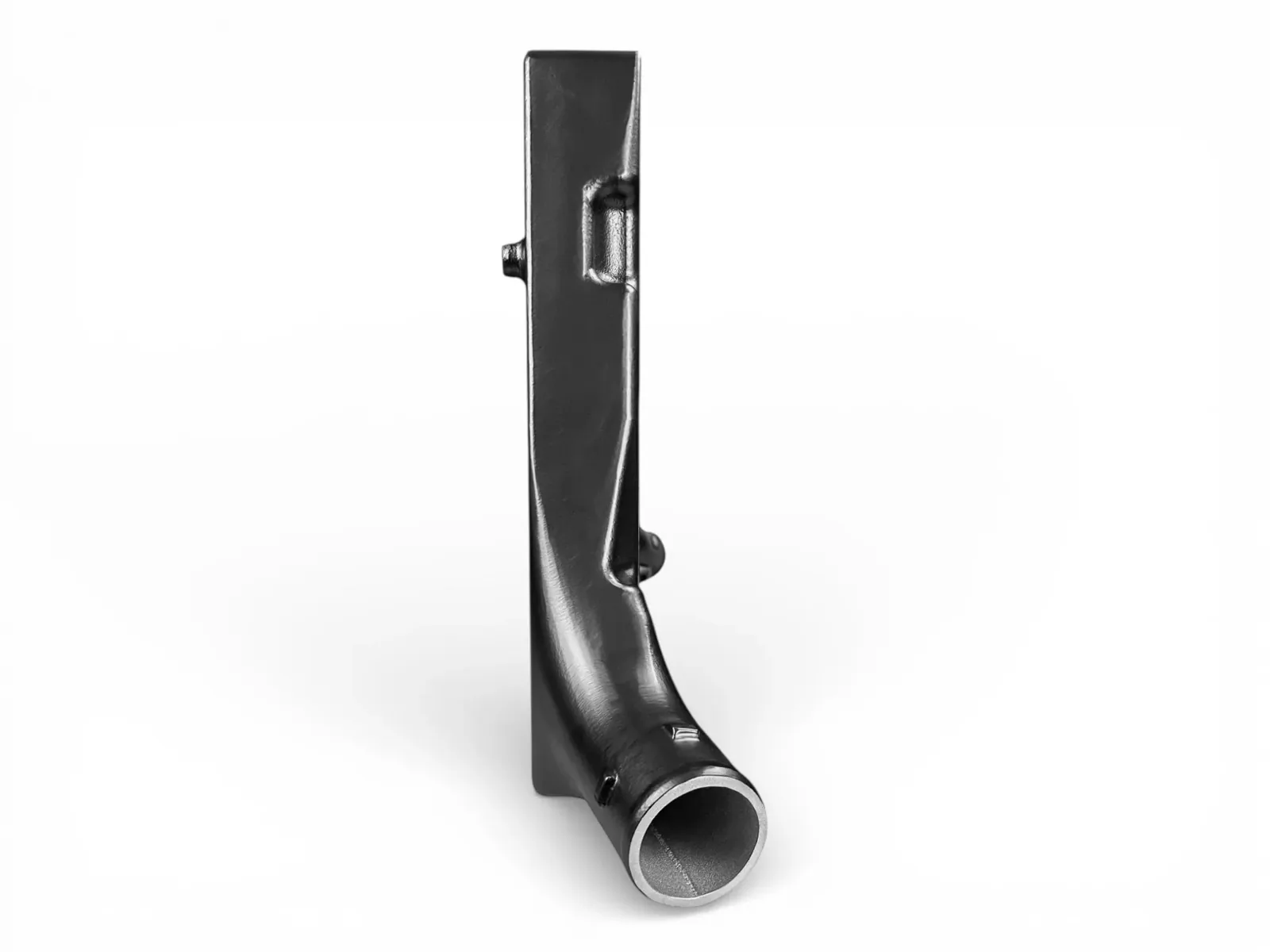

This also includes the end tanks, which are made from high-strength cast aluminium and equipped with our WAY FIN TECHNOLOGY.

Technical details

• Core type: HFT
• End tanks: cast aluminium
• Includes a parts certificate for straightforward registration and approval under §19.3

Comparison

• OEM: 5,586 cm³
• HF-Series: 14,520 cm³

Product benefits

1. Improved flow and even pressure distribution for maximum efficiency: with WAY FIN TECHNOLOGY, a guide fin in the end tank provides even better flow and more even pressure distribution throughout the core, achieving maximum efficiency.
2. Reduced pressure loss: to reach the programmed boost pressure, the turbocharger must operate at a higher speed when pressure loss is greater. This increases the turbocharger’s thermal load and wear.
3. Cooler charge air.
4. Earlier response and improved performance: performance differences were recorded after the third rolling-road run.

What exactly does an upgraded intercooler provide?

To express the precise power increase provided by an intercooler in figures, many unknown factors must be considered, including factory power variation, other hardware changes and the software used during measurement. Results vary from vehicle to vehicle. As a rule of thumb, tuned engines can achieve up to 5–10% more performance.

Just as important is the fact that, at high outside temperatures, an upgraded intercooler prevents a loss of performance or the activation of the temperature protection stored in many control units. This allows the engine to deliver its full performance, whether it has already been optimised or remains standard in terms of software.

Recommendation

Use our HF-Series intercoolers in combination with hardware and software optimisation. Reducing back pressure, which relieves the turbocharger, and cooling the charge air, which increases the oxygen content in the combustion chamber and reduces thermal load, creates an effective performance upgrade that makes efficient use of the potential of every turbocharged engine.

When carrying out hardware or software tuning, the factor of “boost pressure loss” must not be overlooked. Increasing a vehicle’s power through chip tuning also increases boost pressure in 99% of cases. When the standard intercooler is used, boost pressure loss rises exponentially. This means the turbocharger has to work even harder, increasing its thermal load, reducing its service life and accelerating wear due to higher speeds.

Our HF-Series intercoolers create the perfect balance between cooling performance and boost pressure loss.

Suitable for: Audi A4 III (B8), Audi A5 I (B8).

Manufacturer’s vehicle data

• HF-Series Ladeluftkühler Kit Audi A4/A5 B8 B8.5

Original product name by HG Motorsport (»z.B.« = e.g.). Please check model, year and engine of your vehicle before ordering; if in doubt, contact us and we will check for you.

Approval

This part comes with a German Teilegutachten (parts certificate); the document is included. In Germany the part must be entered in the vehicle registration after fitting.
