HF-Series intercooler kit for Audi TT 8N 1.8T 150/180 PS

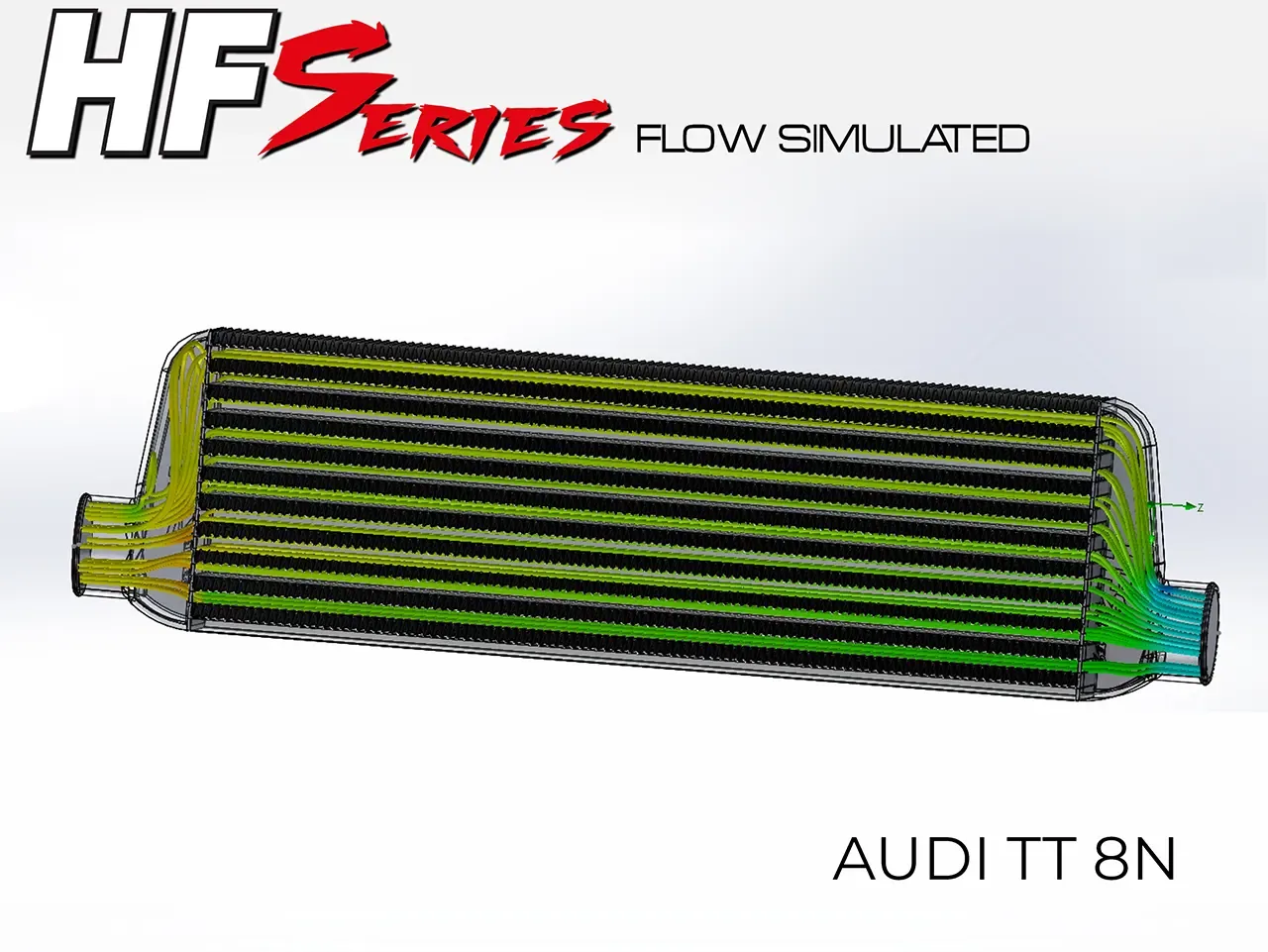

This upgrade intercooler kit for Audi TT 8N models producing 150 PS and 180 PS is a highlight of the HF-Series range. The high-quality HFT core provides excellent cooling performance, even under demanding conditions, while remaining highly robust. It offers high resistance to heat and does not warm up as much as comparable cores from other manufacturers. The complete system is also designed for optimum airflow. This means minimal pressure loss, while the entire charge-air route has been developed using CAD flow analyses. The intercooler end tanks are made from high-strength cast aluminium.

Product benefits:

• significantly cooler charge air, improving engine combustion
• quicker engine response
• improved airflow

This makes the product suitable both for standard power and for motorsport use, as considerably higher power outputs are also possible. Each intercooler is built for the specific vehicle, calculated using flow simulations and tested on a rolling-road dynamometer.

Technical details

• Length: 540 mm (core)
• Height: 180 mm (core)
• Depth: 65 mm (core)
• Core volume without end tanks: 6,318 cm³
• Core: HFT
• End tanks: cast aluminium
• Piping: included
• Frontal area: 97.2 cm²
• Parts certificate included for straightforward registration under §19.3

Direct comparison

• Standard intercooler
  • Size: 177mmx183mmx85mm
  • Volume: 2,753 cm³
  • Frontal area: 32,391cm²
• HF-Series
  • Size: 540mmx180mmx65mm
  • Volume: 6,318 cm³
  • Frontal area: 97,2cm²

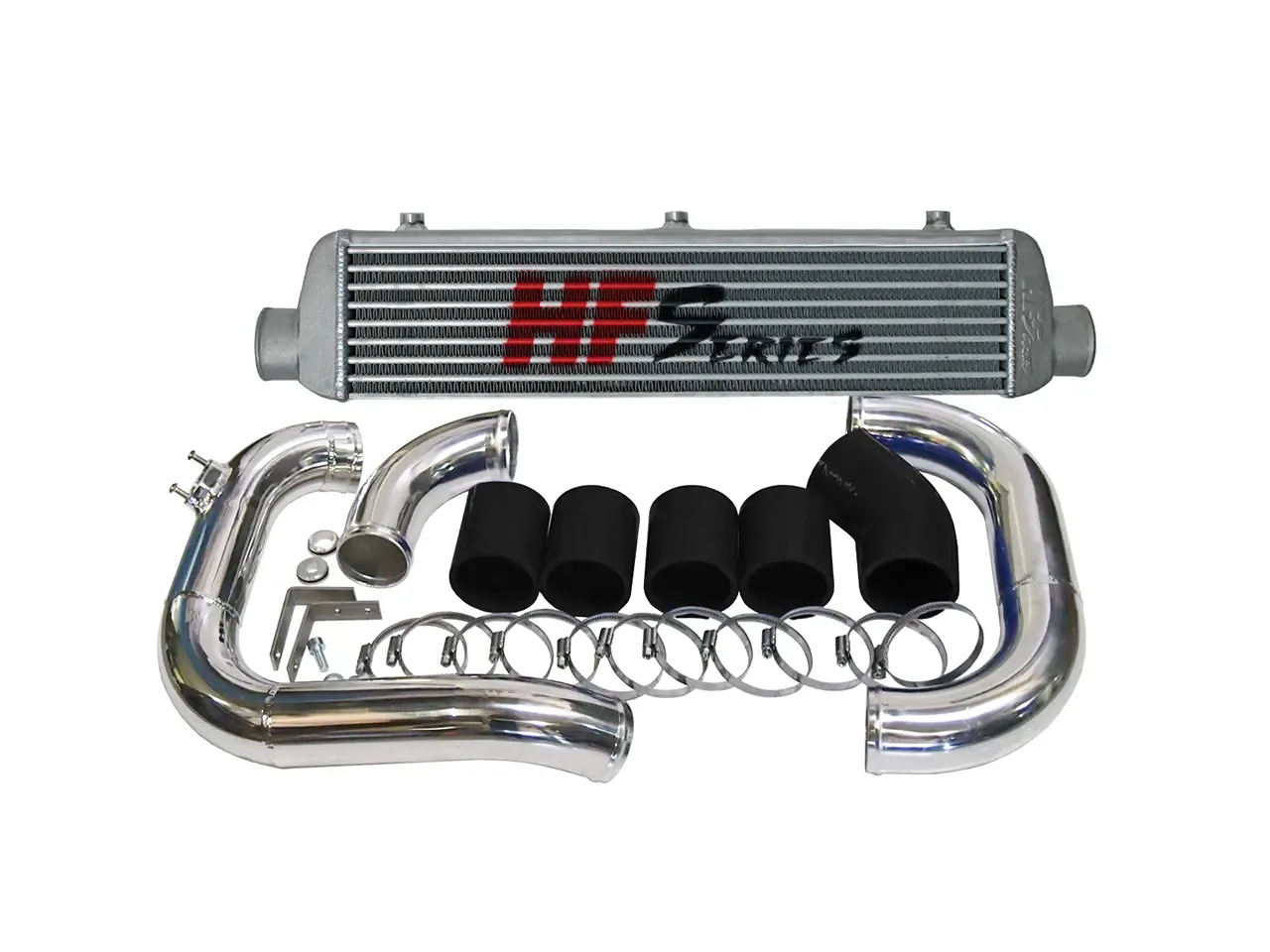

Scope of delivery

• intercooler
• intercooler pipes
• black SF-Hoses 45°C silicone elbow
• black SF-Hoses silicone joiner
• fitting hardware
• parts certificate under §19.3

What exactly does an upgrade intercooler provide?

It is not possible to express the exact power increase provided by an intercooler as a single figure, as many unknown factors must be considered, such as factory power variation, other hardware changes and the software used during measurement. This differs from one vehicle to another. As a rule of thumb for tuned engines, an increase of up to 5–10 % may be expected.

At least equally important is the fact that, at high ambient temperatures, an intercooler helps prevent power loss or even the activation of the temperature protection stored in many engine control units. This allows you to rely on the engine delivering its full power, whether it has already been optimised or is to remain standard in terms of software.

Recommendation

We recommend using HF-Series intercoolers in combination with hardware and software optimisation. Reducing back pressure, which relieves the turbocharger, and cooling the charge air, which increases the oxygen content in the combustion chamber and reduces thermal load, allows the potential of every turbocharged engine to be used efficiently.

When carrying out hardware or software tuning, charge pressure loss must not be overlooked. If vehicle power is increased through chip tuning, charge pressure is also increased in 99% of cases. With the standard intercooler still fitted, charge pressure loss rises exponentially. The turbocharger must work harder, increasing its thermal load and reducing its service life; high rotational speeds also accelerate wear. HF-Series intercoolers provide the ideal balance between cooling performance and charge pressure loss.

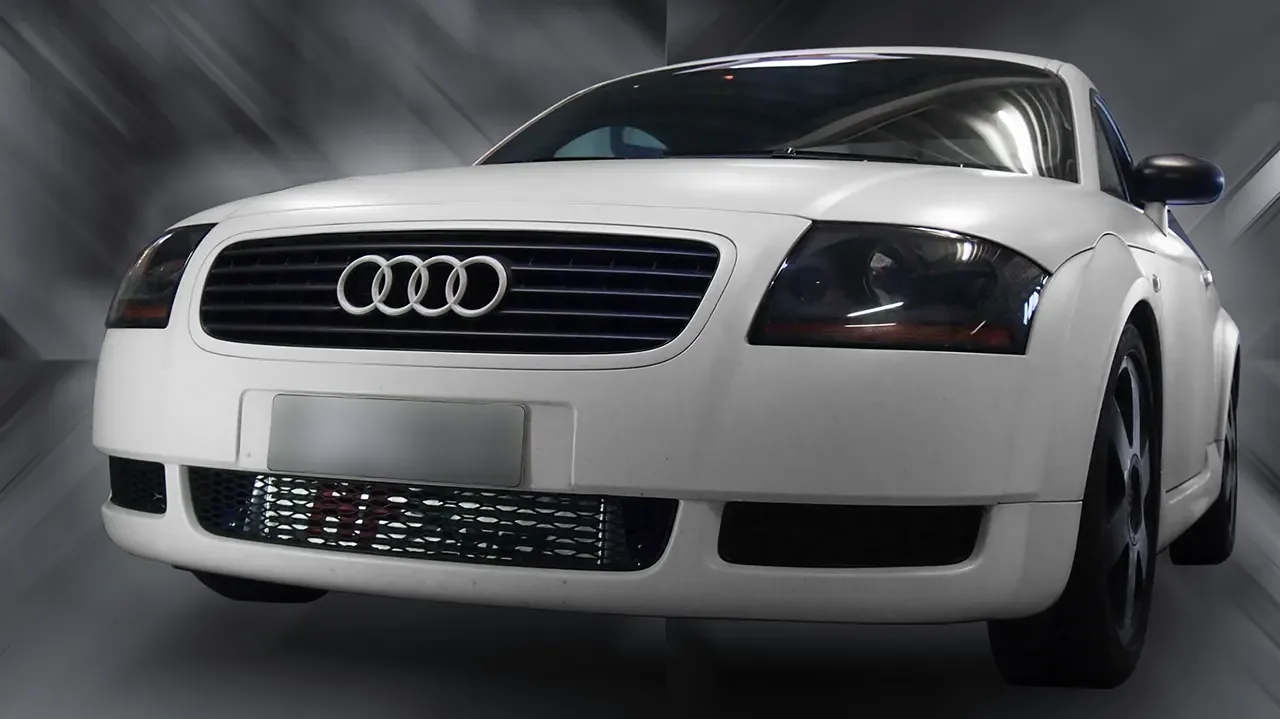

Suitable for: Audi TT I (8N).

Manufacturer’s vehicle data

• HF-Series Ladeluftkühler Kit Audi TT 8N 1.8T 150/180PS

Original product name by HG Motorsport (»z.B.« = e.g.). Please check model, year and engine of your vehicle before ordering; if in doubt, contact us and we will check for you.

Approval

This part comes with a German Teilegutachten (parts certificate); the document is included. In Germany the part must be entered in the vehicle registration after fitting.
