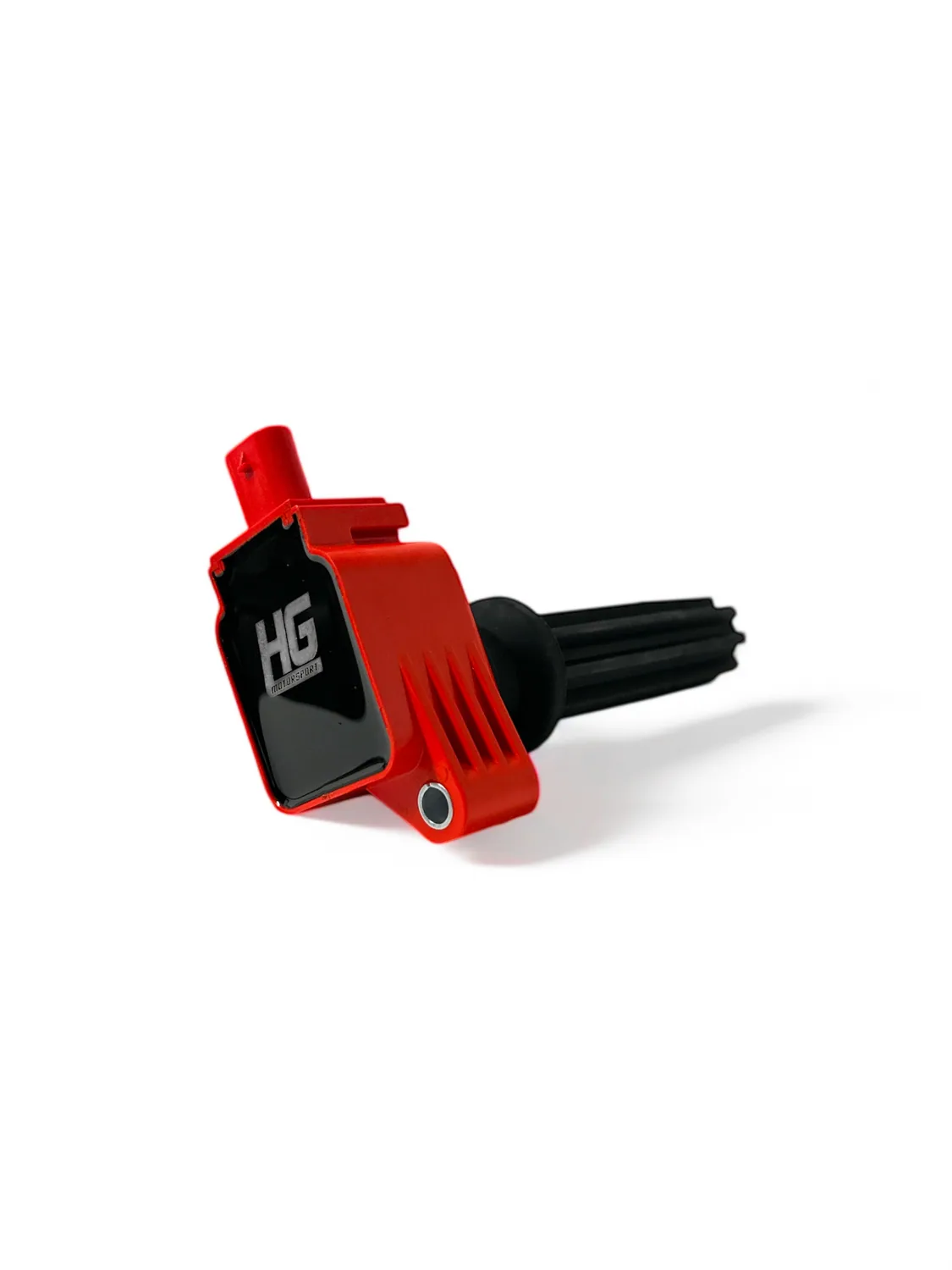

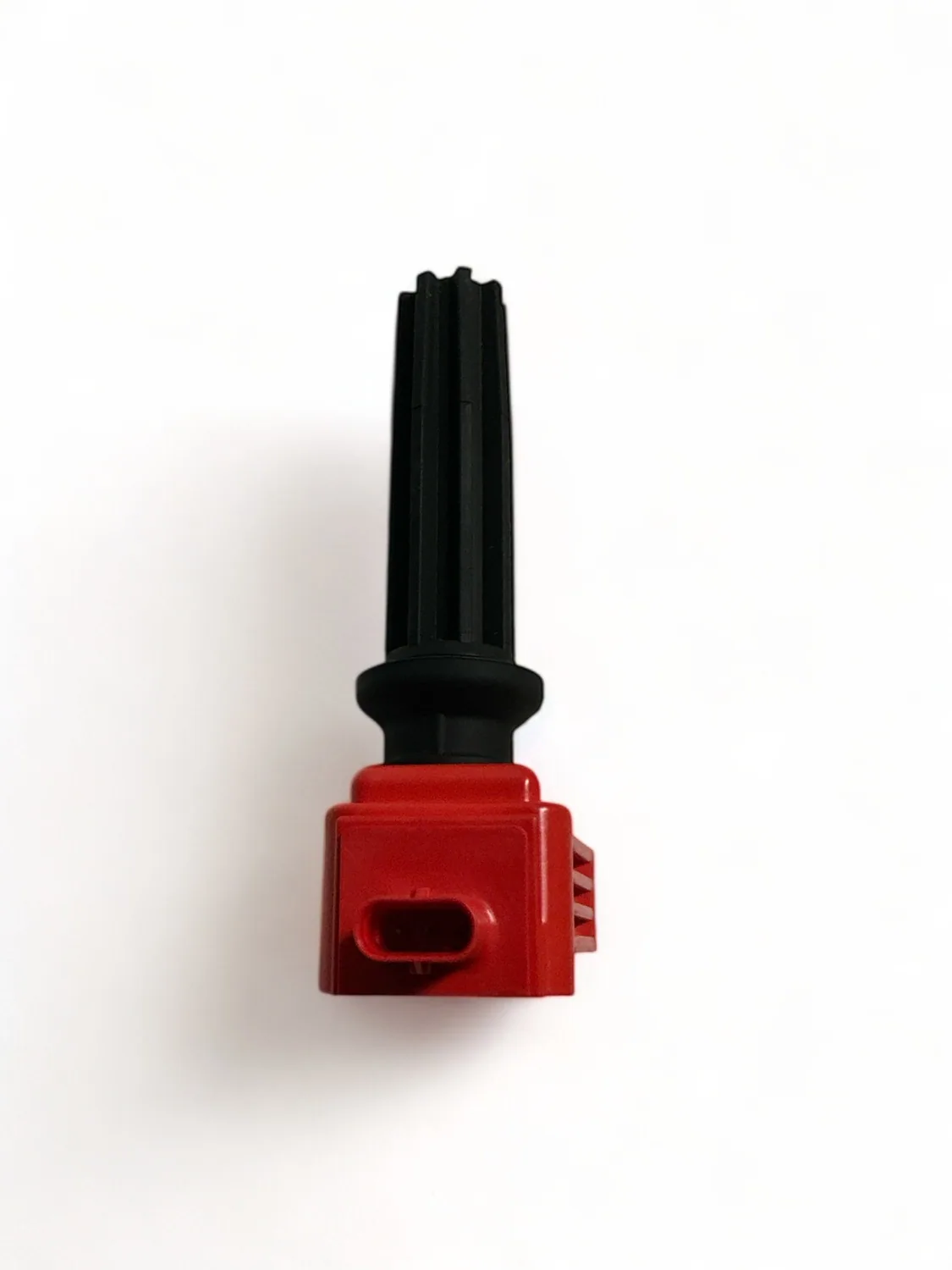

HG Motorsport ignition coils for Ford Focus III RS/ST 2.0/2.3 EcoBoost

Technical optimisation for maximum performance

HG Motorsport high-performance ignition coils provide maximum ignition energy and high thermal stability for modern high-performance engines.

In modern vehicles, particularly engines with increased power, original ignition coils quickly reach their limits. Misfires, uneven combustion and thermal overload can result. HG Motorsport ignition coils have been specifically developed to overcome these challenges. They offer increased ignition energy, improved thermal stability and consistently reliable performance, even under the most demanding conditions.

Technical features of the HG Motorsport ignition coils

• Optimised primary and secondary windings: more windings and high-quality copper wire provide improved energy transfer and consistently high ignition voltage.
• Increased ignition energy (+10% compared with OE): perfect spark plug supply throughout the entire dwell period, ideal for high-performance engines.
• Consistent energy output under high load: particularly suitable for turbocharged and supercharged engines that require stable ignition voltage over longer periods.
• Extended service life: high-quality insulation materials and optimised windings minimise thermal stress and protect against internal short circuits.
• Thermal resistance: continuous use up to 120°C and stable operation up to 140°C without loss of performance.
• Optimised spark formation: stable ignition at high boost pressures and richer mixtures, significantly improving combustion efficiency.

Ignition energy comparison

The diagram shows the superior ignition energy of the HG Motorsport ignition coils compared with standard components:

• Up to 1.5 ms: both coil types deliver comparable energy.
• From 2.0 ms: the energy of standard ignition coils drops considerably, while the HG Motorsport ignition coils continue to deliver consistently high values.
• At 3.0 ms: the HG Motorsport ignition coils deliver almost 25% more energy, which is crucial at high engine speeds and in engines with increased power.

Even at a temperature of 140°C, the ignition energy of the HG Motorsport ignition coils remains stable at 70 mJ, while OE coils are already failing or reaching critical values.

Ideal for the following applications

• High-performance engines: optimal ignition even under extreme loads.
• Motorsport and trackdays: stability and consistent energy during continuous operation.
• Daily drivers with increased power: improved efficiency and ignition stability in everyday use.
• Replacement for OEM ignition coils: greater reliability and longer service life.

Winding structure and operation

The ignition coils use an optimised primary and secondary coil structure. The primary winding generates a strong magnetic field; when this field collapses, a high voltage is induced in the secondary winding. The increased number of windings and improved insulation ensure consistent ignition energy, even at high engine speeds and peak loads.

Thermal testing and long-term results

1. Continuous thermal load

• Test set-up: continuous operation at 120°C with simulated load changes over 100 hours.
• Result: no reduction in performance and no thermal degradation of the HG Motorsport ignition coils.
• Comparison: OE ignition coils lost approximately 25% of their energy after 50 hours, followed by initial material changes.

Additional test at 140°C

• HG Motorsport: stable operation for 8 hours without failures.
• OE ignition coils: performance loss of up to 40% after 4 hours, followed by thermal failures.

Summary of laboratory data:

• Maximum ignition energy: HG Motorsport 120 mJ; OE ignition coil 90 mJ.
• Continuous load at 120°C: HG Motorsport > 100 hours; OE ignition coil 50 hours.
• Functionality at 140°C: HG Motorsport stable for up to 8 hours; OE ignition coil – performance drop after 4 hours.
• Insulation resistance (500 V): HG Motorsport > 20 MΩ; OE ignition coil approx. 10 MΩ.

The ignition coil replaces the following OEM numbers: 5121 001, 5153 009, 5168 444, CM5E-12A36-6BB, CM5E-12A36-6BC, CM5E-12A36-6CA, JDE 30294, JDE 30294, LR 030637.

Suitable for: Ford Focus III (DYB).

Manufacturer’s vehicle data

• HG Hochleistungs Zündspule Ford Focus 3 RS/ST 2.0 ,2.3 Ecoboost

Original product name by HG Motorsport (»z.B.« = e.g.). Please check model, year and engine of your vehicle before ordering; if in doubt, contact us and we will check for you.
