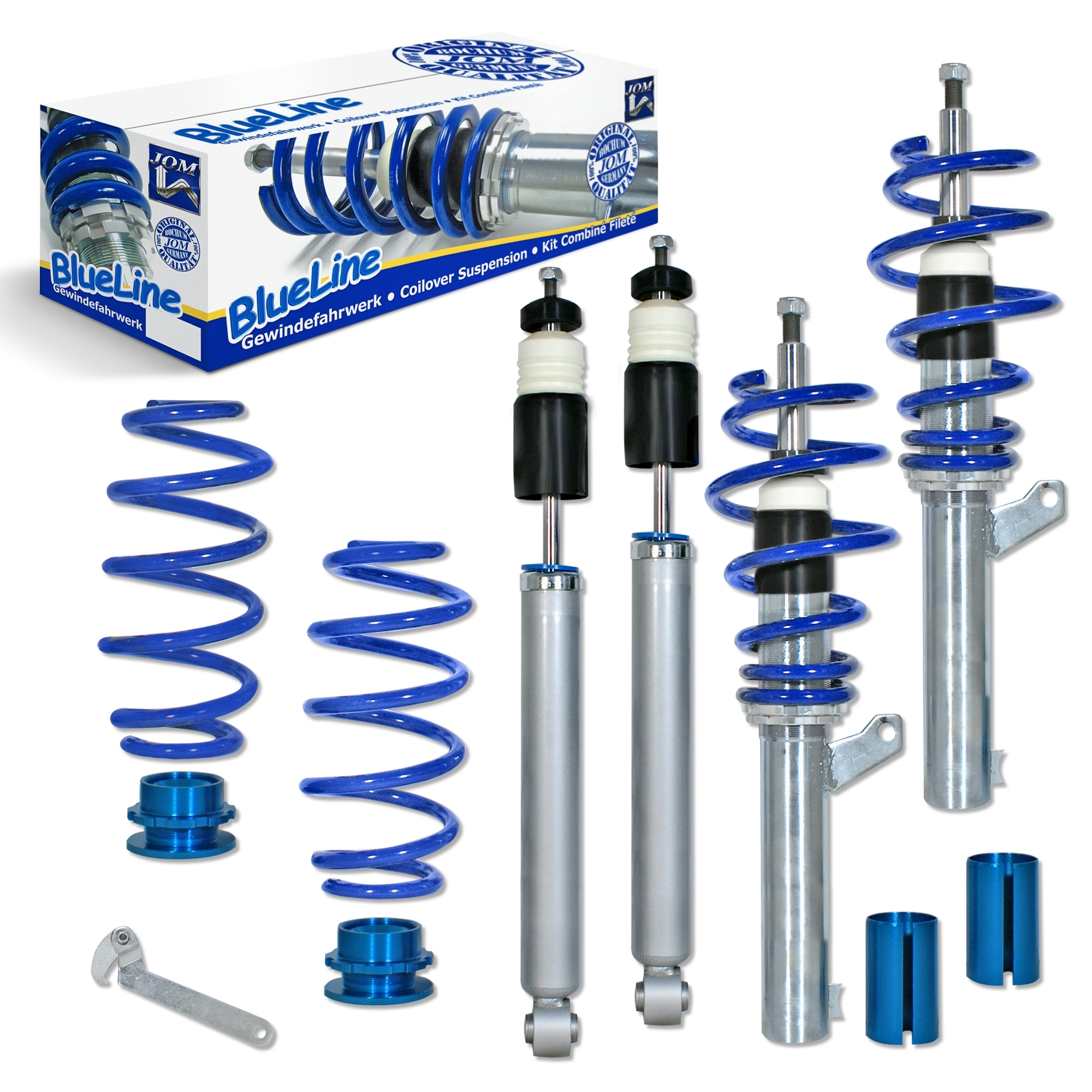

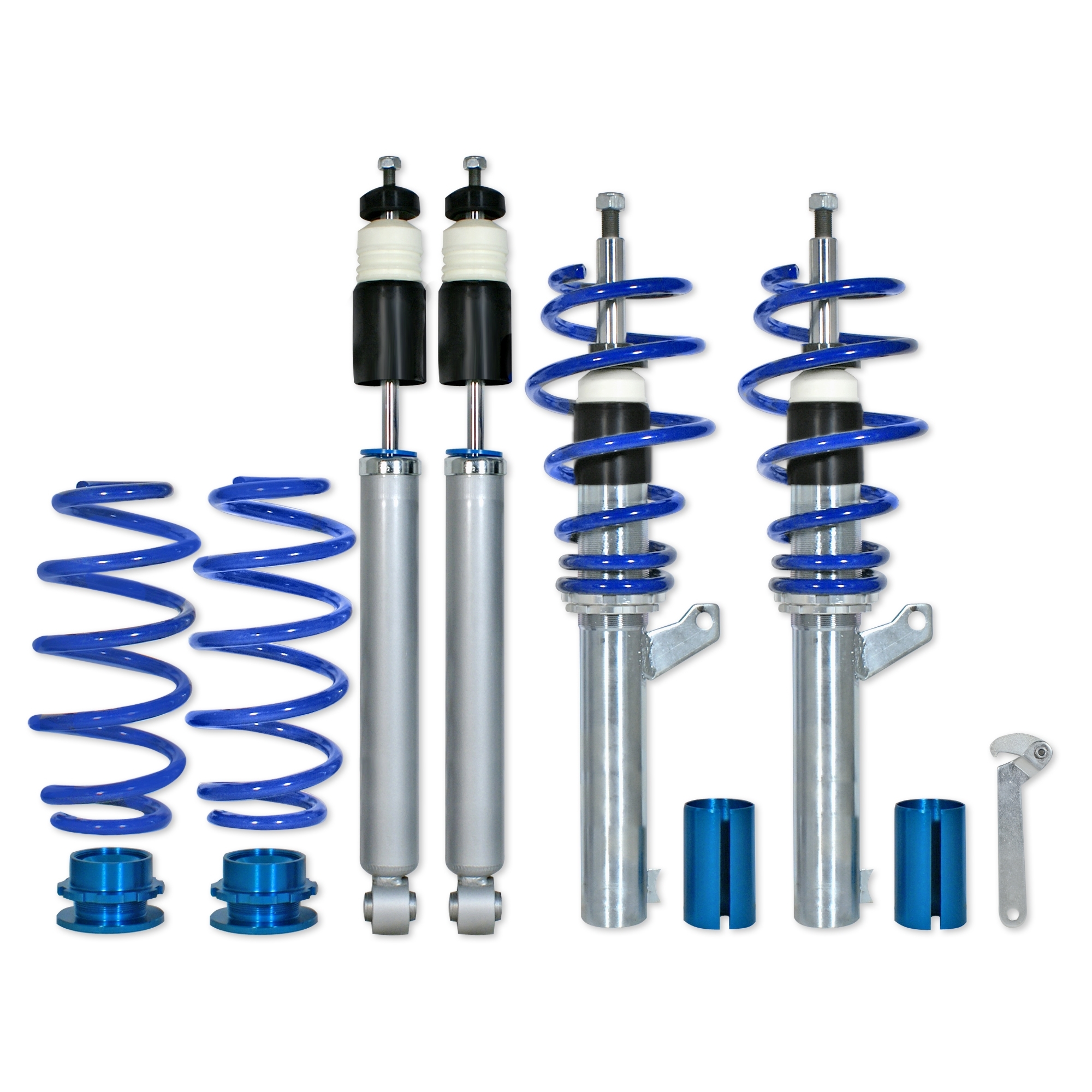

JOM BlueLine is the entry-level coilover range made in Germany by JOM. It lets you set the ride height to your liking and lower the car while retaining good driving characteristics. Built with galvanised dampers and EPS powder-coated cold-wound springs.
Compatibility
- A3 8P 2003-2012
- Only for front-wheel-drive models
- 1.2 TFSI, 1.4 TFSI, 1.6, 1.6 FSI
Restrictions
- Four-wheel-drive models (Quattro)
Technical specifications
| Max. front axle load | 1105 kg |
| Max. rear axle load | 990 kg |
| Lowering range (front axle) | 20-60 mm |
| Lowering range (rear axle) | 30-60 mm |
| Min. wheel-to-arch distance (front) | 340mm |
| Min. wheel-to-arch distance (rear) | 340mm |
| Rear adjustment ring position | on top |
Additional notes
Anti-roll bar end links are sold separately (#740225)
Strut bearings are sold separately:
Front axle (#740505)
Rear axle (#740511)
Approval
§19.3 approved (TÜV Teilegutachten). Original TÜV document.
