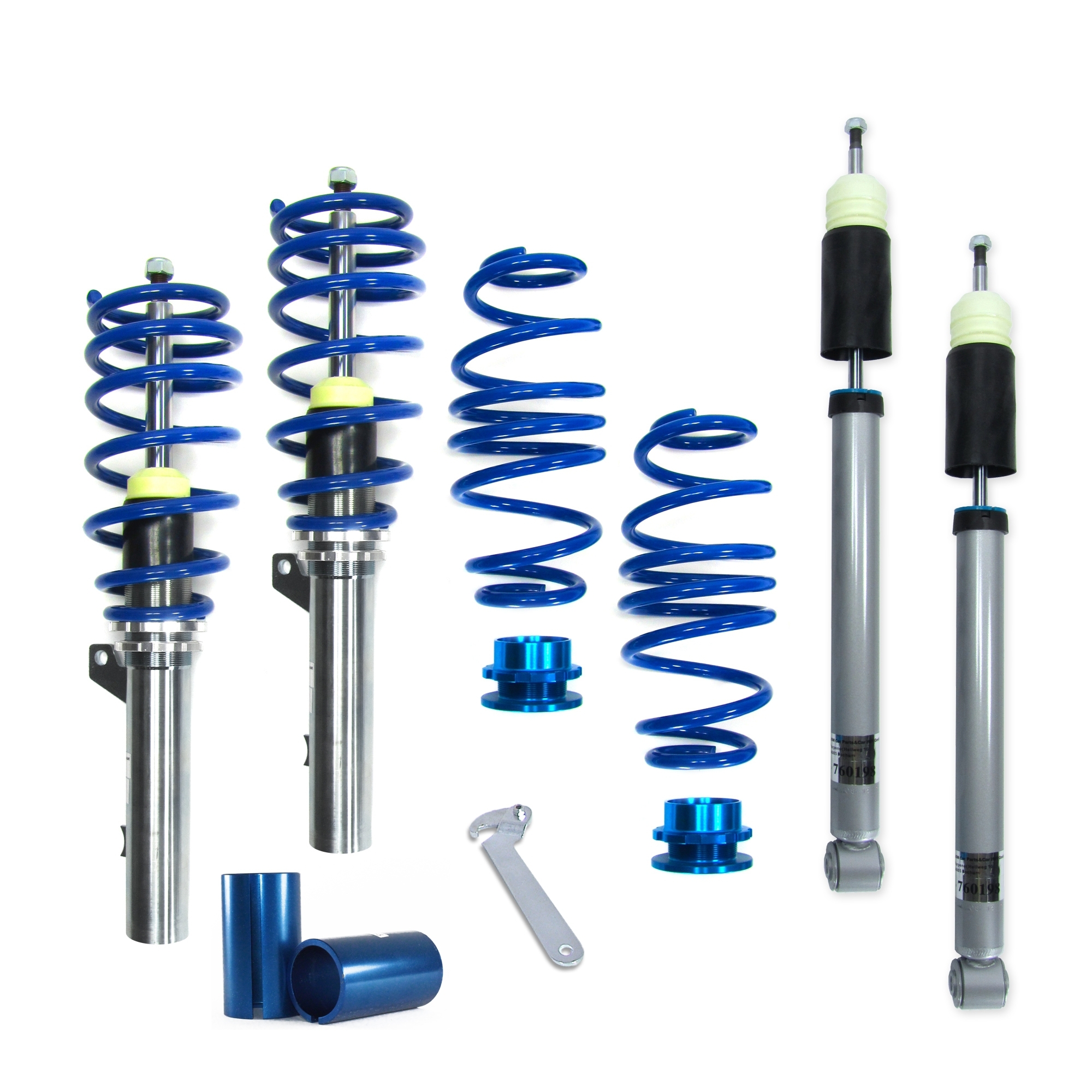

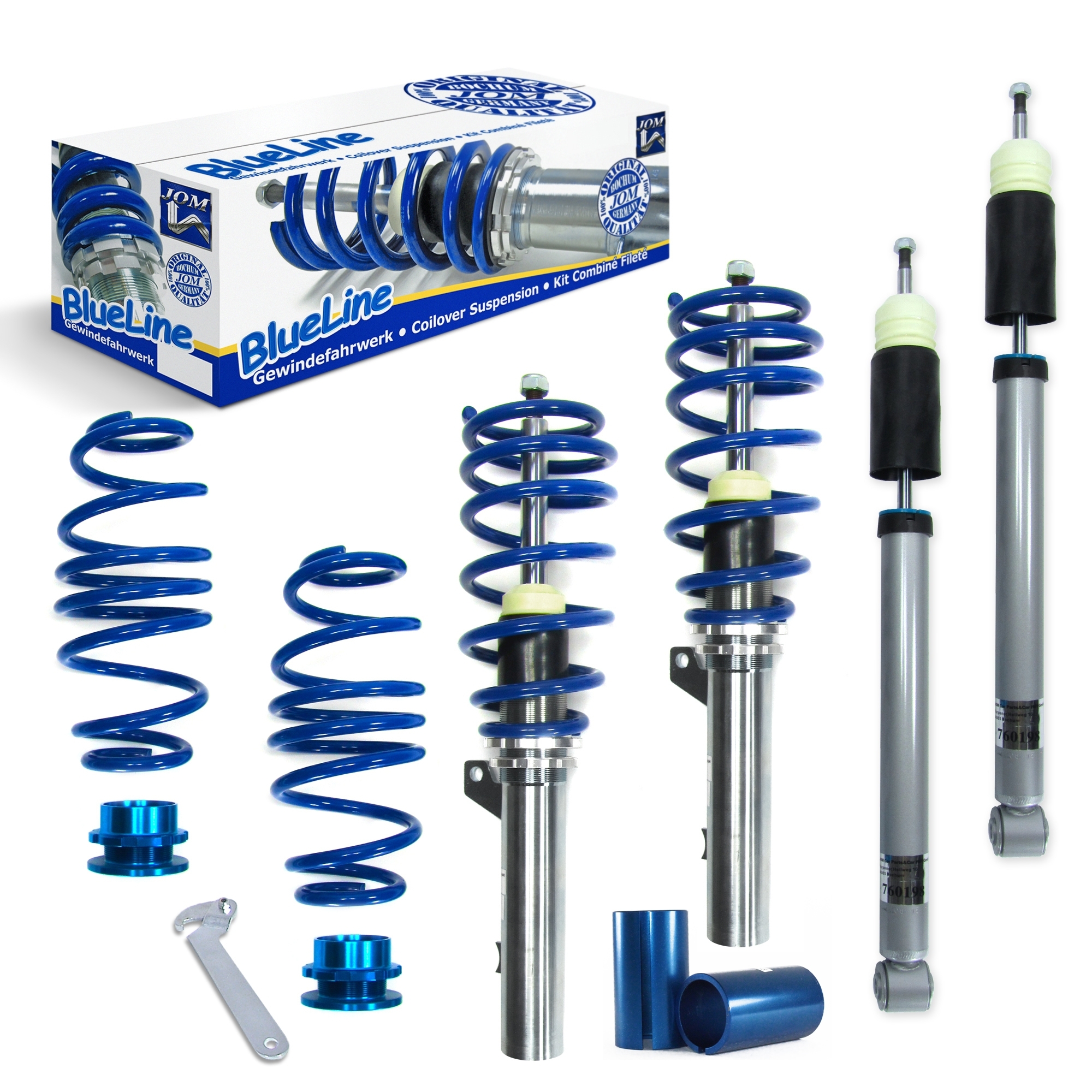

JOM BlueLine is the entry-level coilover range made in Germany by JOM. It lets you set the ride height to your liking and lower the car while retaining good driving characteristics. Built with galvanised dampers and EPS powder-coated cold-wound springs.
Compatibility
- A3 8V1 2012-2016
- A3 8VK 2016-2020
- A3 8VA Sportback 2012-2016
- A3 8VF Sportback 2016-2020
- A3 8VS Saloon 2013-2016
- A3 8VM Saloon 2016-2020
- A3 8V7 Convertible 2014-2016
- A3 8VE Convertible 2016-2020
- Only for models with torsion beam rear axle and TFSI engine (max. 81 kW/110km)
Restrictions
- models with multi-link rear axle (+85 kW/116 hp) or TDI models
Technical specifications
| Max. front axle load | 965 kg |
| Max. rear axle load | 1060 kg |
| Min. wheel-to-arch distance (front) | 320mm |
| Min. wheel-to-arch distance (rear) | 320mm |
| Rear adjustment ring position | on top |
Additional notes
The technically permitted load on each axle must be checked.
Approval
§19.3 approved (TÜV Teilegutachten). Original TÜV document.
