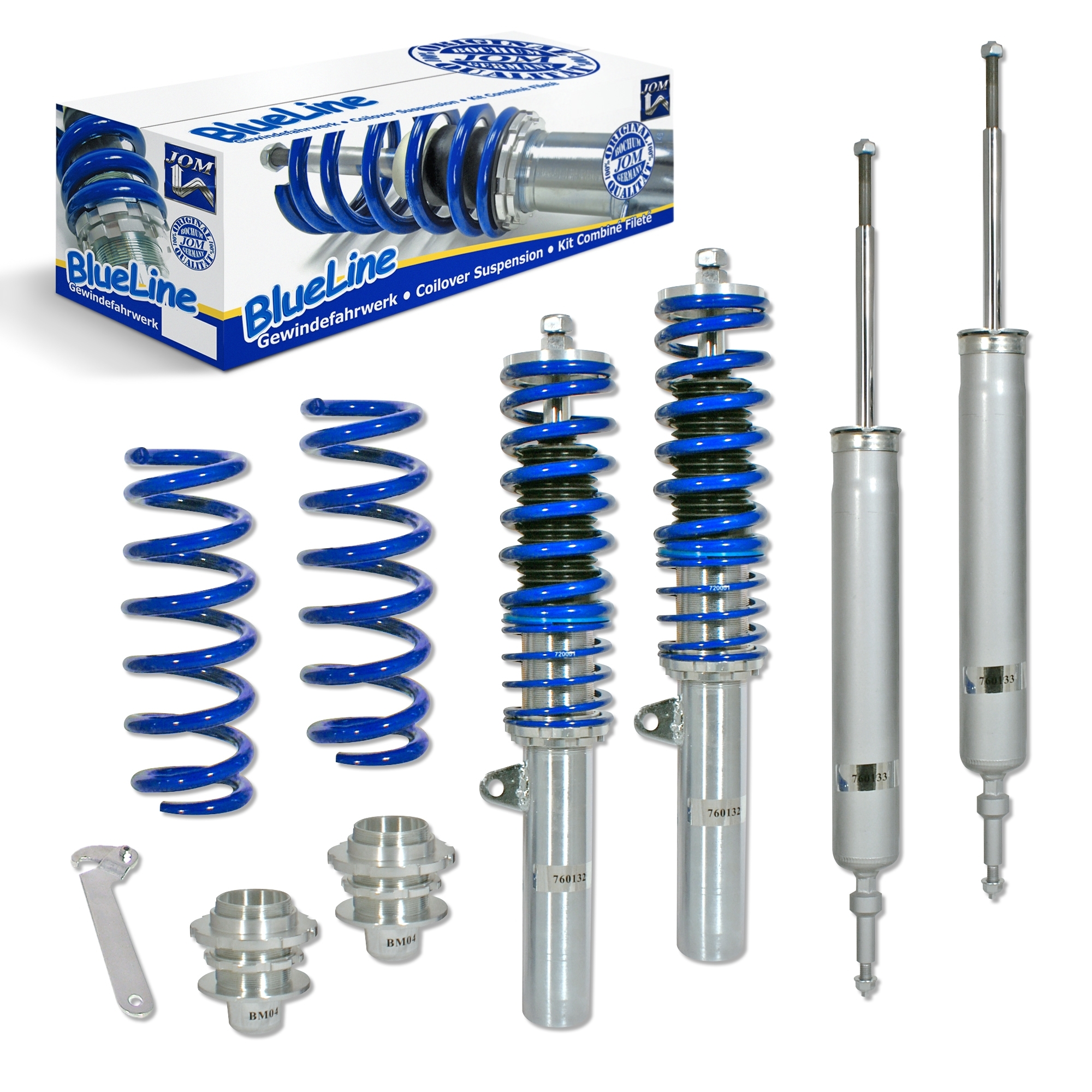

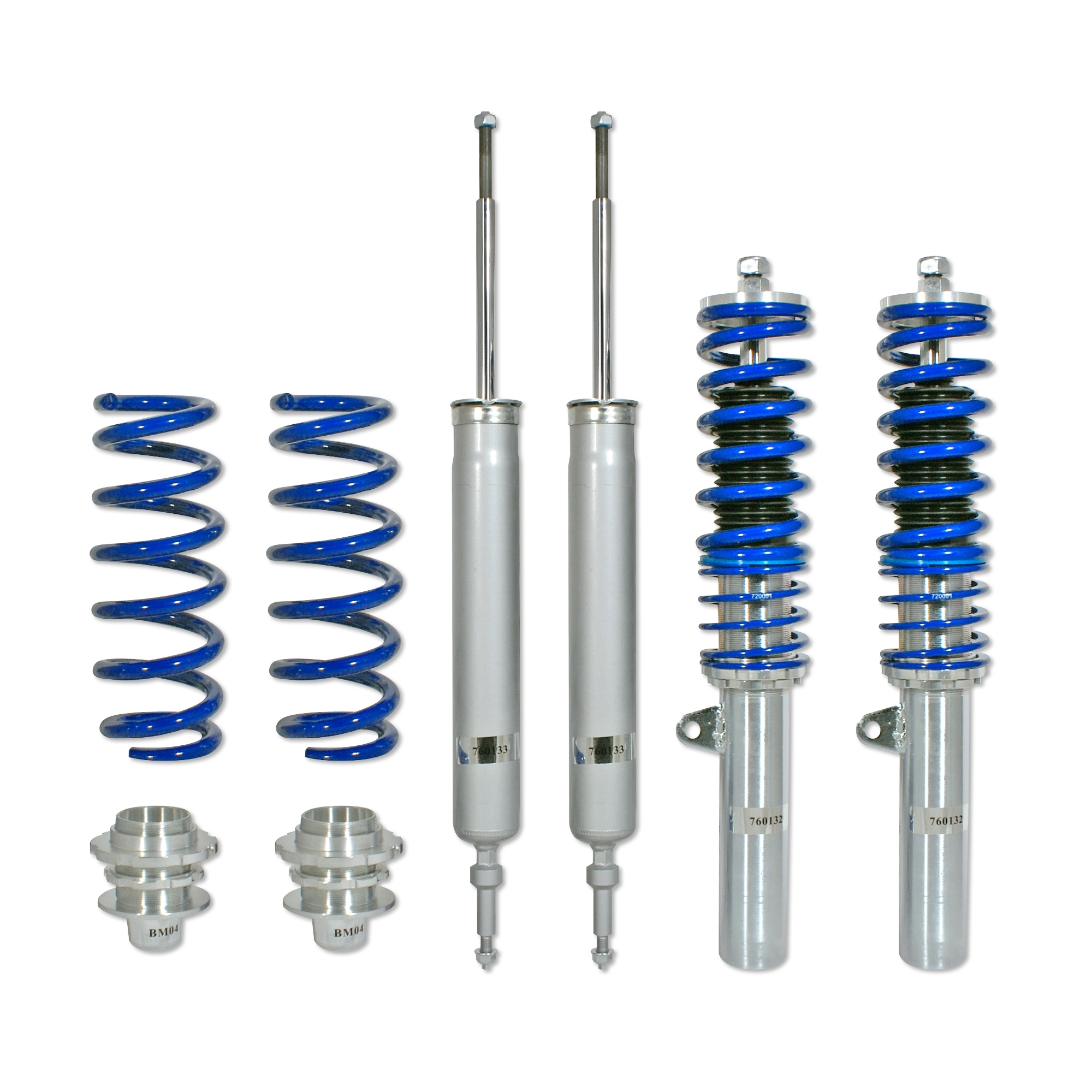

JOM BlueLine is the entry-level coilover range made in Germany by JOM. It lets you set the ride height to your liking and lower the car while retaining good driving characteristics. Built with galvanised dampers and EPS powder-coated cold-wound springs.
Compatibility
- 1 Series E81 3 door 2007-2012
- 1 Series E87 5 door 2004-2011
- 1 Series E82 Coupe 2007-2013
- 1 Series E88 Convertible 2008-2013
- Only for rear-wheel-drive models
Restrictions
- Four-wheel-drive models (xDrive)
Technical specifications
| Max. front axle load | 1020 kg |
| Max. rear axle load | 1315 kg |
| Lowering range (front axle) | 35-65 mm |
| Lowering range (rear axle) | 35-55 mm |
| Min. wheel-to-arch distance (front) | 330mm |
| Min. wheel-to-arch distance (rear) | 330mm |
| Rear adjustment ring position | on top |
Additional notes
Anti-roll bar end links are sold separately (#740357)
Strut bearings are sold separately:
Front axle (#740507)
Approval
§19.3 approved (TÜV Teilegutachten). Original TÜV document.
