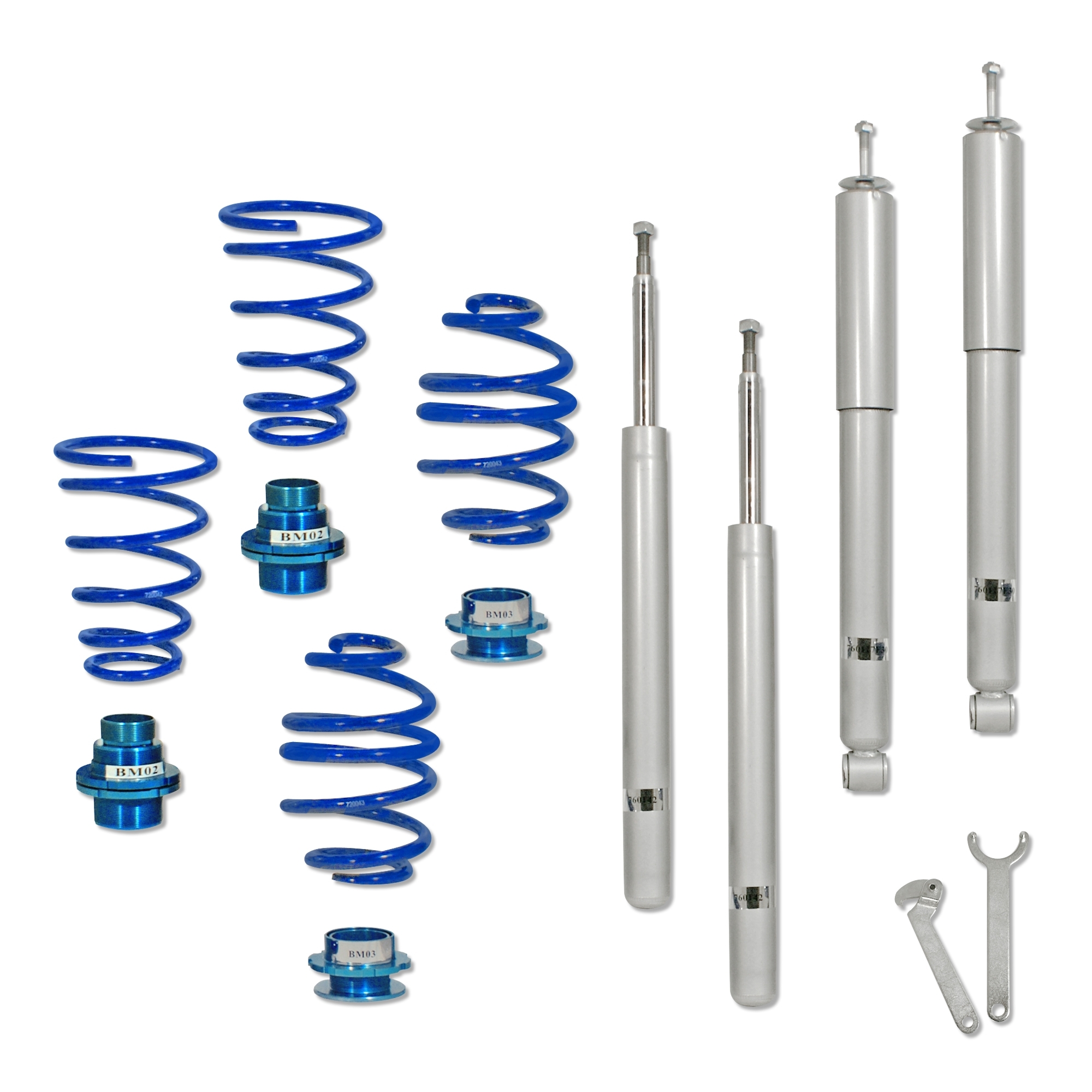

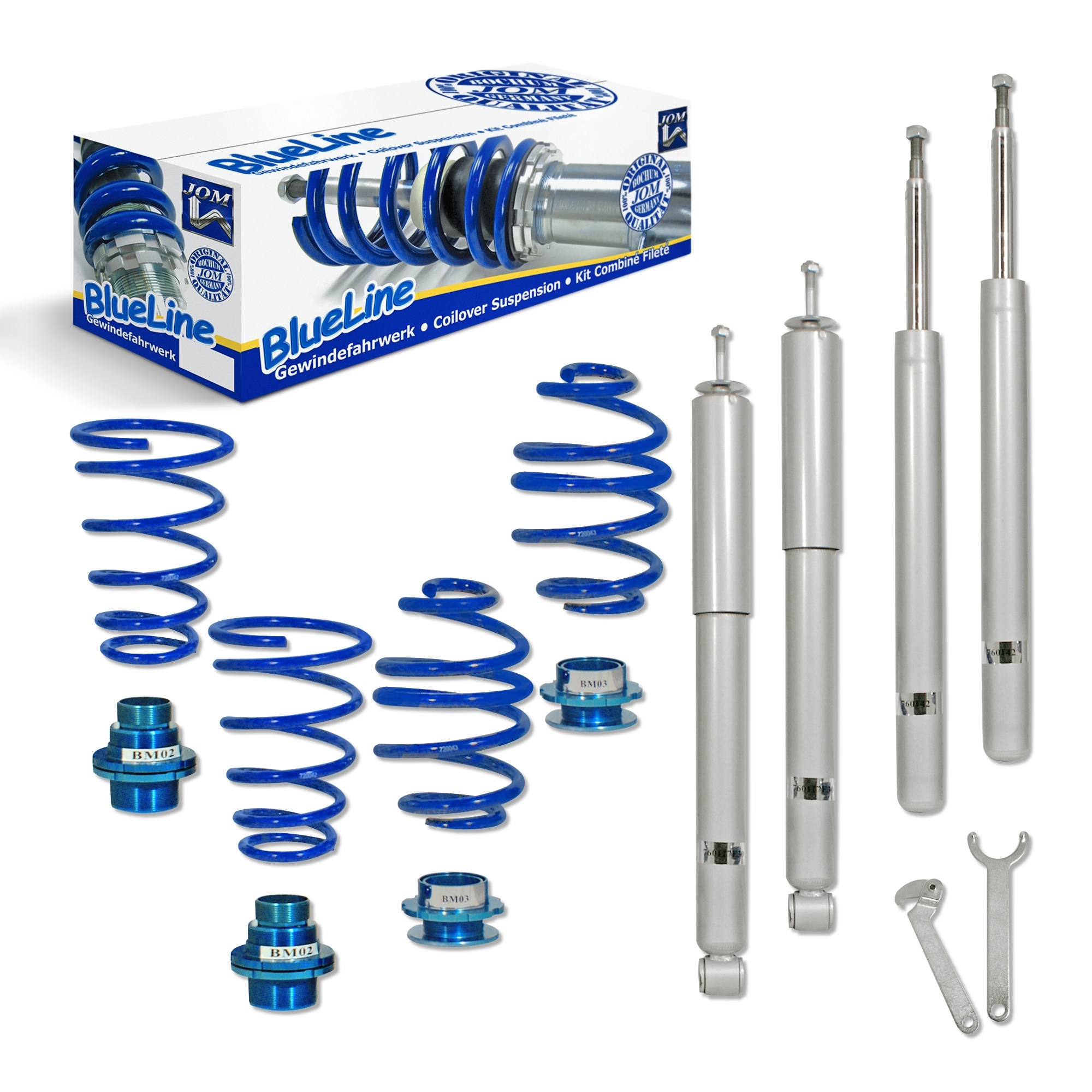

JOM BlueLine is the entry-level coilover range made in Germany by JOM. It lets you set the ride height to your liking and lower the car while retaining good driving characteristics. Built with galvanised dampers and EPS powder-coated cold-wound springs.
Compatibility
- 3 Series E30 Saloon (E30/2) 2 door 1982-1991
- 3 Series E30 Saloon (E30/4) 4 door 1983-1991
- Only for models with 51 mm struts and 2-wheel drive
Restrictions
- Convertible, Top Convertible, Touring, M3, iX or models with 45 mm struts
Technical specifications
| Max. front axle load | 890 kg |
| Max. rear axle load | 835 kg |
| Lowering range (front axle) | 40-65 mm |
| Lowering range (rear axle) | 40-65 mm |
| Min. wheel-to-arch distance (front) | 325mm |
| Min. wheel-to-arch distance (rear) | 300mm |
| Rear adjustment ring position | on top |
Additional notes
Strut bearings are sold separately:
Rear axle (#740508)
Approval
§19.3 approved (TÜV Teilegutachten). Original TÜV document.
