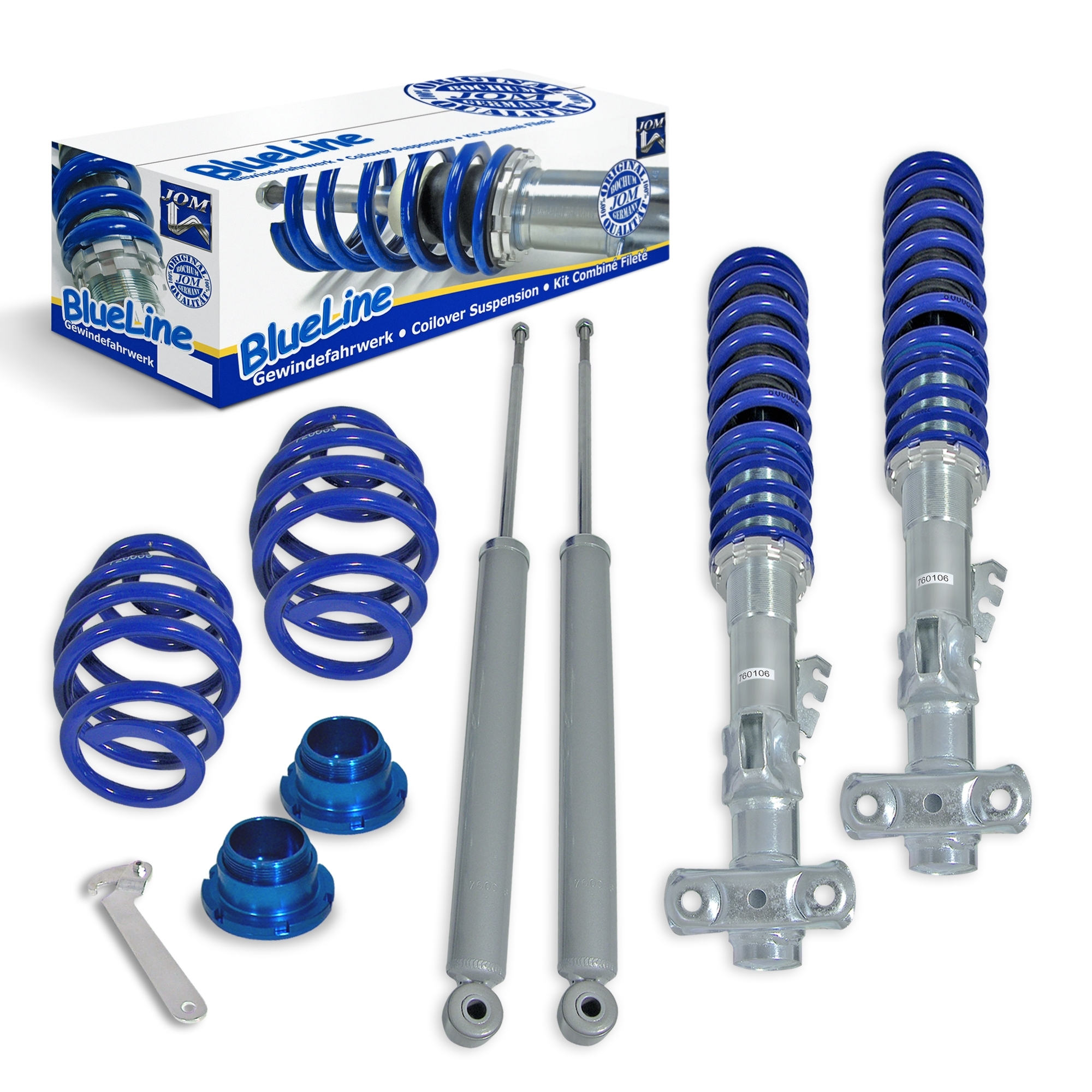

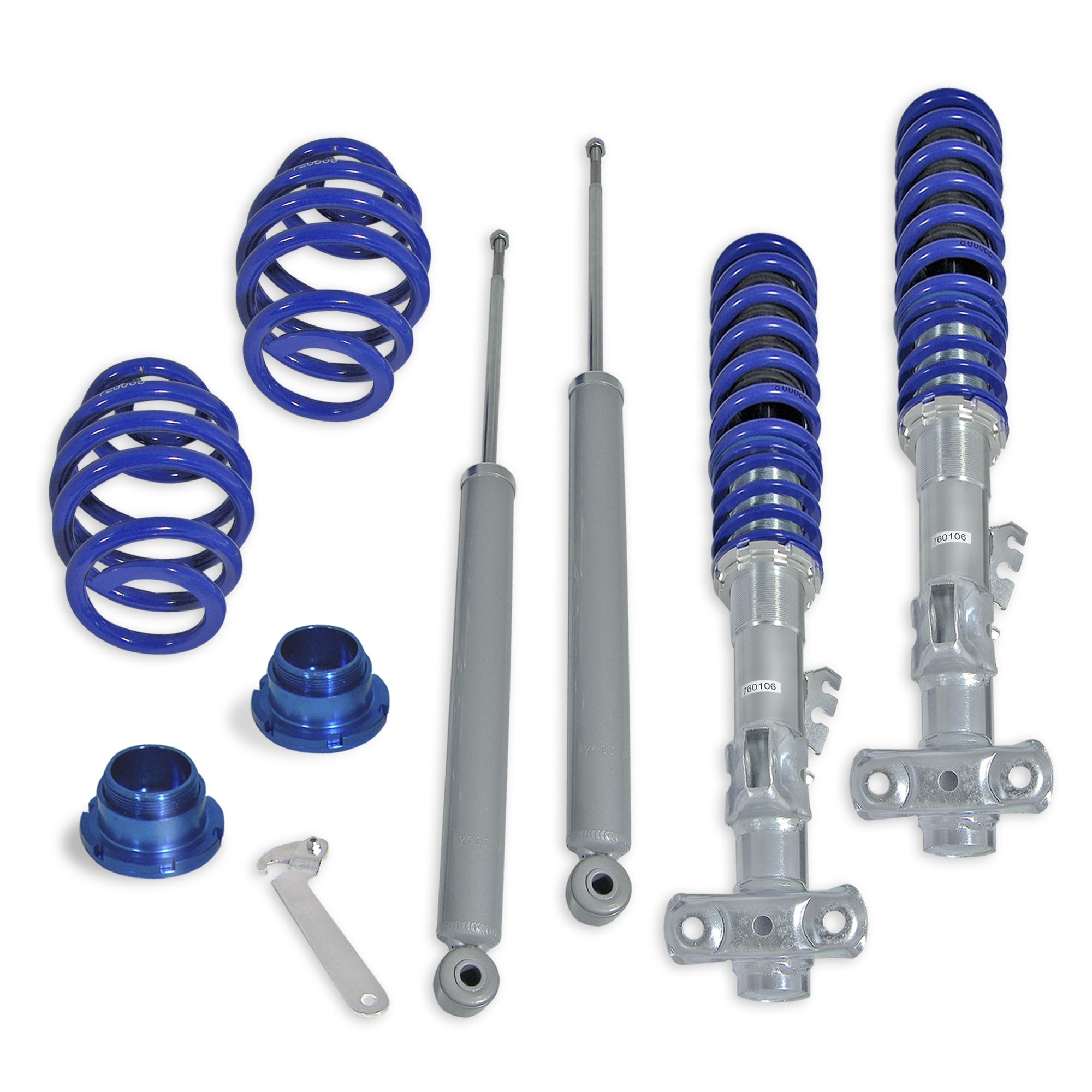

JOM BlueLine is the entry-level coilover range made in Germany by JOM. It lets you set the ride height to your liking and lower the car while retaining good driving characteristics. Built with galvanised dampers and EPS powder-coated cold-wound springs.
Compatibility
- 3 Series E36 Saloon 1992-1998
- 3 Series E36 Touring 1995-1999
- 3 Series E36 Convertible 1994-1999
- 3 Series E36 Coupe 1992-1999
Restrictions
- Compact, M3, Z3 or 1990–1992 models where the drop links are mounted directly on the strut
Technical specifications
| Max. front axle load | 890 kg |
| Max. rear axle load | 1150 kg |
| Lowering range (front axle) | 40-60 mm |
| Lowering range (rear axle) | 30-45 mm |
| Min. wheel-to-arch distance (front) | 310mm |
| Min. wheel-to-arch distance (rear) | 300mm |
| Rear adjustment ring position | on top |
Additional notes
Strut bearings are sold separately:
Front axle (#740500)
Rear axle (#740508)
Approval
§19.3 approved (TÜV Teilegutachten). Original TÜV document.
