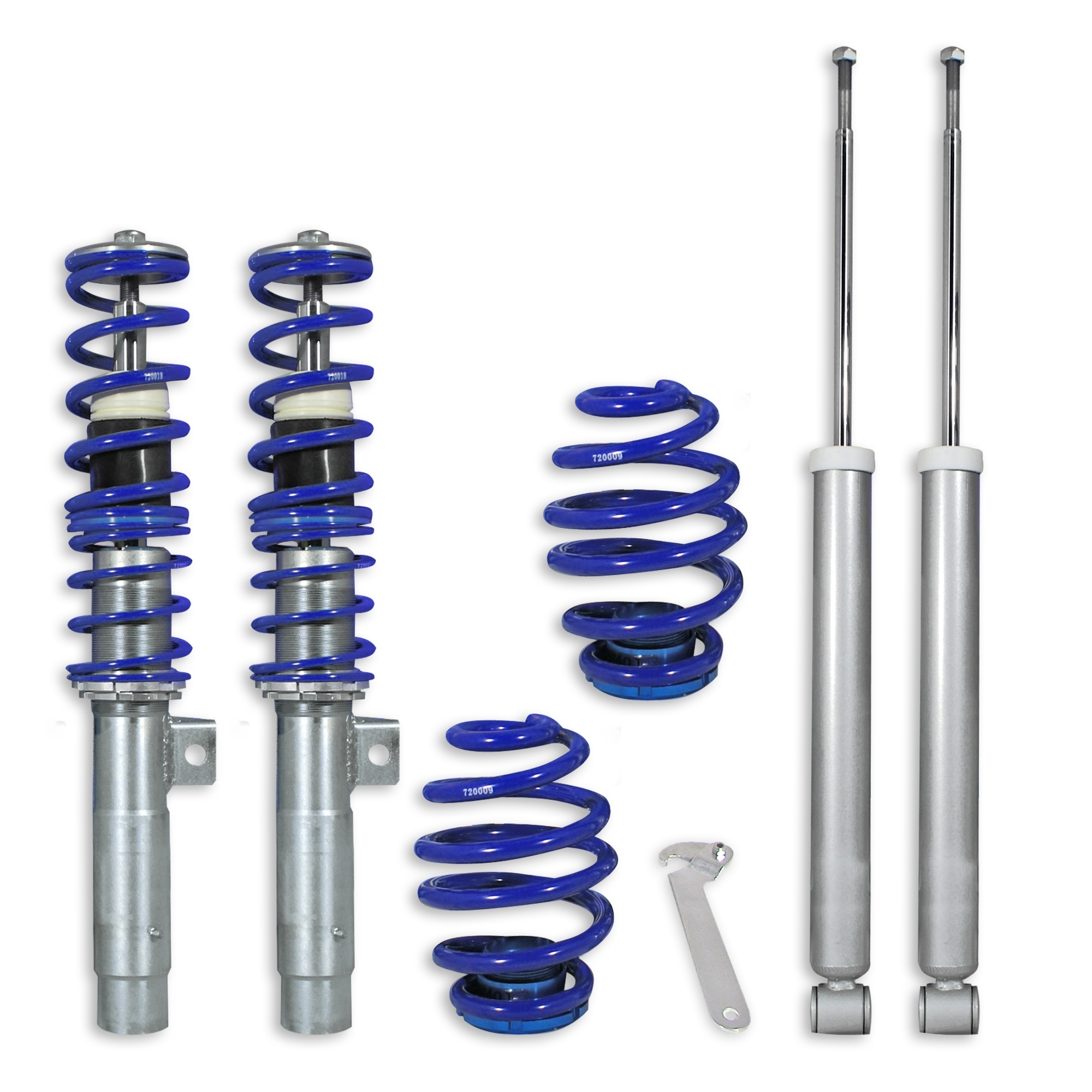

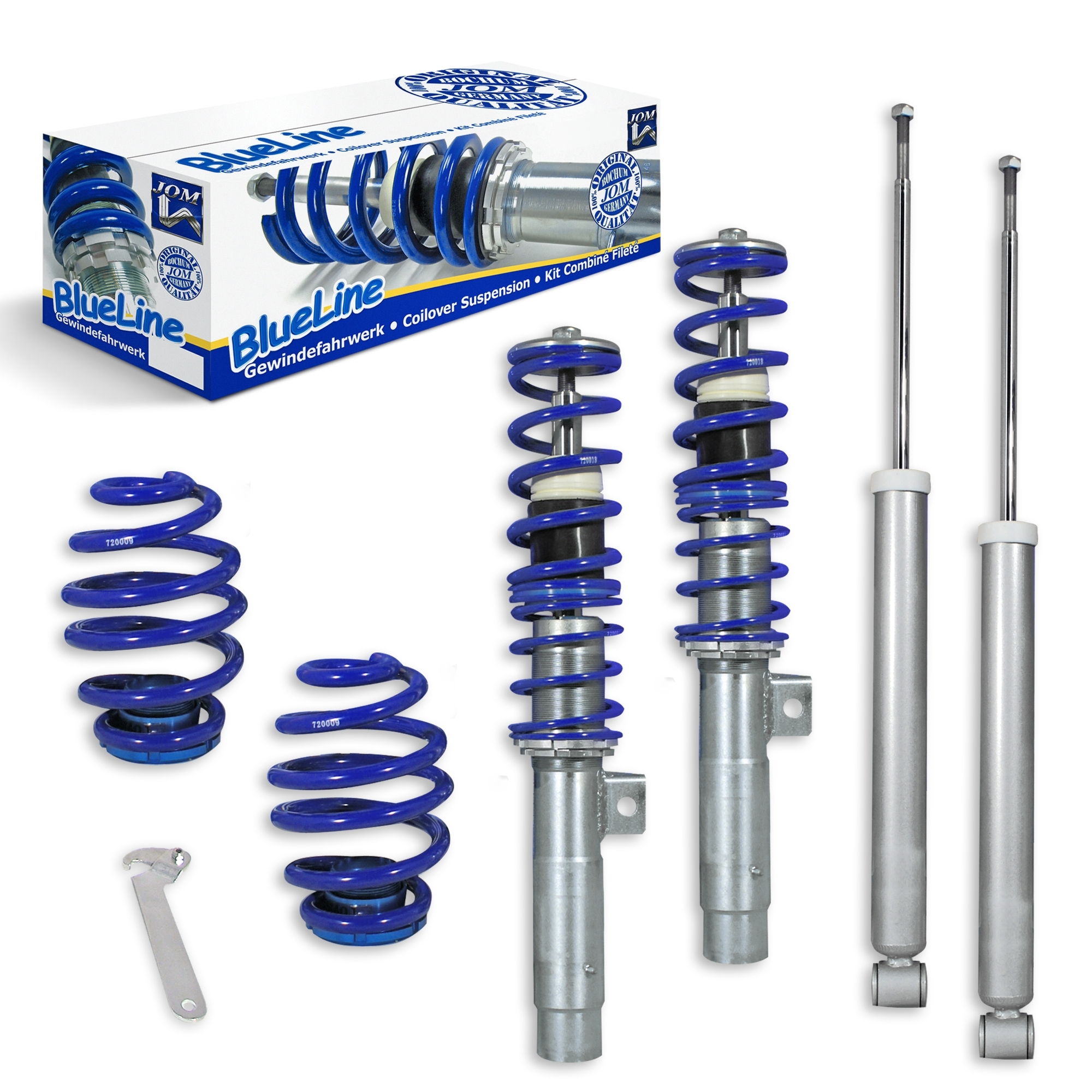

JOM BlueLine is the entry-level coilover range made in Germany by JOM. It lets you set the ride height to your liking and lower the car while retaining good driving characteristics. Built with galvanised dampers and EPS powder-coated cold-wound springs.
Compatibility
- 3 Series E46 Saloon 1998-2005
- 3 Series E46 Coupe 1999-2006
- 3 Series E46 Touring 1999-2005
- 3 Series E46 Convertible 2000-2007
- 3 Series E46 Compact 2001-2004
- Only for front-wheel-drive models
Restrictions
- Four-wheel-drive models
Technical specifications
| Max. front axle load | 1075 kg |
| Max. rear axle load | 1250 kg |
| Lowering range (front axle) | 40-65 mm |
| Lowering range (rear axle) | 30-60 mm |
| Min. wheel-to-arch distance (front) | 330mm |
| Min. wheel-to-arch distance (rear) | 320mm |
| Rear adjustment ring position | on top |
Additional notes
Anti-roll bar end links are required! Sold separately (#740228)
Strut bearings are sold separately:
Front axle (#740507)
Rear axle (#740508)
Approval
§19.3 approved (TÜV Teilegutachten). Original TÜV document.
