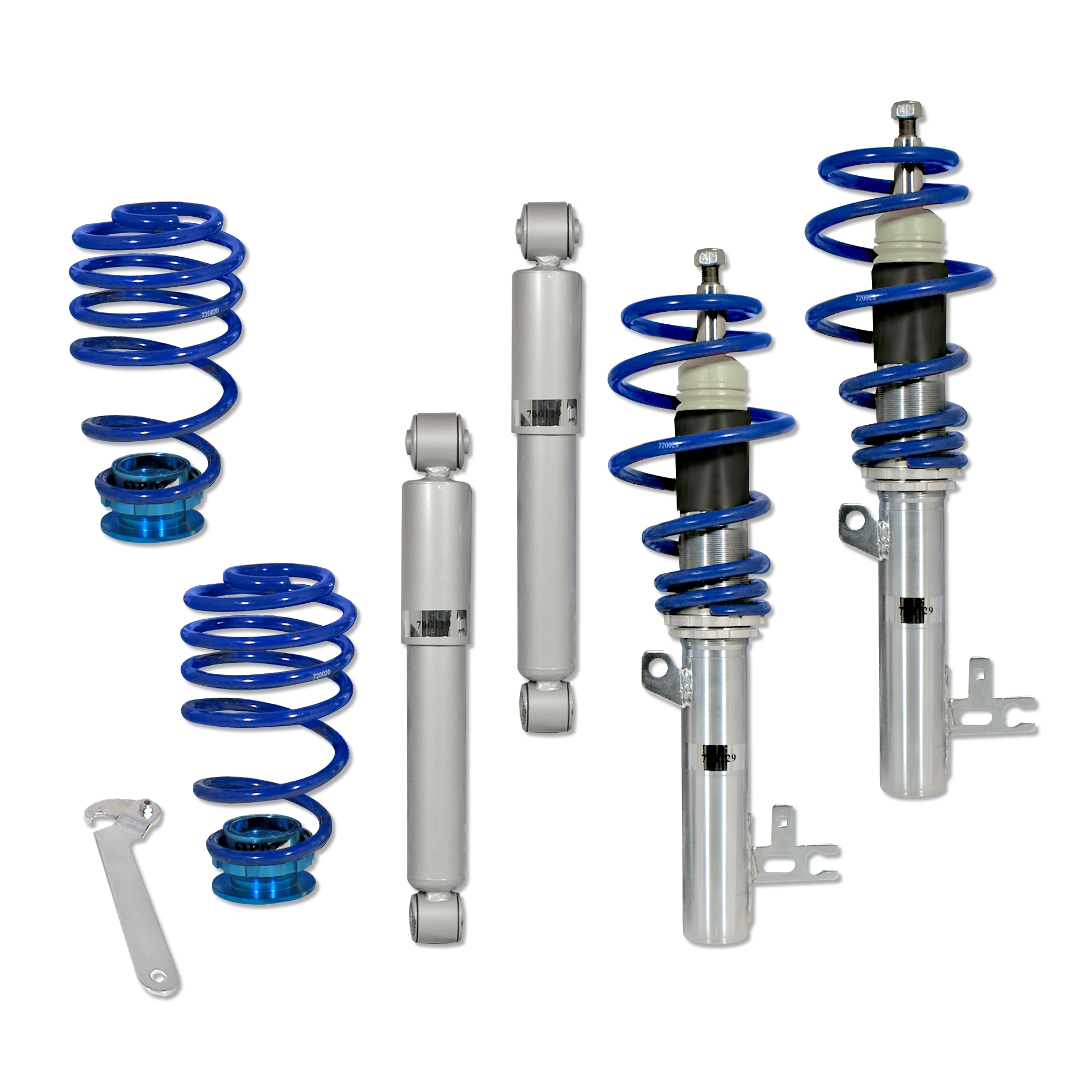

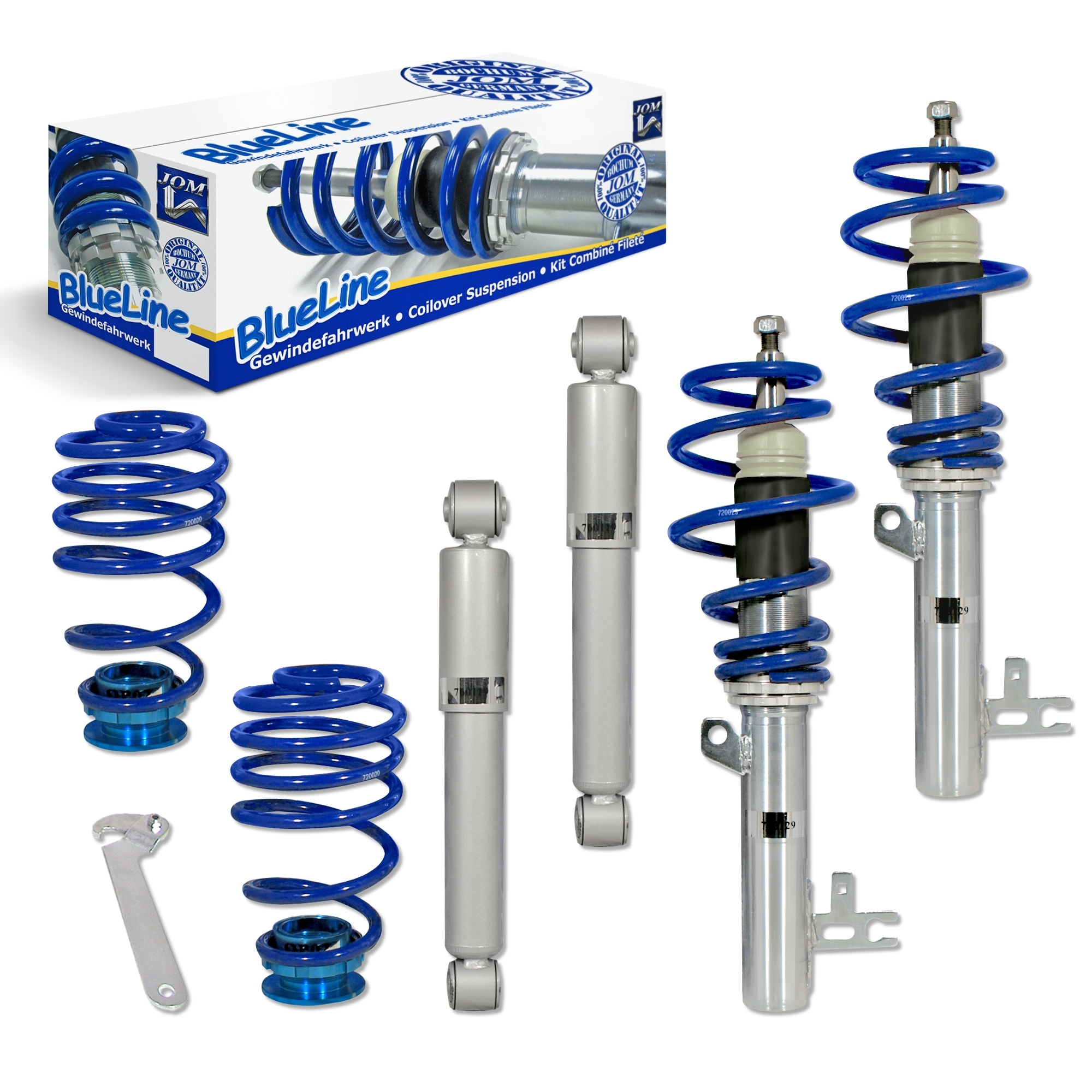

JOM BlueLine is the entry-level coilover range made in Germany by JOM. It lets you set the ride height to your liking and lower the car while retaining good driving characteristics. Built with galvanised dampers and EPS powder-coated cold-wound springs.
Compatibility
- Astra H 5-door 2004-2009
- Astra H 3-door GTC 2005-2010
- Astra H Caravan 2004-2010
- Astra H TwinTop 2006-2010
- Astra H Saloon 2006-2010
Restrictions
- models with adaptive suspension system (IDS)
Technical specifications
| Max. front axle load | 1070 kg |
| Max. rear axle load | 955 kg |
| Lowering range (front axle) | 30-50 mm |
| Lowering range (rear axle) | 5-25 mm |
| Min. wheel-to-arch distance (front) | 325mm |
| Min. wheel-to-arch distance (rear) | 330mm |
| Rear adjustment ring position | below |
Approval
§19.3 approved (TÜV Teilegutachten). Original TÜV document.
