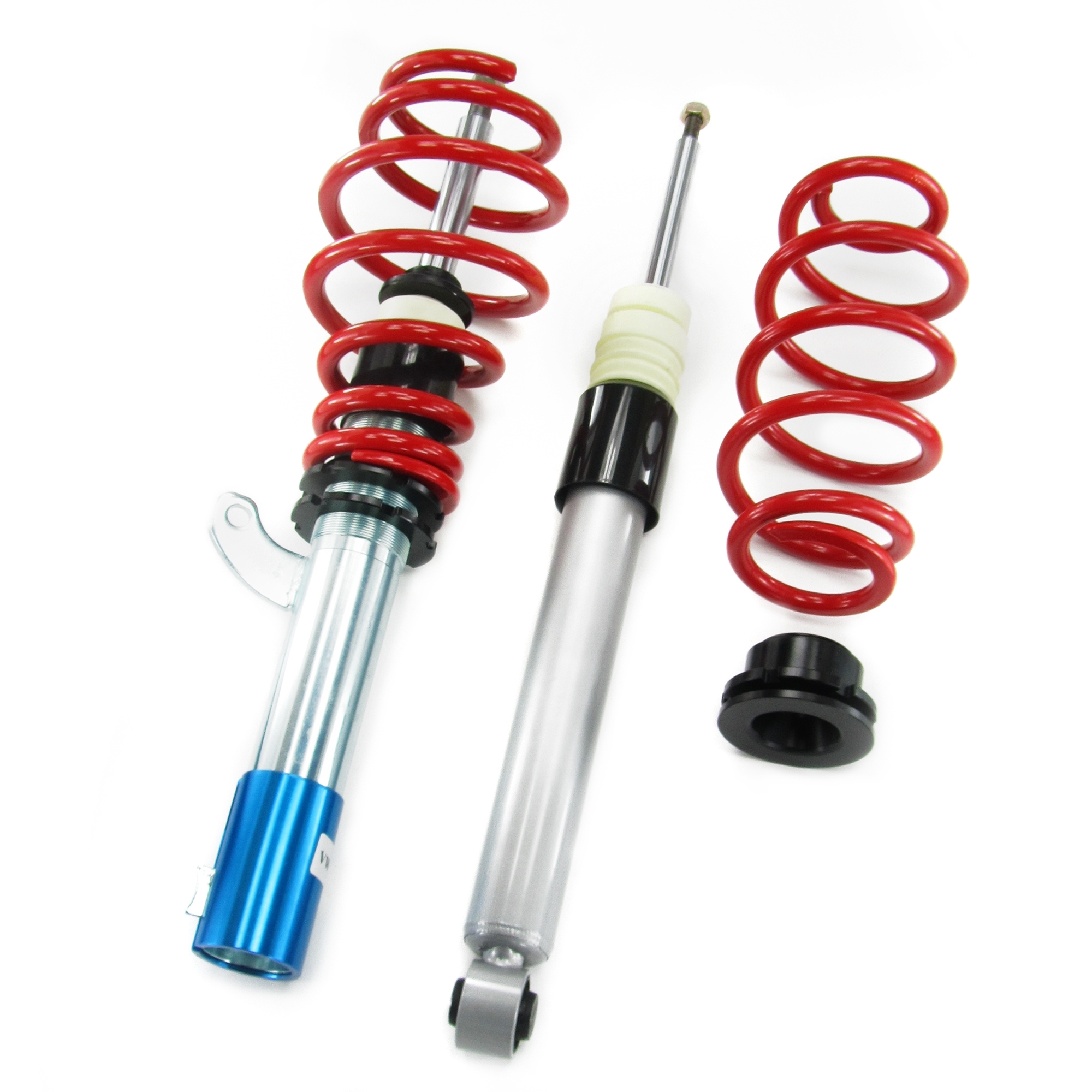

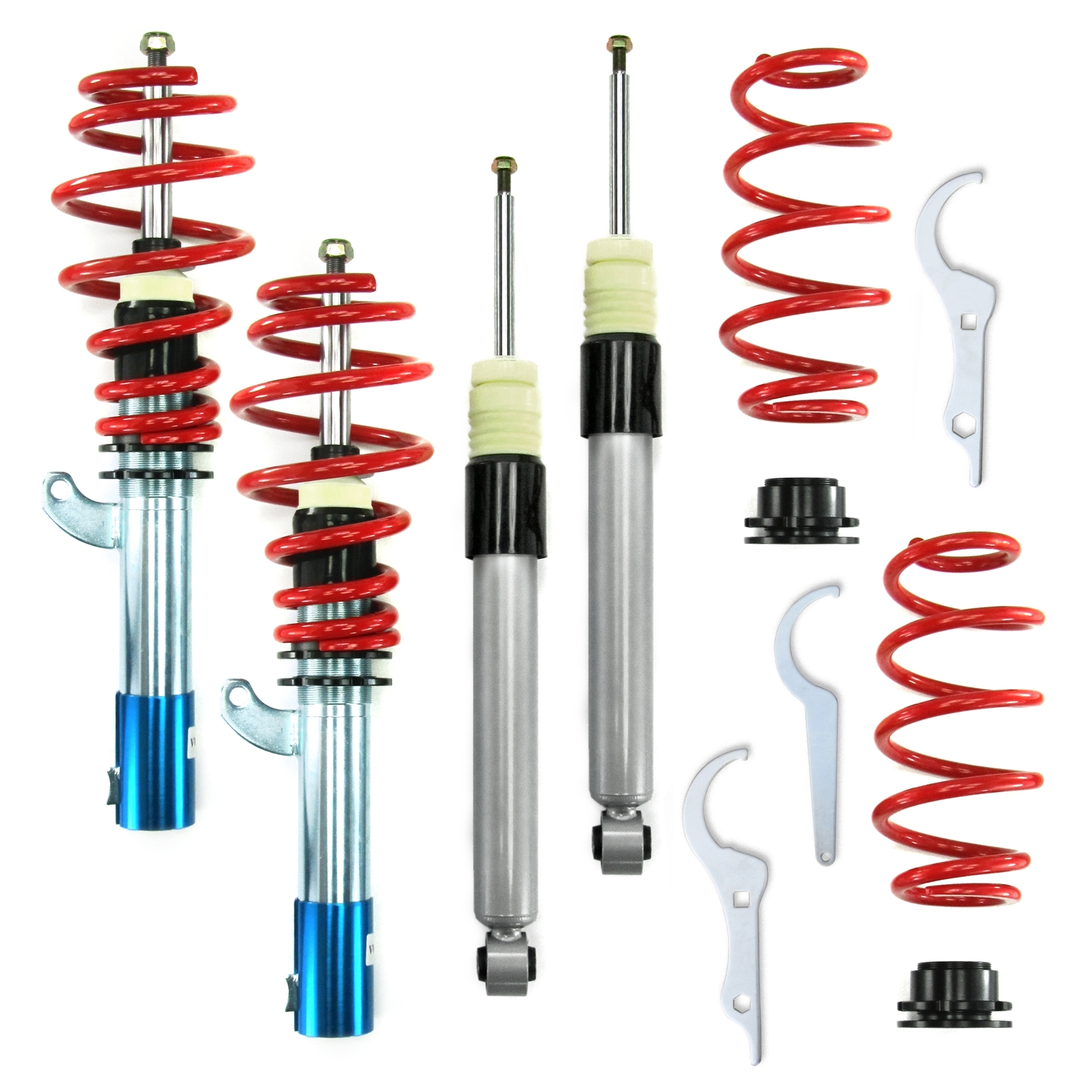

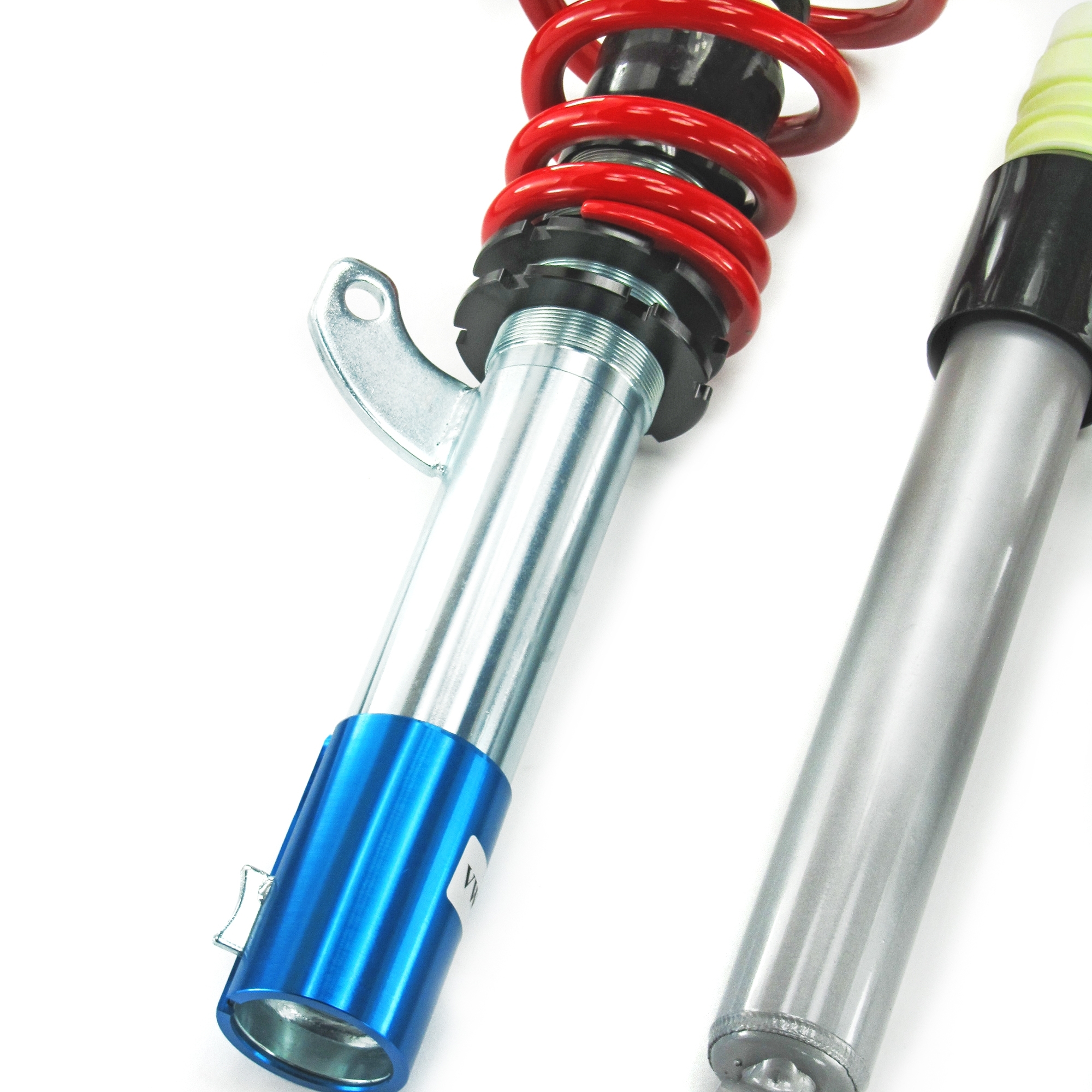

JOM Redline is the premium coilover range made in Germany by JOM. Compared to the BlueLine range it offers a more aggressive lowering range and more adjustment for anyone looking for sporty vehicle handling. Built with galvanised dampers and EPS powder-coated cold-wound springs.
Compatibility
- A3 Sportback (8PA) 2004-2012
- A3 Convertible (8P7) 2008-2013
- 1.2 TFSI, 1.4 TFSI, 1.6, 1.6 FSI
Technical specifications
| Max. front axle load | 1105 kg |
| Max. rear axle load | 1250 kg |
| Rear adjustment ring position | on top |
| Min. wheel-to-arch distance (front) | 340mm |
| Min. wheel-to-arch distance (rear) | 340mm |
Additional notes
Anti-roll bar end links are sold separately (#740225)
Strut bearings are sold separately:
Front axle (#740505)
Rear axle (#740511)
Approval
§19.3 approved (TÜV Teilegutachten). Original TÜV document ( — BlueLine equivalent).
