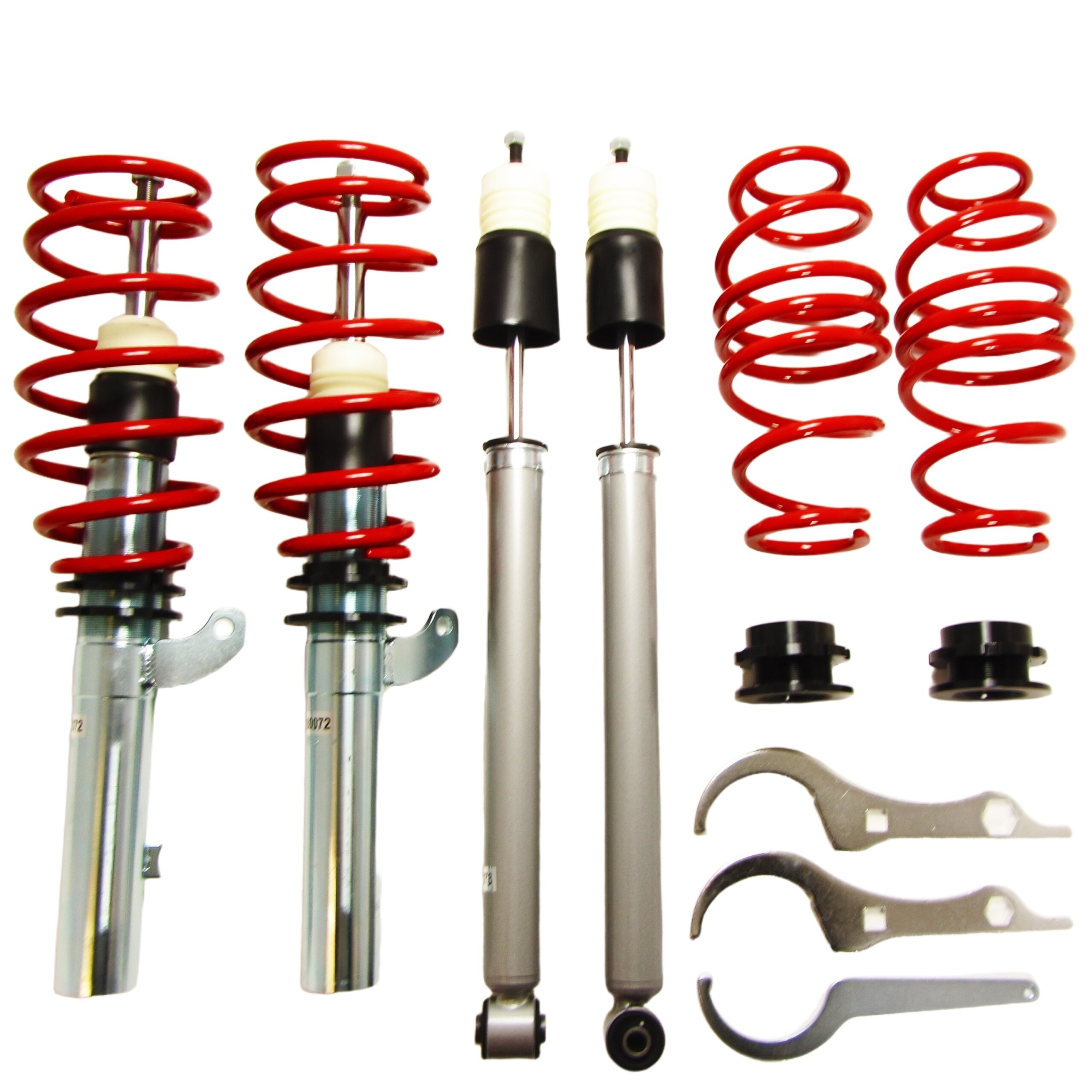

JOM Redline is the premium coilover range made in Germany by JOM. Compared to the BlueLine range it offers a more aggressive lowering range and more adjustment for anyone looking for sporty vehicle handling. Built with galvanised dampers and EPS powder-coated cold-wound springs.
Compatibility
- A3 8V1 2012-2016
- A3 8VK 2016-2020
- A3 8VA Sportback 2012-2016
- A3 8VF Sportback 2016-2020
- A3 8VS Saloon 2013-2016
- A3 8VM Saloon 2016-2020
- A3 8V7 Convertible 2014-2016
- A3 8VE Convertible 2016-2020
- Only for models with torsion beam rear axle and TFSI engine (max. 81 kW/110km)
Restrictions
- models with multi-link rear axle (+85 kW/116 hp) or TDI models
Technical specifications
| Lowering range (front axle) | 35-65 mm |
| Lowering range (rear axle) | 40-65 mm |
| Rear adjustment ring position | on top |
| Min. wheel-to-arch distance (front) | 320mm |
| Min. wheel-to-arch distance (rear) | 320mm |
Additional notes
The technically permitted load on each axle must be checked.
Approval
§19.3 approved (TÜV Teilegutachten). Original TÜV document ( — BlueLine equivalent).
