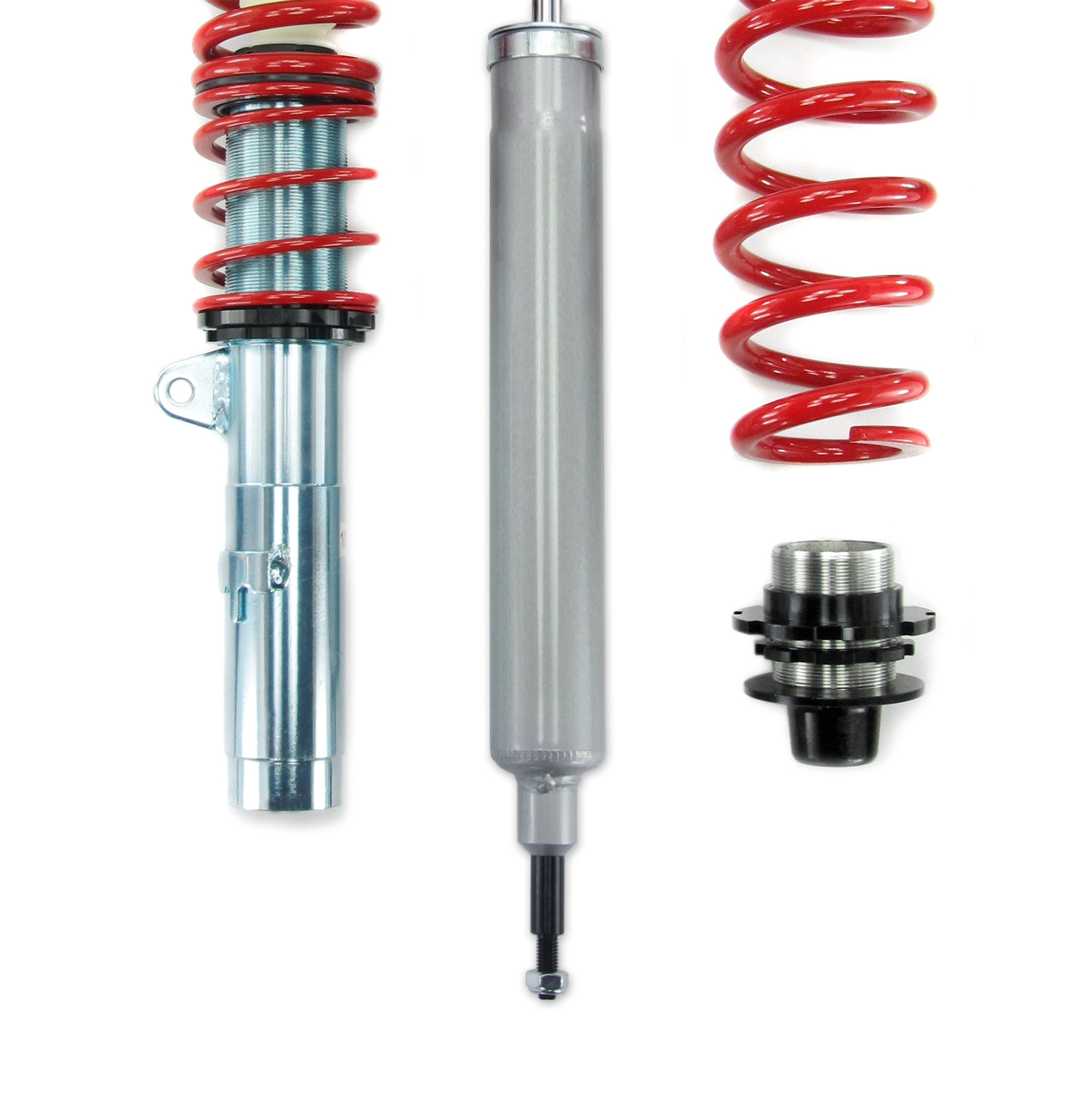

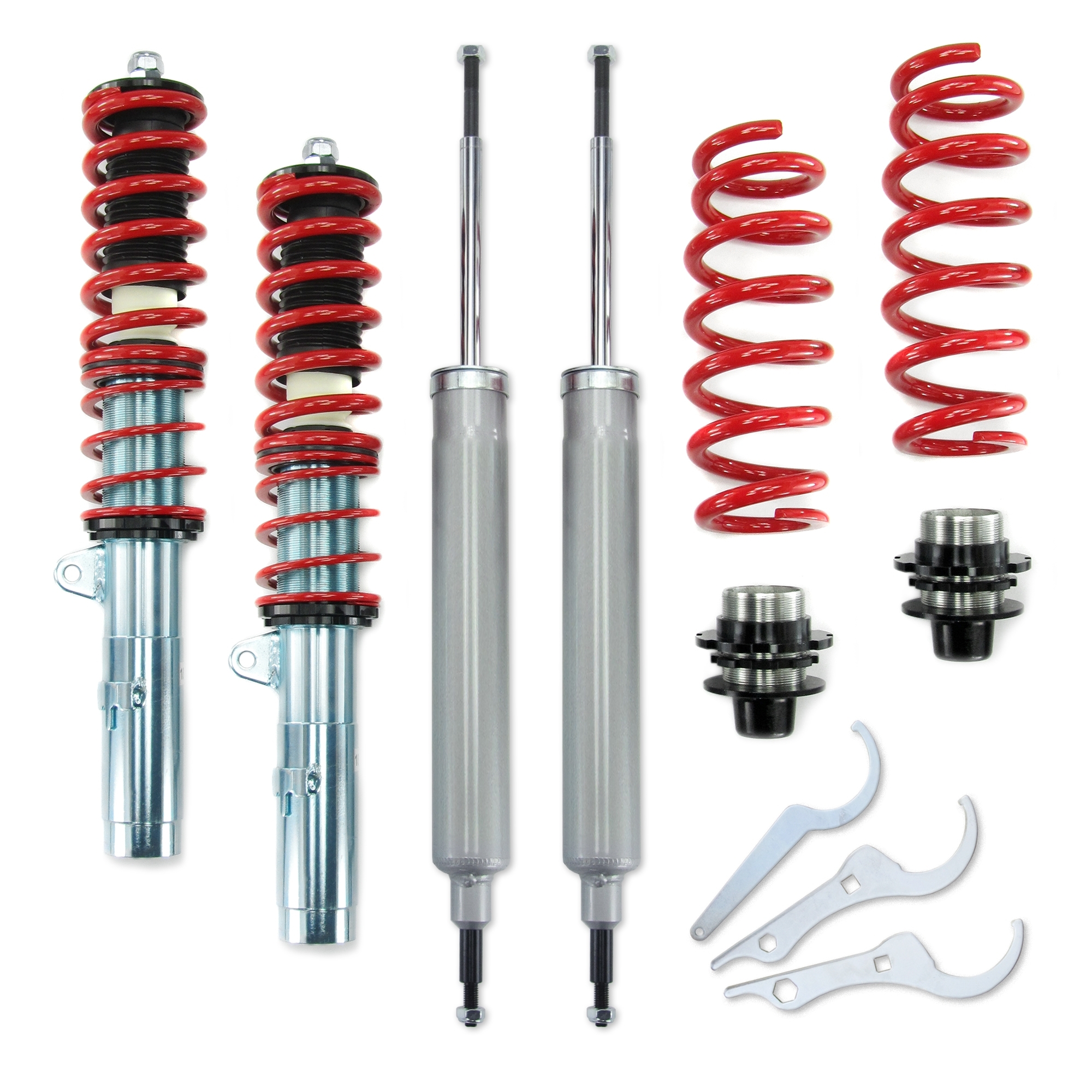

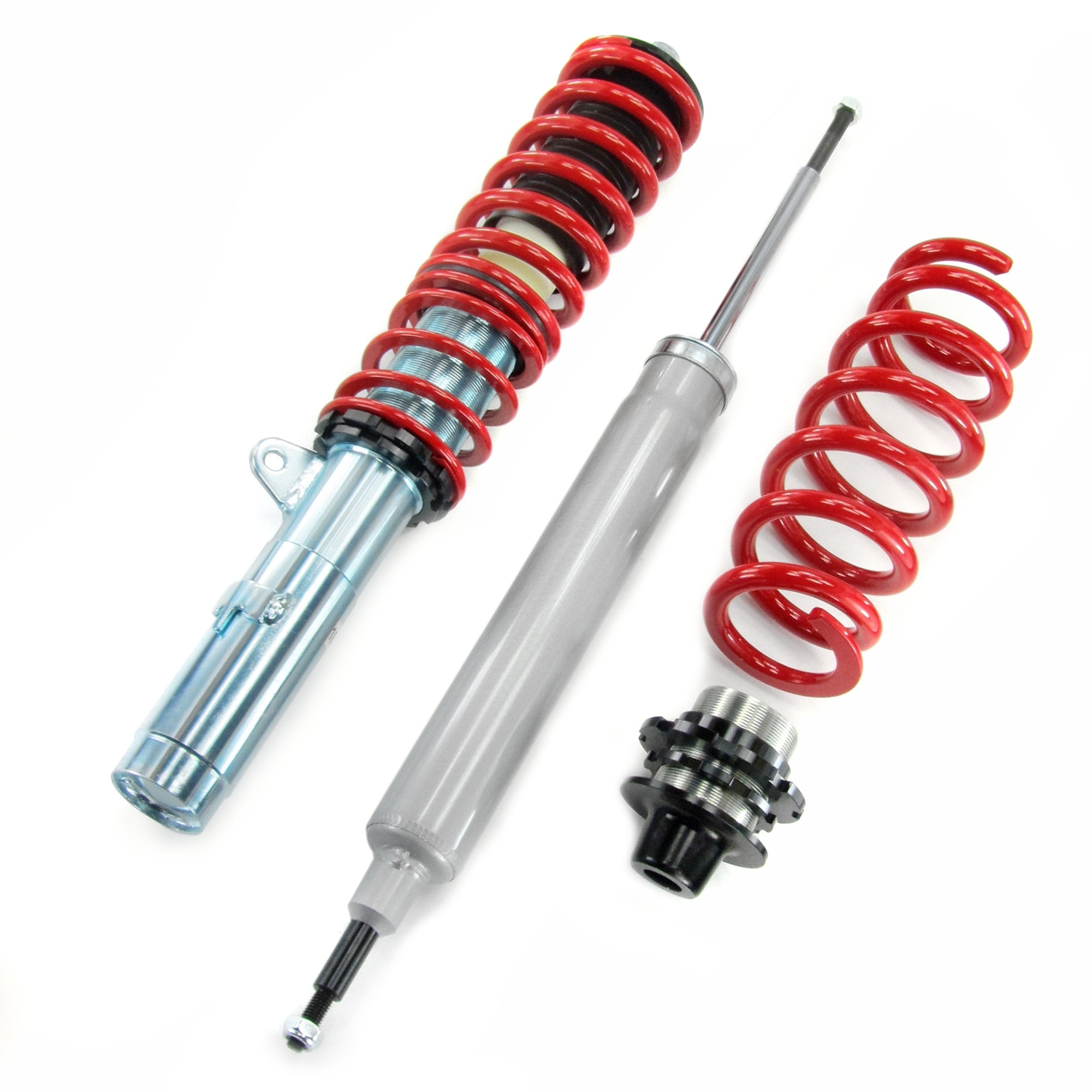

JOM Redline is the premium coilover range made in Germany by JOM. Compared to the BlueLine range it offers a more aggressive lowering range and more adjustment for anyone looking for sporty vehicle handling. Built with galvanised dampers and EPS powder-coated cold-wound springs.
Compatibility
- 3 Series E90 Saloon 2005-2011
- 3 Series E91 Touring 2005-2012
- 3 Series E92 Coupe 2006-2013
- 3 Series E93 Cabrio 2007-2013
- Only for rear-wheel-drive models
Restrictions
- Four-wheel-drive models (xDrive) & M3
Technical specifications
| Max. front axle load | 1020 kg |
| Max. rear axle load | 1315 kg |
| Rear adjustment ring position | on top |
| Min. wheel-to-arch distance (front) | 330mm |
| Min. wheel-to-arch distance (rear) | 330mm |
Additional notes
Anti-roll bar end links are sold separately (#740357)
Strut bearings are sold separately:
Front axle (#740507)
Approval
§19.3 approved (TÜV Teilegutachten). Original TÜV document ( — BlueLine equivalent).
