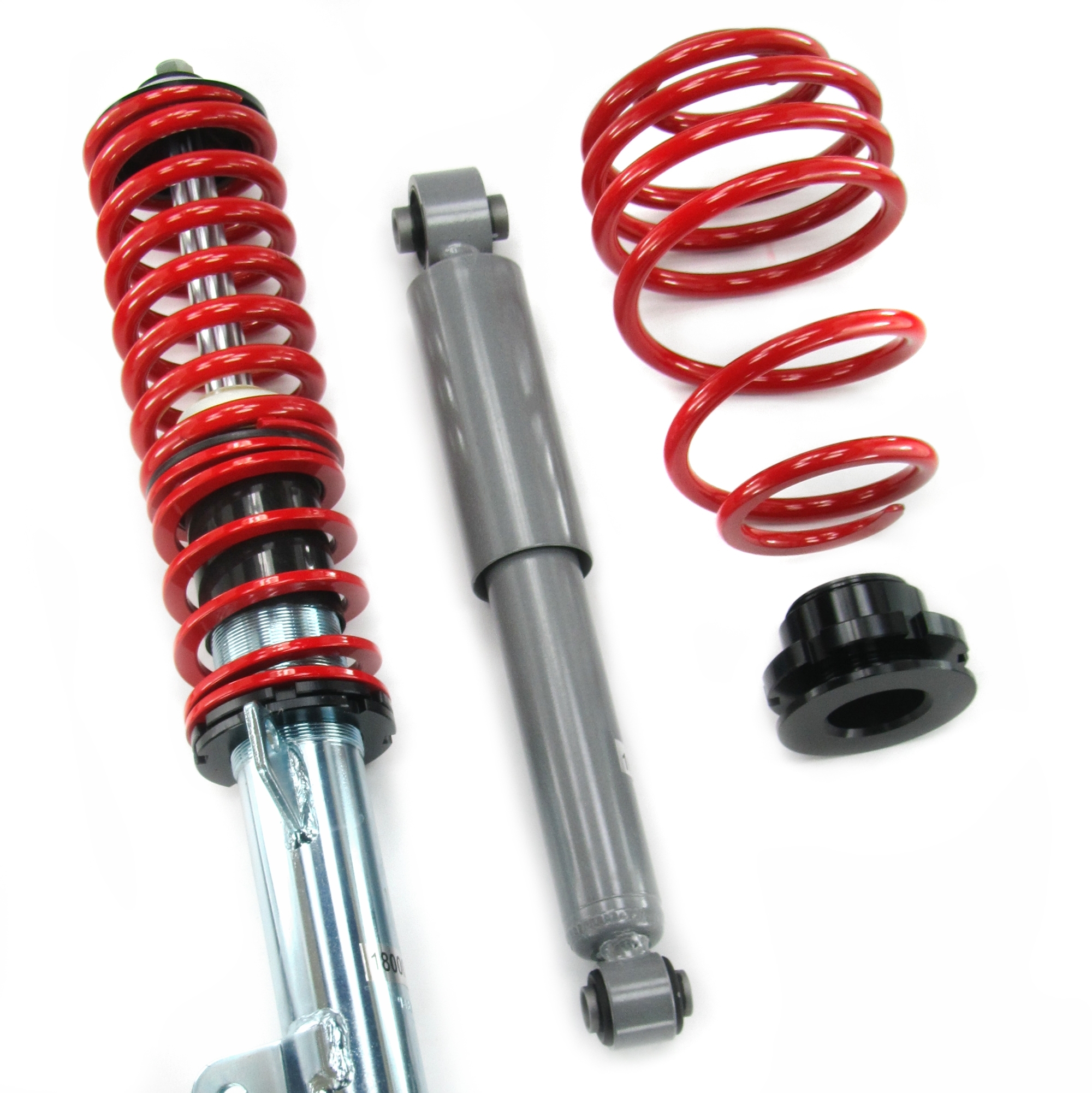

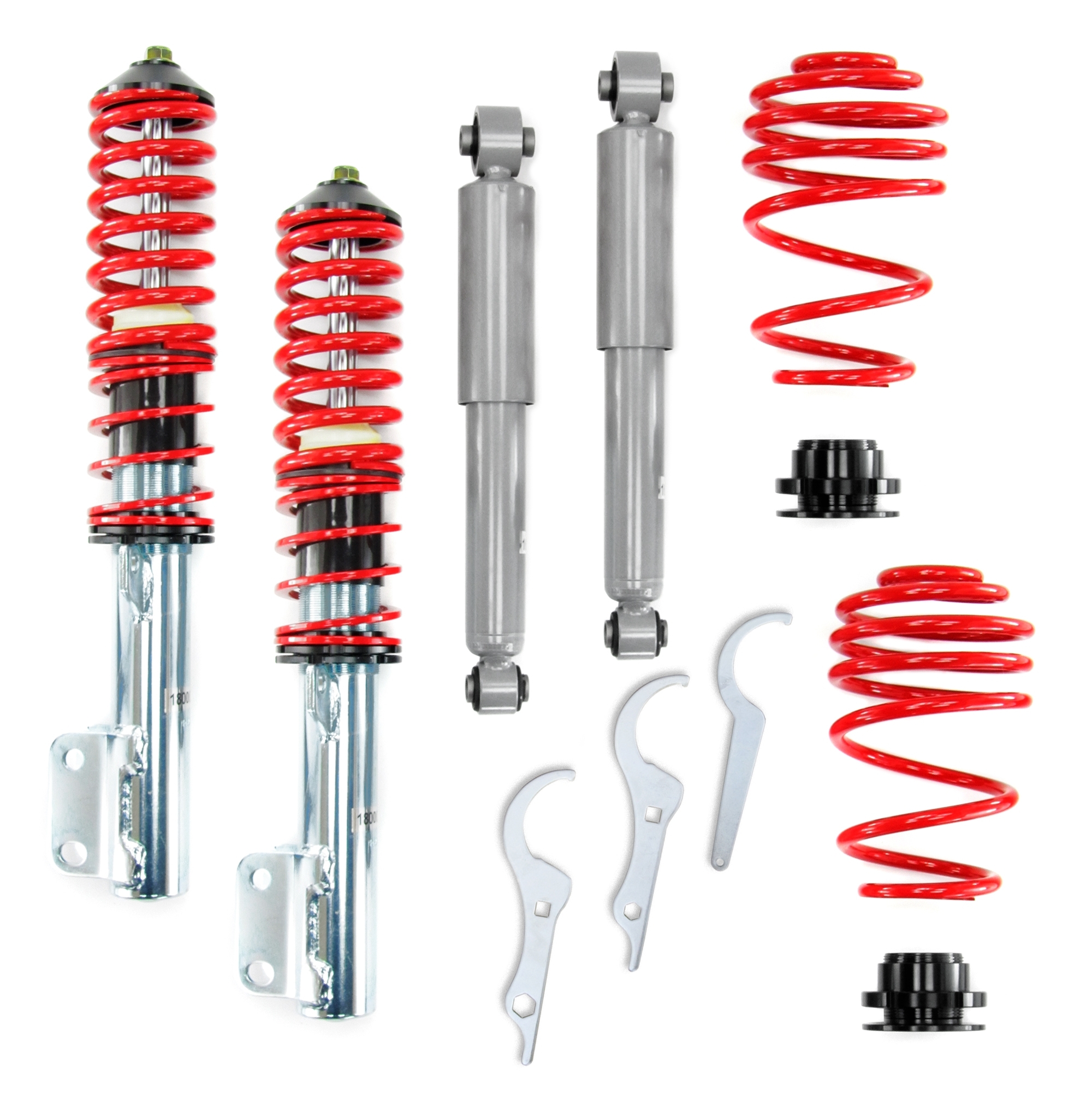

JOM Redline is the premium coilover range made in Germany by JOM. Compared to the BlueLine range it offers a more aggressive lowering range and more adjustment for anyone looking for sporty vehicle handling. Built with galvanised dampers and EPS powder-coated cold-wound springs.
Compatibility
- Astra G CC (T98) 1998-2004
- Astra G Saloon (T98/NB) 1998-2004
- Astra G Caravan (T98/Kombi) 1998-2004
- Astra G Coupe (T98C) 2000-2004
- Astra G Convertible (T98C) 2001-2005
Restrictions
- models OPC, GSi & 2.0 Turbo, & Van, Zafira A
Technical specifications
| Max. front axle load | 1040 kg |
| Max. rear axle load | 960 kg |
| Lowering range (front axle) | 30-60 mm |
| Lowering range (rear axle) | 30-60 mm |
| Rear adjustment ring position | below |
| Min. wheel-to-arch distance (front) | 330mm |
| Min. wheel-to-arch distance (rear) | 300mm |
Additional notes
Anti-roll bar end links are sold separately (#740229)
Approval
§19.3 approved (TÜV Teilegutachten). Original TÜV document ( — BlueLine equivalent).
