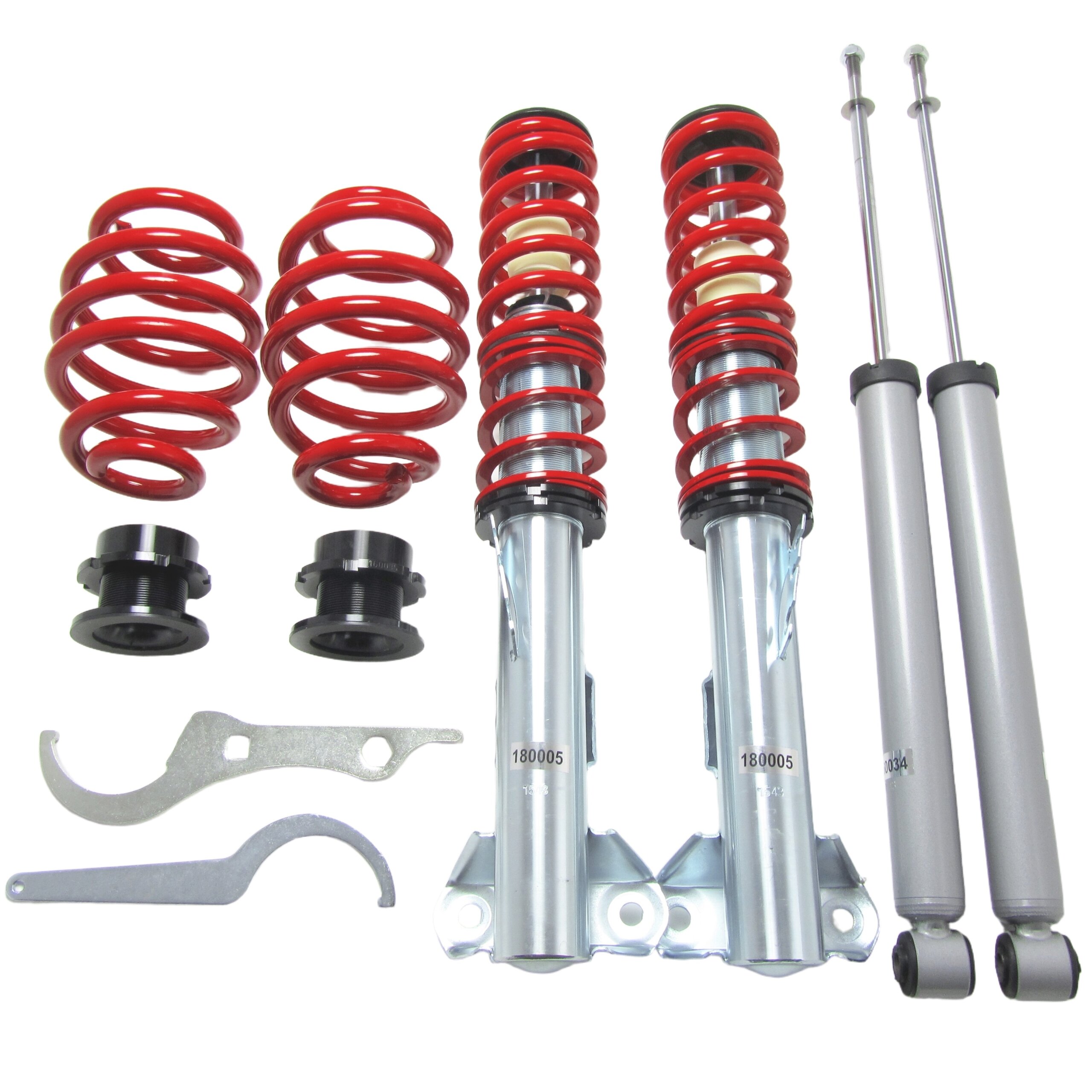

JOM Redline is the premium coilover range made in Germany by JOM. Compared to the BlueLine range it offers a more aggressive lowering range and more adjustment for anyone looking for sporty vehicle handling. Built with galvanised dampers and EPS powder-coated cold-wound springs.
Compatibility
- 3 Series E36 Saloon 1992-1998
- 3 Series E36 Touring 1995-1999
- 3 Series E36 Convertible 1994-1999
- 3 Series E36 Coupe 1992-1999
Restrictions
- Compact, M3, Z3 or 1990–1992 models where the drop links are mounted directly on the strut
Technical specifications
| Max. front axle load | 890 kg |
| Max. rear axle load | 1025 kg |
| Lowering range (front axle) | 40-80 mm |
| Lowering range (rear axle) | 30-60 mm |
| Rear adjustment ring position | on top |
| Min. wheel-to-arch distance (front) | 310mm |
| Min. wheel-to-arch distance (rear) | 300mm |
Additional notes
Strut bearings are sold separately:
Front axle (#740500)
Rear axle (#740508)
Approval
§19.3 approved (TÜV Teilegutachten). Original TÜV document ( — BlueLine equivalent).
